Запчасти Case IH 900 (9-174) - PRESS WHEEL DRIVE ROW UNIT, PLATE TYPE UNIT PLANTERS (09) - CHASSIS/ATTACHMENTS

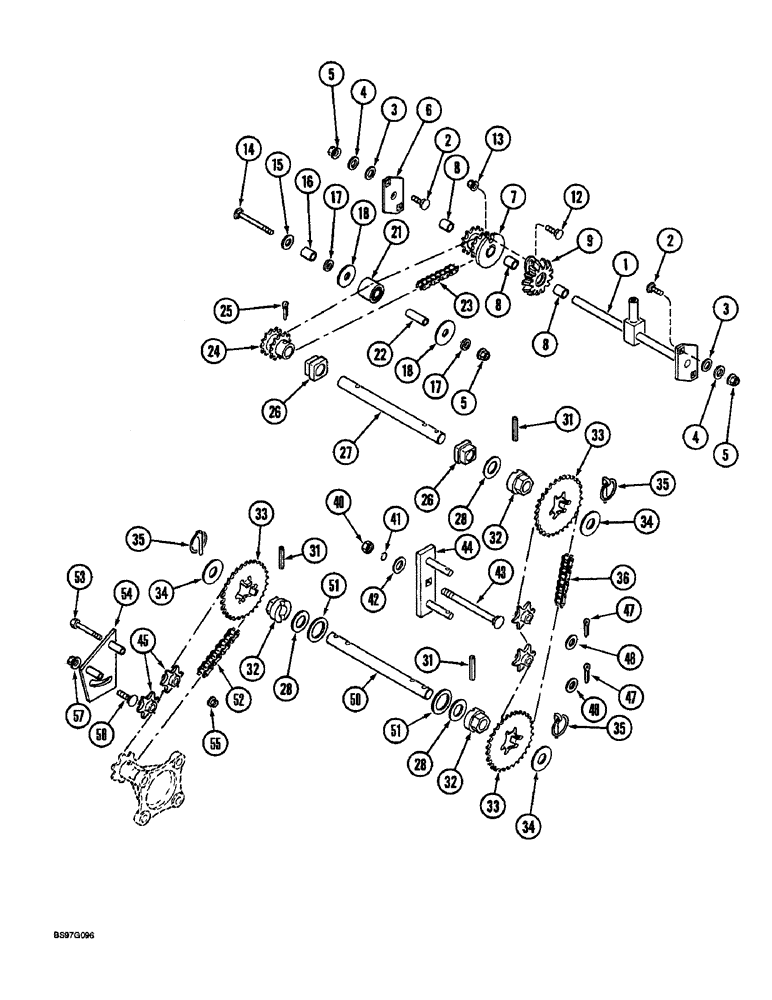

Схема запчастей Case IH 900 - (9-174) - PRESS WHEEL DRIVE ROW UNIT, PLATE TYPE UNIT PLANTERS (09) - CHASSIS/ATTACHMENTS
1
58
18
8
42
54
18
32
12
45
8
33
34
67
28
17
35
31
26
8
48
6
3
52
23
22
48
44
34
4
35
5
16
51
40
13
41
3
2
35
25
5
31
33
34
51
9
26
21
47
55
43
4
27
15
36
28
47
32
17
33
53
7
31
28
24
14
32
5
50
2

Артикул

Название

Примечание

Количество

1

140785C4

SHAFT

- ring gear

1шт.

2

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

3

495-81177

WASHER,21/32" x 1" x .030"

- flat, 21/32 x 1 x 1/32 inch

1шт.

4

495-81176

WASHER,21/32" x 1" x .060"

- flat, 21/32 x 1 x 3/64 inch

4шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

6

140788C1

PLATE ASSY.

PLATE - shaft support

1шт.

7

1279285C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - 12 teeth

1шт.

8

140904C1

BUSHING,15.88mm ID x mm OD x 19.05mm L

BUSHING - glide

2шт.

9

140907C1

GEAR

ASSEMBLY - drive pinion (Includes 1 of Ref. 8)

1шт.

12

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - carriage, 1/4 NC x 3/4 inch

1шт.

13

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

14

111-223

CARRIAGE BOLT,Short NK, 5/16"-18 x 3 1/4", G2

BOLT - carriage, 5/16 NC x 3-1/4 inch, grade 2

1шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

16

1254347C2

SPACER

- pivot

1шт.

17

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

2шт.

18

495-81166

WASHER,17/32" x 2" x .060"

Flat 17/32" x 2" x .060"

2шт.

21

57796C1

ROLLER

- chain tightener

1шт.

22

134288C1

SPACER

- roller

1шт.

23

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - hopper drive (Use 69 links from bulk chain 475879R91, 1 connecting link 241-2314, and 3 offset links 241-2714)

1шт.

475879R91

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-2314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

241-2714

LINK,12.7mm Pitch

LINK - offset, single pitch, No. 41, 1/2 inch pitch

1шт.

24

1254329C2

SPROCKET ASSY.

SPROCKET - drive, double, 12 tooth

1шт.

25

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

26

668999R1

BUSHING

BEARING - jackshaft

2шт.

27

1254322C1

PIN

JACKSHAFT - press wheel drive, upper

1шт.

28

VC649

WASHER

- flat

1шт.

31

19795R1

PIN,1/4" x 1 3/4", Coiled

3шт.

32

547955R1

HUB

- sprocket

3шт.

33

134234C1

SPROCKET ASSY.

SPROCKET - 16 tooth

1шт.

33

134235C1

SPROCKET ASSY.

SPROCKET - 20 tooth

1шт.

33

134236C1

SPROCKET ASSY.

SPROCKET - 22 tooth

1шт.

33

134237C1

SPROCKET ASSY.

SPROCKET - 24 tooth

1шт.

33

134238C1

SPROCKET ASSY.

SPROCKET - 28 tooth

1шт.

33

134239C1

SPROCKET ASSY.

SPROCKET - 30 tooth

2шт.

33

134240C1

SPROCKET ASSY.

SPROCKET - 32 tooth

2шт.

33

134241C1

SPROCKET ASSY.

SPROCKET - 34 tooth

1шт.

33

134242C1

SPROCKET ASSY.

SPROCKET - 36 tooth

1шт.

34

495-81062

WASHER,0.91" ID x 2" OD x 0.12" Thk

- flat, 29/32 x 2 x 7/64 inch

3шт.

35

A30338

PIN

- lock

3шт.

36

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - jackshaft drive (Use 39 links from bulk chain 569088R91, 1 roller link 242-118, 2 connecting links 1277927C91 and 2 offset links 242-178)

1шт.

569088R91

CHAIN (AG)

CHAIN - bulk, No. 2040, 10 foot roll

1шт.

242-118

LINK,Chain, 25.4mm Pitch

LINK - chain, roller

1шт.

1277927C91

LINK

- connecting

1шт.

242-178

LINK,25.4mm Pitch

LINK - offset, double pitch, No. 2040

1шт.

40

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

42

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

43

433-888

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5 1/2", Gr 5

BOLT - carriage, 1/2 NC x 5-1/2 inch

1шт.

44

90505C1

BAR

- chain idler

1шт.

45

472344R3

SPROCKET

- idler, 6 tooth

4шт.

46

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

47

432-1216

COTTER PIN,3/16" x 1"

2шт.

50

1254323C2

SHAFT

- press wheel drive, and pivot

1шт.

51

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 3/64 inch

4шт.

52

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - plate drive (Use 43 links from bulk chain 569088R91, 1 connecting link 1277927C91, and 1 offset link 242-178)

1шт.

569088R91

CHAIN (AG)

CHAIN - bulk, No. 2040, 10 foot roll

1шт.

1277927C91

LINK

- connecting

1шт.

242-178

LINK,25.4mm Pitch

LINK - offset, double pitch, No. 2040

1шт.

53

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

54

1254344C1

ARM

- tightener plate

1шт.

55

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

56

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

57

231-5146

FLANGE NUT,3/8"-16

1шт.

Выбрано товаров: 64
