Запчасти Case IH 900 (9-170) - PLATE PLANTING UNIT, CYCLO AIR PLANTERS, SEED GROWERS SPECIAL PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS

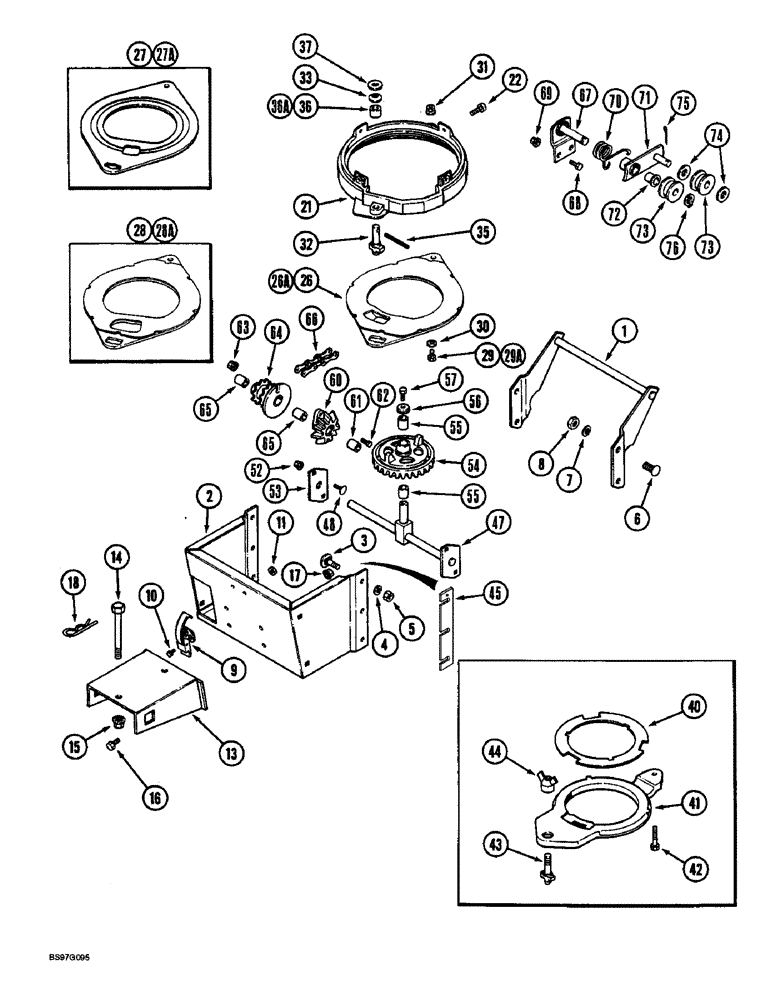

Схема запчастей Case IH 900 - (9-170) - PLATE PLANTING UNIT, CYCLO AIR PLANTERS, SEED GROWERS SPECIAL PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS
68
73
1
3
27
13
21
64
36a
7
11
33
27a
6
54
71
44
2
35
57
55
17
43
29a
28a
74
5
56
9
60
32
14
30
67
16
61
42
70
29
62
10
26a
72
45
55
41
4
47
76
73
66
63
65
65
40
69
53
15
36
52
28
26
18
75
37
8
48
31
22

Артикул

Название

Примечание

Количество

1

1279963C1

SUPPORT

- seed hopper

1шт.

2

1279964C2

SUPPORT ASSY.

SUPPORT - plate unit

1шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

6шт.

4

492-11038

LOCK WASHER,3/8"

6шт.

5

425-106

NUT,3/8"-16, Cl 5

6шт.

6

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

9

1333780C1

LATCH

- hinge

1шт.

10

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- hex flange, No. 10 NC x 1/2 inch

2шт.

11

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

13

1254319C2

BRACKET

- jackshaft support (Press wheel drive row unit only)

1шт.

14

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

1шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

18

1978738C1

HAIR PIN COTTER

3/16" (Press wheel drive row unit only)

1шт.

21

134343C1

RING

- hopper bottom

1шт.

22

1338233C1

SERRATED SCREW,Cross Rec Truss Hd, 5/16" - 18 x 1"

4шт.

26

1345107C1

LARGE PLATE

PLATE - hopper bottom, corn and other seed, for service use (1) item 26A, 1344847C1 Plate, (1) item 36A, 1344850C1 Spacer, and (1) item 29A, 413-624 Bolt

1шт.

26a

1344847C1

LARGE PLATE

PLATE - hopper bottom, corn and other seed, used with item 36A, 1344850C1 Spacer and item 29A, 413-624 Bolt

1шт.

27

147214C2

PLATE

- hopper bottom, large corn, for service use (1) item 27A, 1344848C1 Plate, (1) item 36A 1344850C1 Spacer, and (1) item 29A, 413-624 Bolt

1шт.

27a

1344848C1

PLATE

- hopper bottom, large corn, used with item 36A, 1344850C1 Spacer and item 29A, 413-624 Bolt

1шт.

28

1345108C1

LARGE PLATE

PLATE - hopper bottom, cotton and peanut, for service use (1) item 28A, 1344849C1 Plate, (1) item 36A, 1344850C1 Spacer, and (1) item 29A, 413-624 bolt

1шт.

28a

1344849C1

LARGE PLATE

PLATE - hopper bottom, cotton and peanut, used with item 36A, 1344850C1 Spacer, and (1) item 29A, 413-624 Bolt

1шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, used with hopper bottom Plate, items 26, 27, and 28, if used

1шт.

29a

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, used with hopper bottom Plate, items 26A, 27A, and 28A, if used

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

31

147275C1

NUT

- hex flange, self-locking, 3/8 inch NC

1шт.

32

147216C2

PIN

- locating

1шт.

33

1333763C1

SPRING WASHER

- special, spring

1шт.

35

438-11240

LOCK PIN,3/16" x 2 1/2", Slotted

Pin, 3/16" x 2 1/2", Slotted

1шт.

36

1333886C1

SPACER

- hopper bottom latch, used with hopper bottom Plate, items 26, 27, and 28, if used

1шт.

36a

1344850C1

SPACER

- hopper bottom latch, used with hopper bottom Plate, items 26A, 27A, and 28A, if used

1шт.

37

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

40

464256R2

WASHER

SHIM - filler ring (Beet planting)

1шт.

41

1279042C1

PLATE

- hopper bottom (Beet planting)

1шт.

42

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

43

1279048C1

LOCK BOLT,1/2" - 13 x 67mm

BOLT - locating (Beet planting)

1шт.

44

1279201C1

NUT

- locking (Beet planting)

1шт.

45

1345171C1

SHIM

- press wheel drive

1шт.

47

140785C4

SHAFT

- ring gear

1шт.

48

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

495-81177

WASHER,21/32" x 1" x .030"

- flat, 21/32 x 1 x 1/32 inch

1шт.

495-81176

WASHER,21/32" x 1" x .060"

- flat, 21/32 x 1 x 3/64 inch

4шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

53

140788C1

PLATE ASSY.

PLATE - shaft support

1шт.

54

140927C2

GEAR

ASSEMBLY - ring

1шт.

55

140904C1

BUSHING,15.88mm ID x mm OD x 19.05mm L

BUSHING - fiber

2шт.

56

136975C2

WASHER

- special

1шт.

57

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

60

140907C1

GEAR

ASSEMBLY - drive pinion

1шт.

61

140904C1

BUSHING,15.88mm ID x mm OD x 19.05mm L

BUSHING - fiber

1шт.

62

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - carriage, 1/4 NC x 3/4 inch

1шт.

63

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

64

1279285C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - 12 teeth

1шт.

65

140904C1

BUSHING,15.88mm ID x mm OD x 19.05mm L

BUSHING - fiber

2шт.

66

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive (Use 61 links from bulk chain 475879R91, and 1 connecting link 241-2314)

1шт.

475879R91

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-2314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

67

1277838C1

LEVER

ARM - tightener

1шт.

68

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

69

231-5146

FLANGE NUT,3/8"-16

2шт.

70

1277854C2

SPRING

- idler

1шт.

71

1277658C1

LEVER

IDLER - arm

1шт.

72

1277785C1

BUSHING,15.9mm ID x 17.45mm OD x 28.57mm L

- idler

1шт.

73

1277653C1

IDLER

ROLLER - idler

2шт.

74

495-81182

WASHER,21/32" x 1 1/4" x .060"

- flat, 21/32 x 1-1/4 x 3/64 inch

2шт.

75

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

76

100-1662

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

Выбрано товаров: 70
