(9-168) - ROW UNIT FRAME, PLATE TYPE UNIT PLANTER WITH PRESS WHEEL DRIVE ROW UNITS

Запчасти Case IH 900 (9-168) - ROW UNIT FRAME, PLATE TYPE UNIT PLANTER WITH PRESS WHEEL DRIVE ROW UNITS (09) - CHASSIS/ATTACHMENTS

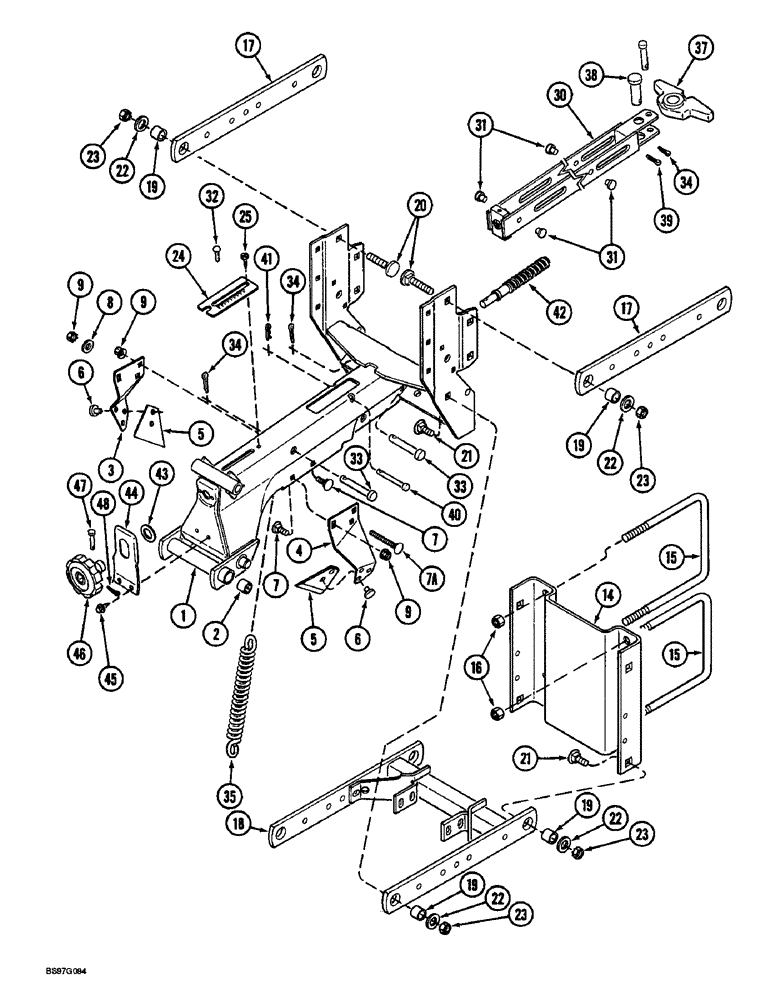

Схема запчастей Case IH 900 - (9-168) - ROW UNIT FRAME, PLATE TYPE UNIT PLANTER WITH PRESS WHEEL DRIVE ROW UNITS (09) - CHASSIS/ATTACHMENTS
22
3
6
47
16
32
17
41
39
24
22
19
21
6
15
22
44
22
15
30
4
46
33
42
2
19
40
14
31
43
7
1
7
23
48
35
23
21
9
5
17
25
34
31
18
9
8
7a
9
34
19
5
45
20
19
33
37
34
23
38
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1547309C2

FRAME ASSY

FRAME ASSEMBLY - planter unit

1шт.

2

378699R1

BUSHING,22.25mm ID x 25.43mm OD x 22.35mm L

- pivot, bronze

2шт.

3

147436C94

SCRAPER

ASSEMBLY - disc (Includes Ref. 4 and 5)

1шт.

4

1978897C2

SCRAPER

ASSEMBLY - disc (Replaces 147439C93)

1шт.

5

147438C2

HALF BLADE

BLADE - scraper

1шт.

6

147274C1

RIVET,4.78mm OD x 10mm L

- special, 3/16 x 3/8 inch

2шт.

7

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

BOLT - carriage, 5/16 NC x 5/8 inch

4шт.

7a

433-544

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 5

BOLT - carriage, 5/16 NC x 2-3/4 inch

1шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

9

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

14

141728C3

CHANNEL

SUPPORT - head bracket

1шт.

15

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

- 5/8 inch NC, 5 x 7 inch

2шт.

16

425-1010

NUT,5/8"-11, G5

4шт.

17

137507C3

BAR

BRACKET - linkage, lower

2шт.

18

147354C2

SUPPORT

- linkage, lower

1шт.

19

137512C3

BUSHING,13.5mm ID x 22.23mm OD x 13.5mm L

- 13.5 x 22.2 x 13.5 mm, linkage pivot

8шт.

20

1279075C1

CARRIAGE BOLT,Flat Hd, Sq Nk, 1/2" - 13 x 2", Type 5

BOLT - flat head square neck

2шт.

21

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

6шт.

22

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

8шт.

23

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

8шт.

24

147326C2

GAUGE

- depth

1шт.

25

187-1067

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

2шт.

30

147276C4

BAR

- tension

1шт.

31

147483C1

PLUG

- button

4шт.

32

1277597C1

STUD

- barbed, No. 12 x 3/4 inch

1шт.

33

439-5844

HEADED PIN,1/2" x 2 3/4", G5

PIN - headed, 1/2 x 2-3/4 inch

2шт.

34

432-1216

COTTER PIN,3/16" x 1"

3шт.

35

147425C5

SPRING

- press wheel

1шт.

36

439-1824

HEADED PIN,1/2" x 1 1/2", G2

PIN - headed, 1/2 x 1-1/2 inch, grade 2

1шт.

37

1279508C1

BRACKET

- wobble

1шт.

38

427-12179

CLEVIS PIN,3/4" x 1.796"

PIN - clevis, 3/4 x 1-13/16 inch, hardened

1шт.

39

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

40

147310C1

HEADED PIN,6.35mm OD x 69.85mm L

PIN - pointed, 1/4 x 2-3/4 inch

1шт.

41

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

42

1279684C1

ROD

- depth adjusting

1шт.

43

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

1шт.

44

1279107C1

STRAP

COVER - detent

1шт.

45

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10 NC x 1/2 inch

2шт.

46

1279740C91

KNOB

- detent, depth adjusting

1шт.

47

439-5420

HEADED PIN,1/4" x 1 1/4", G5

PIN - headed, 1/4 x 1-1/4 inch

1шт.

48

432-88

COTTER PIN,1/8" x 1/2"

PIN, SPLIT (COTTER), 1/8" x 1/2"

1шт.
