Запчасти Case IH 900 (9-160) - BLANK SEED PLATES, MISCELLANEOUS PLATES (09) - CHASSIS/ATTACHMENTS

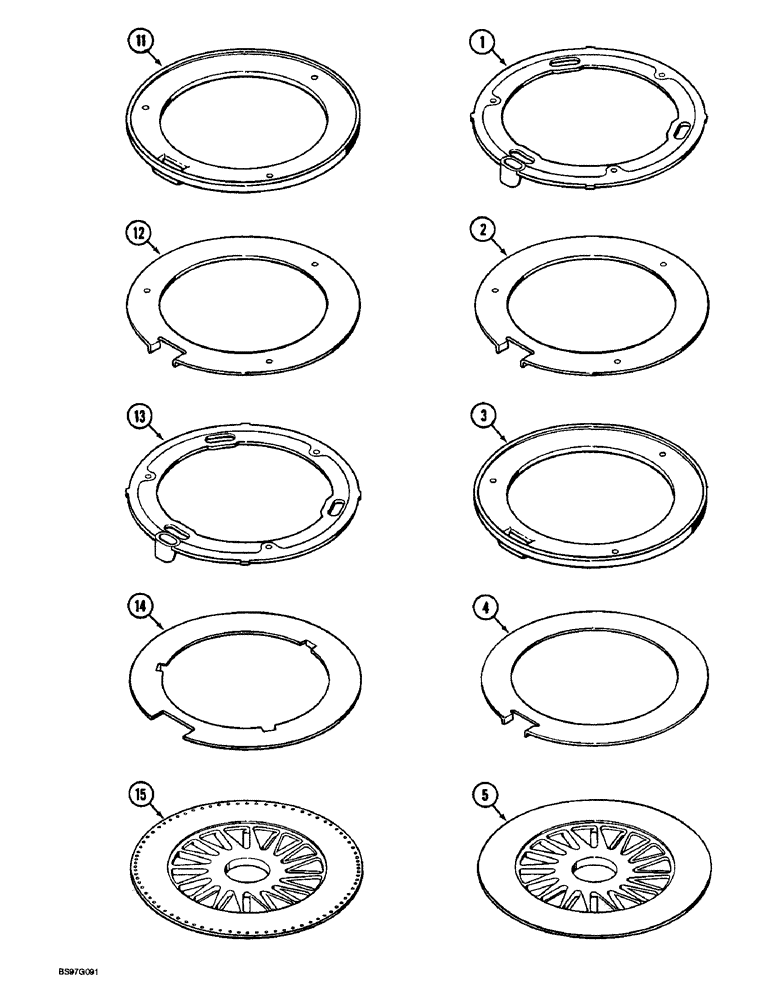

Схема запчастей Case IH 900 - (9-160) - BLANK SEED PLATES, MISCELLANEOUS PLATES (09) - CHASSIS/ATTACHMENTS
12
5
1
15
14
2
11
3
4
13

Артикул

Название

Примечание

Количество

1

621978R41

RING

- filler

1шт.

2

43288A

RING

- filler

1шт.

3

3447ABX

RING

- filler

1шт.

4

13870A

DISC

RING - filler, standard

1шт.

5

626485R1

PLATE

- seed, 5/64 inch thick (Requires 621978R41 or 43288A filler ring)

1шт.

5

3544A

PLATE

- seed, 8/64 inch thick (Requires 3447ABX filler ring)

1шт.

5

3099A

PLATE

- seed, 9/64 inch thick (Diameter drilled as required) (Requires 621978R41 or 43288A filler ring)

1шт.

5

1852AA

DISC

PLATE - seed, 12/64 inch thick (Requires 13870A filler ring)

1шт.

5

621050R1

LARGE PLATE

PLATE - seed, 16/64 inch thick

1шт.

5

3045AA

PLATE

- seed, 20/64 inch thick

1шт.

11

3447ABX

RING

- filler (Used with 3544A plate), vegatable & small seed

1шт.

12

43288A

RING

- filler (Used with 3099A plate), vegatable & small seed

1шт.

13

621978R41

RING

- filler (Used with 463426R1 plate), vegatable & small seed

1шт.

14

464256R2

WASHER

SHIM - filler ring (Used with 463426R1 plate), vegatable & small seed

1шт.

15

3544A

PLATE

- seed, 8/64 inch thick, 32cell, 0.109 inch cell, turnip, vegatable & small

1шт.

15

3544A

PLATE

- seed, 8/64 inch thick, 40 cell, 0.125 inch cell, spinach, vegatable & small

1шт.

15

3544A

PLATE

- seed, 8/64 inch thick, 40 cell, 0.125 inch cell, cabbage, vegatable & small

1шт.

15

3544A

PLATE

- seed, 8/64 inch thick, 40 cell, 0.125 inch cell, carrots, vegatable & small

1шт.

15

3544A

PLATE

- seed, 8/64 inch thick, 40 cell, 0.125 inch cell, lettuce, vegatable & small

1шт.

15

3544A

PLATE

- seed, 8/64 inch thick, 40 cell, 0.125 inch cell, onion, vegatable & small

1шт.

15

463426R1

PLATE

- seed, 0.125 diameter x 0.080 inch thick, 82 cell, onion (Pre-drilled), vegatable & small

1шт.

15

3544A

PLATE

- seed, 8/64 inch thick, 40 cell, 0.136 inch cell, mustard, vegatable & small

1шт.

15

3544A

PLATE

- seed, 8/64 inch thick, 40 cell, 0.156 inch cell, sesame, vegatable & small

1шт.

15

3544A

PLATE

- seed, 8/64 inch thick, 40 cell, 0.172 inch cell, radish, vegatable & small

1шт.

15

3099A

PLATE

- seed, 9/64 inch thick (Diameter drilled as required), 64 cell, 0.219 inch cell, beet, vegatable & small

1шт.

15

3544A

PLATE

- seed, 8/64 inch thick, 16 cell, 0.250 inch cell, broccoli, vegatable & small

1шт.

15

3544A

PLATE

- seed, 8/64 inch thick, 40 cell, 0.250 inch cell, parsnip, vegatable & small

1шт.

Выбрано товаров: 27
