Запчасти Case IH 900 (9-156) - SEED PLATES, 40 CELL (09) - CHASSIS/ATTACHMENTS

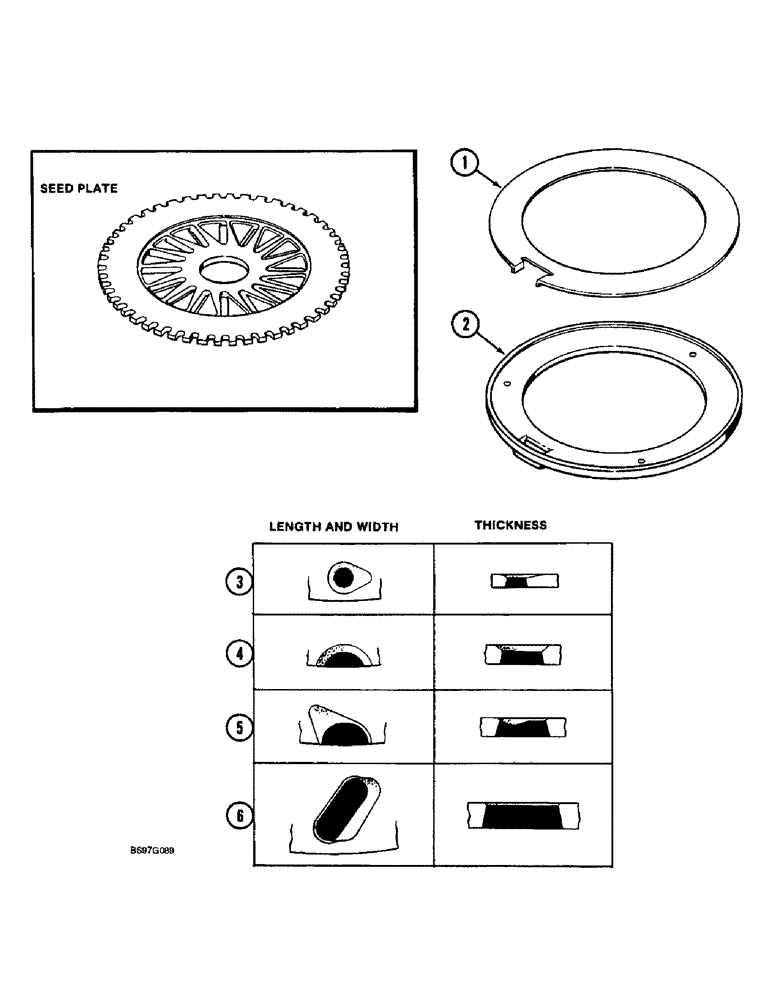

Схема запчастей Case IH 900 - (9-156) - SEED PLATES, 40 CELL (09) - CHASSIS/ATTACHMENTS
5
4
1
2
6
3

Артикул

Название

Примечание

Количество

1

13870A

DISC

RING - filler, standard

1шт.

2

3447ABX

RING

- filler

1шт.

3

3559A

PLATE

- seed, 40 cell iron, 12/64 x 12/64 x 0.131 inch, sorghum, milo and fine seed,(Requires 484878R12 special pointed knock-out pawl and 3447ABX filler ring)

1шт.

4

483022R1

PLATE ASSY.

PLATE - seed, 40 cell plastic, 25/64 x 10/64 x 12/64 inch, milo, (Requires 13870A filler ring)

1шт.

5

622240R2

PLATE ASSY.

PLATE - seed, 40 cell iron, 29/64 x 14/64 x 12/64 inch, acid delinted cotton, (Requires 13870A filler ring)

1шт.

6

3638A

PLATE

- seed, 40 cell iron, 44/64 x 16/64 x 16/64 inch, soybeans

1шт.

Выбрано товаров: 6
