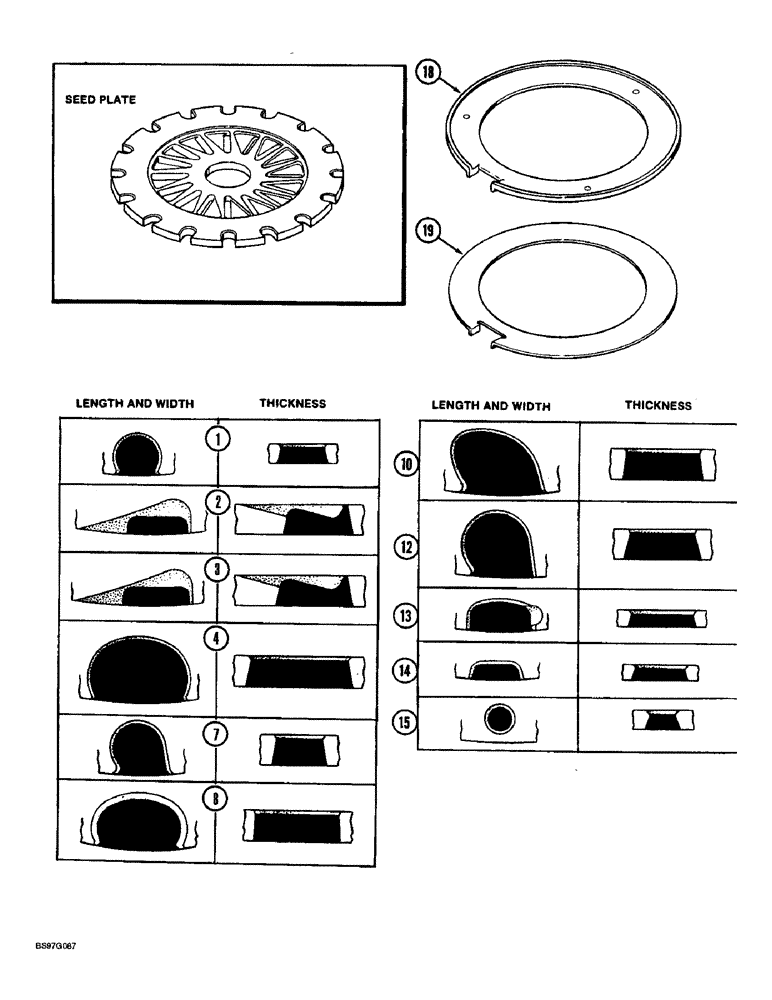

Запчасти Case IH 900 (9-152[1]) - 16 CELL (09) - CHASSIS/ATTACHMENTS

1

3351AA

LARGE PLATE

PLATE - seed, 12 cell iron, 28/64 x 28/64 x 12/64 inch, corn

1шт.

2

3091A

PLATE

- seed, 12 cell, 40/64 x 12/64 x 20/64 inch, corn

1шт.

3

3092A

PLATE

- seed, 12 cell, 44/64 x 13/64 x 20/64 inch, corn

1шт.

4

1972A

PLATE

- seed, 12 cell, 64/64 x 13/64 x 20/64 inch, Mexican beans

1шт.

7

3104A

PLATE

- seed, 16 cell, 33/64 x 33/64 x 20/64 inch, beans

1шт.

8

1891A

PLATE

- seed, 16 cell, 56/64 x 34/64 x 20/64 inch, beans

1шт.

10

3142A

PLATE

- seed, 16 cell, 48/64 x 40/64 x 20/64 inch, kidney beans

1шт.

12

3106A

PLATE

- seed, 16 cell, 42/64 x 42/64 x 20/64 inch, lima beans

1шт.

13

3143A

WEAR PLATE

PLATE - seed, 16 cell, 40/64 x 20/64 x 10/64 inch, sunflowers, (Requires 13870A filler ring and 464256R2 shim plate)

1шт.

14

1903A

PLATE

- seed, 16 cell, 32/64 x 10/64 x 10/64 inch, melon and cucumbers

1шт.

15

1901A

PLATE

- seed, 16 cell iron, 16/64 x 16/64 x 12/64 inch, kaffir and small seeds (Requires 484878R12 special pointed knock-out pawl and 1902ABX ring)

1шт.

18

1902ABX

RING

- filler

1шт.

19

13870A

DISC

RING - filler, standard

1шт.
