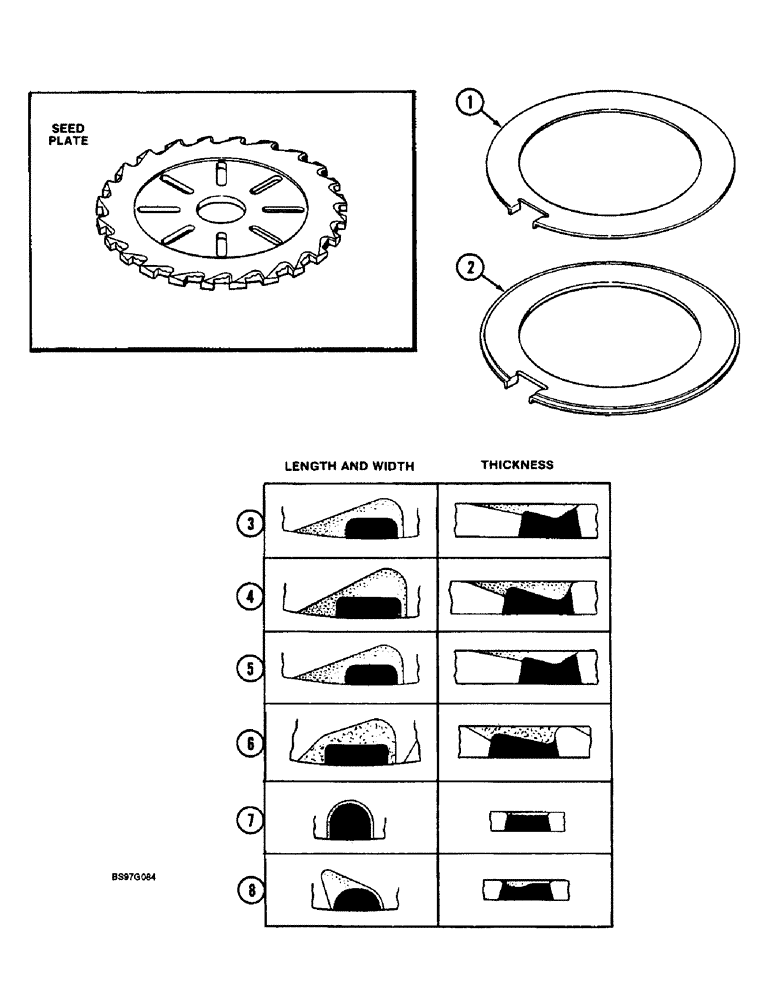

Запчасти Case IH 900 (9-146) - SEED PLATES, COTTON PLATES FOR CORN AND BEET PLANTING HOPPER BOTTOM ACID DELINTED SEED (09) - CHASSIS/ATTACHMENTS

1

13870A

DISC

RING - filler, standard

1шт.

2

622239R1

RING

- filler, thin edged

1шт.

3

1975AB

PLATE

- seed, 16 cell iron, 32/64 x 12/64 x 20/64 inch

1шт.

3

476675R1

PLATE

- seed, 16 cell plastic, 32/64 x 12/64 x 20/64 inch

1шт.

4

1978AB

LARGE PLATE

PLATE - seed, 16 cell iron, 40/64 x 13/64 x 20/64 inch

1шт.

4

476678R1

DISC

PLATE - seed, 16 cell plastic, 40/64 x 13/64 x 20/64 inch

1шт.

5

485472R1

PLATE ASSY.

PLATE - seed, 24 cell plastic, 32/64 x 12/64 x 20/64 inch

1шт.

6

469811R1

PLATE

- seed, 24 cell iron, 40/64 x 13/64 x 20/64 inch

1шт.

6

485474R1

LARGE PLATE

PLATE - seed, 24 cell plastic, 40/64 x 13/64 x 20/64 inch

1шт.

7

1929A

PLATE

- seed, 32 cell iron, 24/64 x 20/64 x 12/64 inch, requires 13870A or for deeper seed cell 622239R1 filler ring

1шт.

8

622240R2

PLATE ASSY.

PLATE - seed, 40 cell iron, 29/64 x 14/64 x 12/64 inch, requires 13870A or for deeper seed cell 622239R1 filler ring

1шт.
