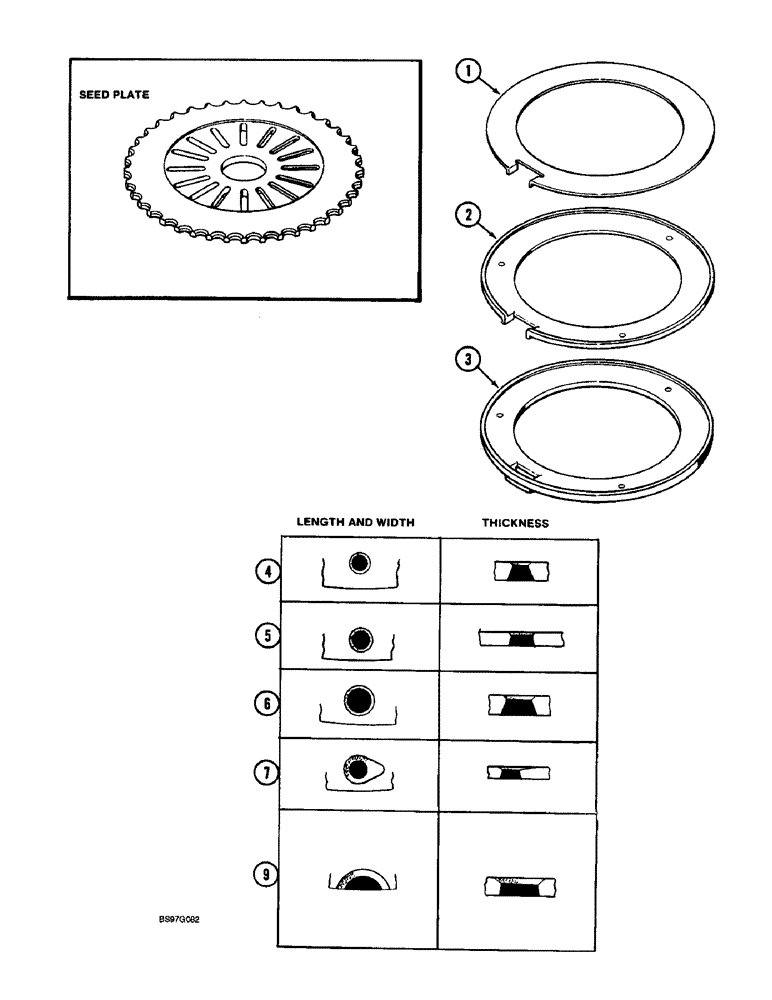

Запчасти Case IH 900 (9-142) - SEED PLATES, MILO, MAIZE AND GRAIN SORGHUM (09) - CHASSIS/ATTACHMENTS

1

13870A

DISC

RING - filler, standard

1шт.

2

1902ABX

RING

- filler

1шт.

3

3447ABX

RING

- filler

1шт.

4

1967A

PLATE

- seed, 20 cell iron, 10/64 x 10/64 x 12/64 inch, requires 484878R12 special pointed knock-out pawl and 13870A filler ring

1шт.

5

492847R1

PLATE

- seed, 82 cell iron, 0.196 diameter x 0.130 inch thick, requires hopper with beet attachment

1шт.

6

1901A

PLATE

- seed, 16 cell iron, 16/64 x 16/64 x 12/64 inch, requires 484878R12 special pointed knock-out pawl and 13870A filler ring

1шт.

7

3559A

PLATE

- seed, 40 cell iron, 12/64 x 12/64 x 0.131 inch, requires 484878R12 special pointed knock-out pawl and 3447ABX filler ring

1шт.

9

492848R1

PLATE

- seed, 24 cell plastic, 25/64 x 10/64 x 12/64 inch, requires 13870A filler ring

1шт.

9

483022R1

PLATE ASSY.

PLATE - seed, 40 cell plastic, 25/64 x 10/64 x 12/64 inch, requires 13870A filler ring

1шт.
