Запчасти Case IH 900 (9-138) - SEED PLATES, EDGE DROP, CORN (09) - CHASSIS/ATTACHMENTS

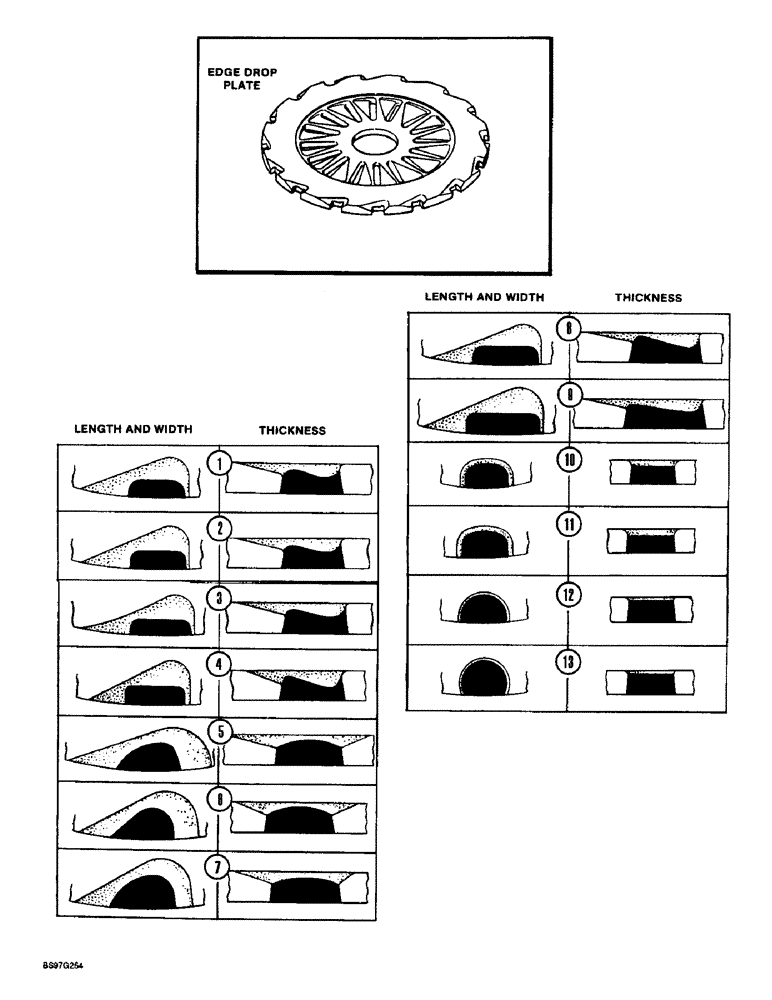

Схема запчастей Case IH 900 - (9-138) - SEED PLATES, EDGE DROP, CORN (09) - CHASSIS/ATTACHMENTS
6
11
13
7
5
12
8
2
4
10
1
3
9

Артикул

Название

Примечание

Количество

1

622174R1

PLATE

- seed, 16 cell iron, 36/64 x 12/64 x 20/64 inch

1шт.

1

480189R1

PLATE

- seed, 24 cell iron, 36/64 x 12/64 x 20/64 inch

1шт.

2

1977AB

PLATE

- seed, 16 cell iron, 38/64 x 12/64 x 2064 inch

1шт.

2

476677R1

TRAY

PLATE - seed, 16 cell plastic, 38/64 x 12/64 x 20/64 inch

1шт.

2

485473R1

PLATE

- seed, 24 cell plastic, 38/64 x 12/64 x 20/64 inch

1шт.

3

3172A

PLATE

- seed, 16 cell iron, 40/64 x 11/64 x 20/64 inch

1шт.

4

1978AB

LARGE PLATE

PLATE - seed, 16 cell iron, 40/64 x 13/64 x 20/64 inch

1шт.

4

476678R1

DISC

PLATE - seed, 16 cell plastic, 40/64 x 13/64 x 20/64 inch

1шт.

4

469811R1

PLATE

- seed, 24 cell iron, 40/64 x 13/64 x 20/64 inch

1шт.

4

485474R1

LARGE PLATE

PLATE - seed, 24 cell plastic, 40/64 x 13/64 x 20/64 inch

1шт.

5

462354R1

PLATE

- seed, 16 cell plastic, 41/64 x 18.5/64 x 20/64 inch

1шт.

6

462355R1

PLATE ASSY.

PLATE - seed, 16 cell plastic, 41/64 x 21/64 x 20/64 inch

1шт.

6

489439R1

PLATE

- seed, 24 cell plastic, 41/64 x 21/64 x 20/64 inch

1шт.

7

462356R1

PLATE

- seed, 16 cell plastic, 42/64 x 22/64 x 20/64 inch

1шт.

8

1979A

RING, LOCKING

PLATE - seed, 16 cell iron, 44/64 x 13/64 x 20/64 inch

1шт.

8

474665R1

PLATE

- seed, 24 cell iron, 44/64 x 13/64 x 20/64 inch

1шт.

9

3056A

PLATE

- seed, 16 cell iron, 50/64 x 14/64 x 20/64 inch

1шт.

10

493520R1

PLATE

- seed, 24 cell plastic, 28/64 x 16/64 x 16/64 inch

1шт.

11

3313A

PLATE

- seed, 16 cell iron, 30/64 x 18/64 x 16/64 inch

1шт.

11

493519R1

PLATE

- seed, 24 cell plastic, 30/64 x 18/64 x 16/64 inch

1шт.

12

3398A

PLATE

- seed, 16 cell iron, 30/64 x 20/64 x 16/64 inch

1шт.

12

474667R1

PLATE

- seed, 24 cell iron, 30/64 x 20/64 x 16/64 inch

1шт.

13

474666R1

PLATE

- seed, 24 cell iron, 30/64 x 24/64 x 16/64 inch

1шт.

Выбрано товаров: 23
