Запчасти Case IH 900 (9-136) - SEED PLATES, EDGE DROP, CORN (09) - CHASSIS/ATTACHMENTS

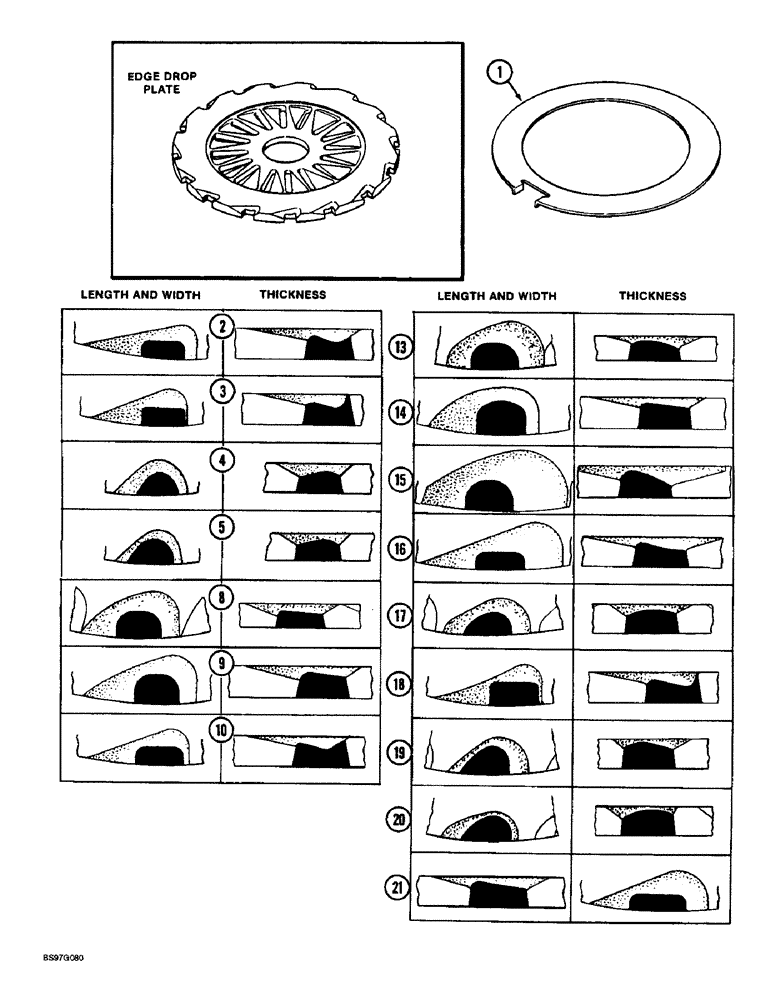

Схема запчастей Case IH 900 - (9-136) - SEED PLATES, EDGE DROP, CORN (09) - CHASSIS/ATTACHMENTS
21
16
14
8
10
15
4
17
5
18
3
19
2
13
1
9
20

Артикул

Название

Примечание

Количество

1

480179R1

RING

- filler

1шт.

2

621833R1

PLATE

- seed, 16 cell iron, 28/64 x 12/64 x 20/64 inch

1шт.

3

3236A

RING, LOCKING

PLATE - seed, 16 cell iron, 28/64 x 12/64 x 20/64 inch

1шт.

3

480190R1

PLATE

- seed, 24 cell iron, 28/64 x 12/64 x 20/64 inch

1шт.

4

492498R1

PLATE

- seed, 24 cell plastic, 28/64 x 15/64 x 20/64 inch

1шт.

5

492497R1

AXLE PIN

PLATE - seed, 24 cell plastic, 29/64 x 17/64 x 20/64 inch

1шт.

8

480509R1

PLATE ASSY.

PLATE - seed, 24 cell iron, 30/64 x 19/64 x 16/64 inch

1шт.

Requires P/N 480179R1 filler ring.

1шт.

9

3324A

PLATE

- seed, 16 cell iron, 30/64 x 19/64 x 20/64 inch

1шт.

10

1975AB

PLATE

- seed, 16 cell iron, 32/64 x 12/64 x 20/64 inch

1шт.

10

476675R1

PLATE

- seed, 16 cell plastic, 32/64 x 12/64 x 20/64 inch

1шт.

10

485472R1

PLATE ASSY.

PLATE - seed, 24 cell plastic, 32/64 x 12/64 x 20/64 inch

1шт.

13

480510R1

PLATE

- seed, 24 cell iron, 32/64 x 19/64 x 16/64 inch

1шт.

Requires P/N 480179R1 filler ring.

1шт.

14

3042A

PLATE

- seed,16 cell iron, 32/64 x 22/64 x 20/64 inch

1шт.

14

485478R1

LARGE PLATE

PLATE - seed, 24 cell plastic, 32/64 x 22/64 x 20/64 inch

1шт.

15

3561A

PLATE

- seed, 16 cell iron, 32/64 x 19/64 x 20/64 inch

1шт.

16

3546A

RING, LOCKING

PLATE - seed, 16 cell iron, 33/64 x 12/64 x 20/64 inch

1шт.

16

480691R1

PLATE

- seed, 24 cell iron, 33/64 x 12/64 x 20/64 inch

1шт.

17

489436R1

PLATE

- seed, 24 cell plastic, 33/64 x 15/64 x 20/64 inch

1шт.

18

3237AA

PLATE

- seed, 16 cell iron, 33/64 x 16/64 x 20/64 inch

1шт.

19

489437R1

PLATE

- seed, 24 cell plastic, 33/64 x 19/64 x 20/64 inch

1шт.

20

489438R1

PLATE

- seed, 24 cell plastic, 34/64 x 16/64 x 20/64 inch

1шт.

21

3545A

PLATE

- seed, 16 cell iron, 36/64 x 11/64 x 20/64 inch

1шт.

Выбрано товаров: 24
