Запчасти Case IH 900 (9-134) - HOPPER BOTTOM, PEANUT, CYCLO AIR PLANTERS, SEED GROWERS SPECIAL PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS

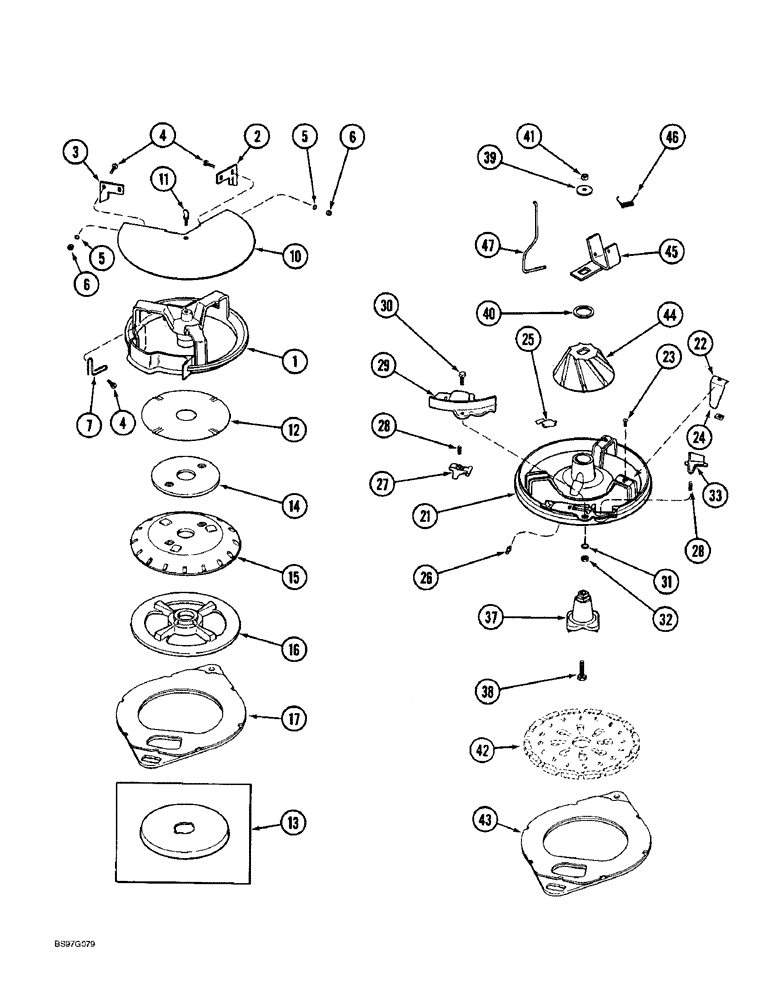

Схема запчастей Case IH 900 - (9-134) - HOPPER BOTTOM, PEANUT, CYCLO AIR PLANTERS, SEED GROWERS SPECIAL PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS
43
40
27
6
45
26
4
44
2
38
32
3
17
7
15
28
12
31
29
22
13
5
24
47
21
5
41
37
11
10
4
33
28
1
25
23
42
14
16
6
46
30
39

Артикул

Название

Примечание

Количество

1

134342C1

BOTTOM

- rotary cone hopper

1шт.

2

487066R1

REINFORCEMENT

SUPPORT - peanut cutoff

1шт.

3

490620R1

GUIDE

GATE - rotary cone bottom

1шт.

4

340-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

1шт.

5

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - internal tooth lock, No. 8

2шт.

6

225-14108

NUT,#8-32

- hex, No. 8 NC

2шт.

7

490622R1

SPRING

- seed cutoff

1шт.

10

487064R2

BAFFLE

- peanut

1шт.

11

377363R2

THUMB SCREW,1/4" - 20 x 3/4"

- clean out cover

1шт.

12

487068R2

LARGE PLATE

PLATE - peanut baffle

1шт.

13

490621R1

PLATE

- agitator

1шт.

14

58619C1

SPACER

- baffle plate, used for jumbo seed only

1шт.

15

487067R2

LARGE PLATE

PLATE - peanut seed

1шт.

16

113161C2

PLATE

- filler seed, used for standard seed only

1шт.

17

1345108C1

LARGE PLATE

PLATE - hopper bottom, for service see page 9-171

1шт.

145112C92

BOTTOM

ASSEMBLY - cotton hopper

1шт.

21

134340C2

BOTTOM

- cotton hopper

1шт.

22

PO16047A

VALVE SPRING

SPRING - seed, hopper bottom cotton

2шт.

23

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch, hopper bottom cotton

2шт.

24

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - speed, flat type, No. 10 NC, hopper bottom cotton

2шт.

25

13607AB

HINGE

GATE - hinged, hopper bottom cotton

1шт.

26

219-406

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 15/32 inch, hopper bottom cotton

1шт.

27

621721R6

KNOCKER

- hopper bottom cotton

1шт.

28

PO51

SPRING

- knocker, hopper bottom cotton

2шт.

29

134341C1

CAP

- pawl cover, hopper bottom cotton

1шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, hopper bottom cotton

1шт.

31

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch, Hopper bottom cotton

1шт.

32

425-145

JAM NUT,Jam, 5/16"-18, G5

Hopper bottom cotton Jam, 5/16"-18, G5

1шт.

33

621723R1

KNIFE

CUTOFF - seed, hopper bottom cotton

1шт.

37

492753R1

BLOCK DRIVER

STUD - agitator drive, hopper bottom cotton

1шт.

38

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, hopper bottom cotton

1шт.

39

495-21044

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch, Hopper bottom cotton

1шт.

40

495-81085

WASHER,1.16" ID x 1.62" OD x 0.06" Thk

- flat, 1-5/32 x 1-5/8 x 3/64 inch, hopper bottom cotton

1шт.

41

425-106

NUT,3/8"-16, Cl 5

Hopper bottom cotton 3/8"-16, G5

1шт.

42

REF

INSTRUCTION

PLATE - seed (See Page 9-137 through 9-161), hopper bottom cotton

1шт.

43

1345108C1

LARGE PLATE

PLATE - hopper bottom, for service see page 9-171, cotton

1шт.

44

621716R1

PLATE

- agitator, hopper bottom cotton

1шт.

45

621725R93

BRACKET

ARM - agitator, hopper bottom cotton

1шт.

46

PO26760

SPRING

- agitator, hopper bottom cotton

1шт.

47

622259R1

ARM

- agitator spring, hopper bottom cotton

1шт.

Выбрано товаров: 40
