Запчасти Case IH 900 (9-132) - HOPPER BOTTOM, CORN AND BEET, CYCLO AIR PLANTERS, SEED GROWERS SPECIAL PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS

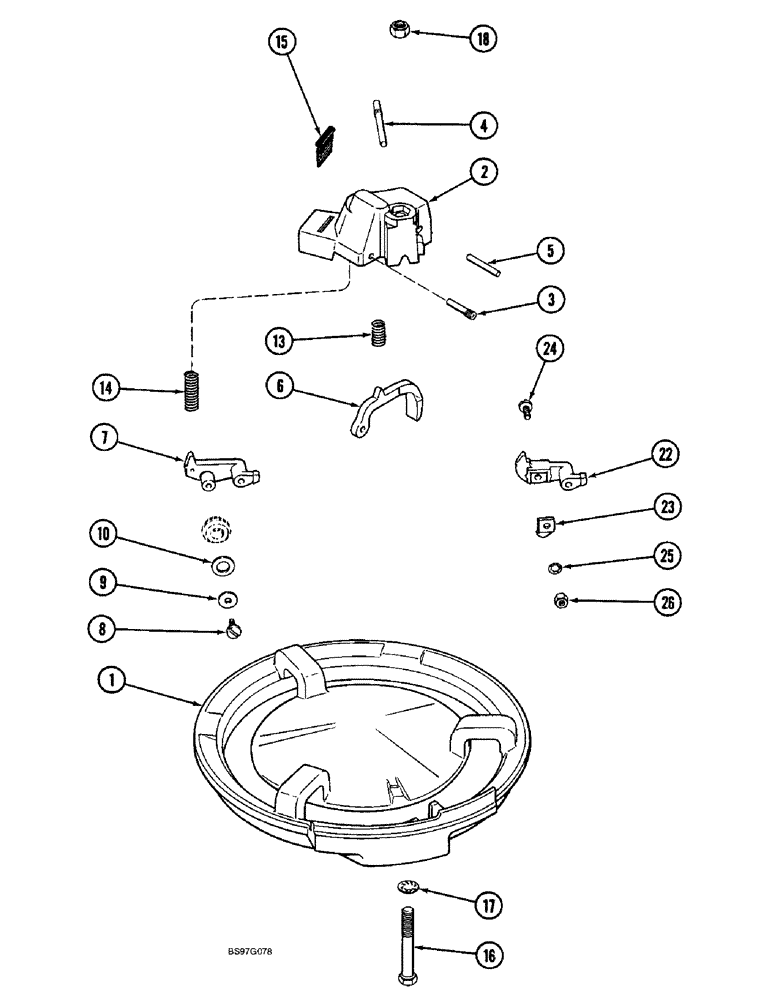

Схема запчастей Case IH 900 - (9-132) - HOPPER BOTTOM, CORN AND BEET, CYCLO AIR PLANTERS, SEED GROWERS SPECIAL PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS
10
15
22
7
25
6
4
23
5
17
16
9
1
3
8
13
18
2
14
24
26

Артикул

Название

Примечание

Количество

1

1279409C2

BOTTOM

- hopper

1шт.

2

484871R91

SERVICE KIT

COVER ASSEMBLY - double pawl, corn (Includes Ref. 3 through 18)

1шт.

2

484884R92

COVER

ASSEMBLY - double pawl, beet

1шт.

3

484883R1

PIN

- pawl pivot, 3/16 x 1 inch

1шт.

4

484882R1

PIN

- arm pivot, 3/16 x 1-1/2 inch

1шт.

5

38-31222

PIN,3/16" x 1 3/8", Coiled

- roll, 3/16 x 1-5/16 inch

1шт.

6

484875R1

PAWL

- cutoff, corn

2шт.

6

484874R1

PAWL

- cutoff, beet

2шт.

7

484885R21

ARM

ASSEMBLY - roller knocker, corn (Includes Ref 8 through 10)

1шт.

7

484872R21

ARM

ASSEMBLY - roller knocker, beet

1шт.

8

488808R1

SCREW

- pan head slotted, No. 10 NC x 1/2 inch

1шт.

9

495-21019

WASHER,#8

1шт.

10

376308R1

SPRING WASHER

- special, 11/32 inch diameter

1шт.

13

484881R1

SPRING

- beet

3шт.

13

484881R1

SPRING

- beet

3шт.

14

542320R1

SPRING

- knocker pawl

1шт.

15

484879R1

DOOR

GATE - double pawl cover

1шт.

16

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

17

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch

1шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

22

484878R12

ARM

ASSEMBLY - small seed knocker

1шт.

23

484880R2

STRIP

PLATE - small seed knocker

1шт.

24

436694

SCREW,Slotted Pan Hd, #8-32 x 7/16"

- pan head slotted

1шт.

25

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - internal tooth lock, No. 8

1шт.

26

225-14108

NUT,#8-32

- hex, No. 8 NC

1шт.

Выбрано товаров: 25
