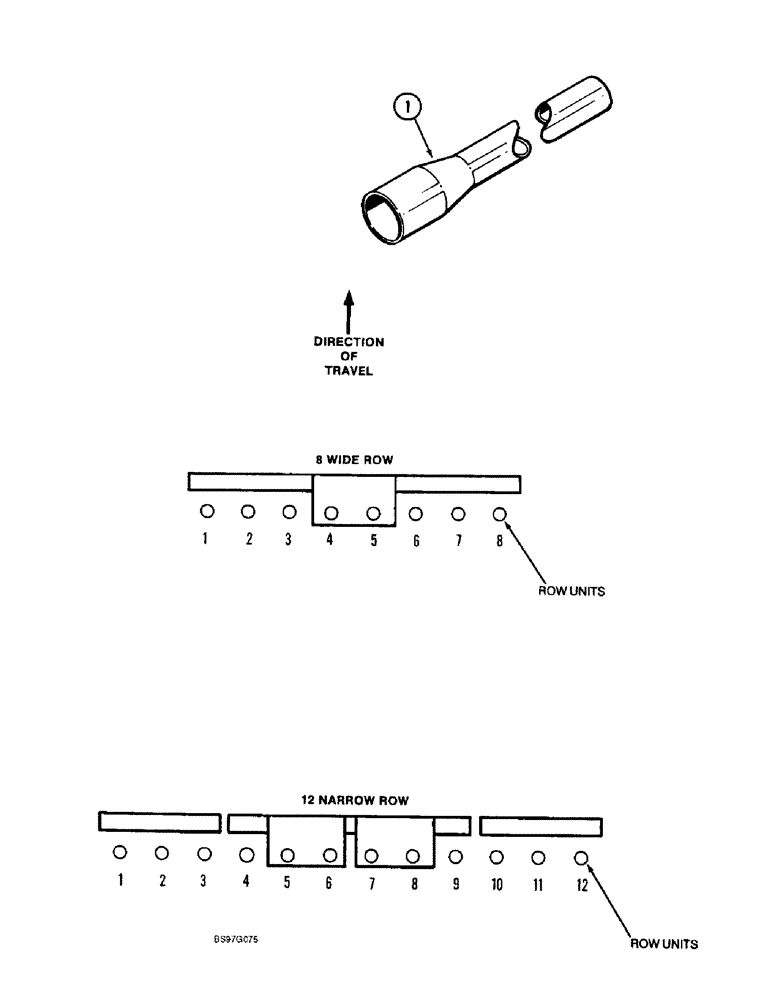

Запчасти Case IH 900 (9-126) - SEED DELIVERY TUBE, CYCLO AIR VERTICAL FOLDING, 8 ROW WIDE (09) - CHASSIS/ATTACHMENTS

1

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 1, 8 row wide

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337534C1

TUBE,17.45 - 28.5 mm OD, 3010 mm Length

- seed delivery, 118 inch, No. 2, 8 row wide

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 3, 8 row wide

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 4, 8 row wide

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 5, 8 row wide

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 6, 8 row wide

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

141329C2

TUBE,17.5 - 25.4 mm OD, 2690 mm Length

- seed delivery, 106 inch, No. 7, 8 row wide

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1973256C1

TUBE

- seed delivery, 162 inch, No. 8, 8 row wide

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 1, 12 row narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337535C1

TUBE,17.45 - 28.5 mm OD, 3165 mm Length

- seed delivery, 125 inch, No. 2, 12 row narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337531C1

TUBE,17.45 - 28.5 mm OD, 2490 mm Length

- seed delivery, 98 inch, No. 3, 12 row narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 4, 12 row narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 5, 12 row narrow

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 6, 12 row narrow

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1337520C1

TUBE,17.45 - 28.5 mm OD, 1065 mm Length

- seed deiivery, 42 inch, No. 7, 12 row narrow

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 8, 12 row narrow

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 9, 12 row narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 10, 12 row narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337534C1

TUBE,17.45 - 28.5 mm OD, 3010 mm Length

- seed delivery, 118 inch, No. 11, 12 row narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1973256C1

TUBE

- seed delivery, 162 inch, No. 12 row narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.
