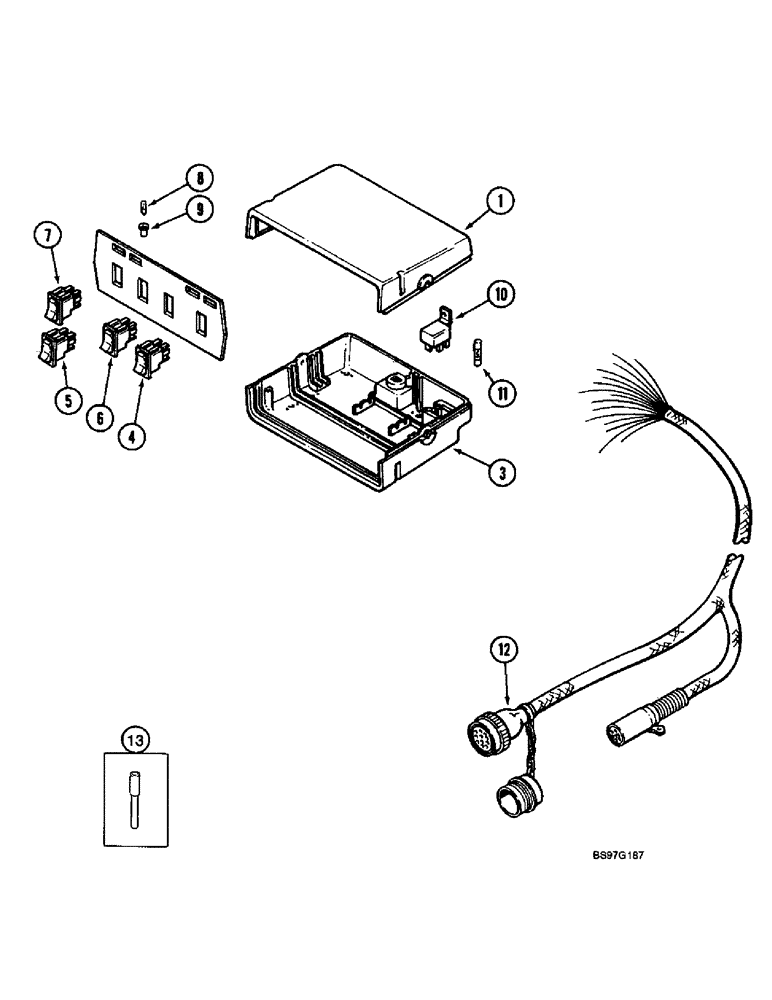

Запчасти Case IH 900 (4-12) - PLANTER CONTROL, ALL CYCLO AIR HORIZONTAL FOLDING (04) - ELECTRICAL SYSTEMS

91361C91

REMAN-ELECT MONITOR

CONTROL ASSEMBLY - planter

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control, top (Order 91361C91)

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - control, bottom (Order 91361C91)

1шт.

4

245048C1

IGNITION SWITCH

SWITCH - rocker, advance marker

1шт.

5

245012C1

SWITCH

- rocker, fold marker

1шт.

6

NSS

NOT SOLD SEPARAT

SWITCH - rocker, tool bar

1шт.

7

NSS

NOT SOLD SEPARAT

SWITCH - rocker, function

1шт.

8

1261437C1

LAMP

BULB - lamp

8шт.

9

1279457C1

SOCKET

- bulb

8шт.

10

1983394C2

RELAY

- mini, 12 volt, planter control

3шт.

11

9426333

FUSE,15 Amp, Type 3AG

- 3AG, 15 amperes

1шт.

12

NSS

NOT SOLD SEPARAT

HARNESS - control

1шт.

13

453133C1

PLUG

- connector, if used

1шт.
