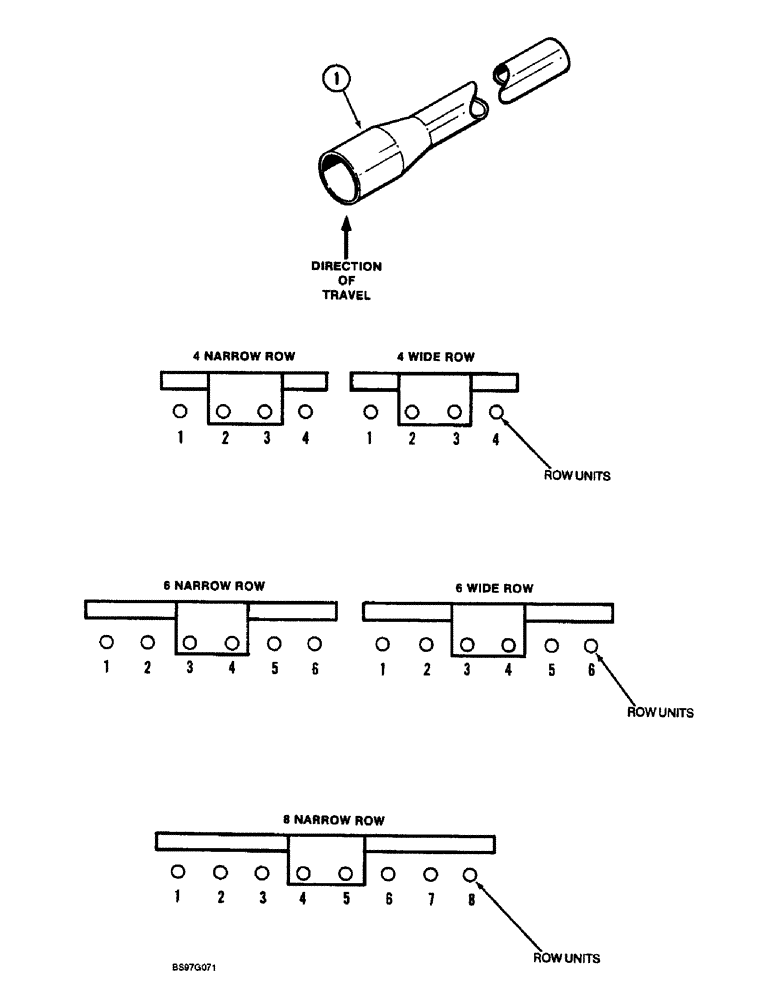

Запчасти Case IH 900 (9-118) - SEED DELIVERY TUBE, CYCLO AIR TRAILING, 4 ROW NARROW (09) - CHASSIS/ATTACHMENTS

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 1, 4 Row Narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337517C1

TUBE,17.45 - 28.5 mm OD, 970 mm Length

- seed delivery, 38 inch, No. 2, 4 Row Narrow

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 3, 4 Row Narrow

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 4, 4 Row Narrow

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1337529C1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84 inch, No. 1, 4 Row Wide

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 2, 4 Row Wide

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 3, 4 Row Wide

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 4, 4 Row Wide

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337531C1

TUBE,17.45 - 28.5 mm OD, 2490 mm Length

- seed delivery, 98 inch, No. 1, 6 Row Narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 2, 6 Row Narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337518C1

TUBE,17.45 - 28.5 mm OD, 1010 mm Length

- seed delivery, 40 inch, No. 3, 6 Row Narrow

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 4, 6 Row Narrow

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1337523C1

TUBE,17.45 - 28.5 mm OD, 1430 mm Length

- seed delivery, 56 inch, No. 5, 6 Row Narrow

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1337529C1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84 inch, No. 6, 6 Row Narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337534C1

TUBE,17.45 - 28.5 mm OD, 3010 mm Length

- seed delivery, 118 inch, No. 1, 6 Row Wide

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 2, 6 Row Wide

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 3, 6 Row Wide

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 4, 6 Row Wide

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 5, 6 Row Wide

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

141329C2

TUBE,17.5 - 25.4 mm OD, 2690 mm Length

- seed delivery, 106 inch, No. 6, 6 Row Wide

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337536C1

TUBE,17.45 - 28.5 mm OD, 3300 mm Length

- seed delivery, 130 inch, No. 1, 6 Row Wide

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337531C1

TUBE,17.45 - 28.5 mm OD, 2490 mm Length

- seed delivery, 98 inch, No. 2, 8 Row Narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 3, 8 Row Narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1

1337515C1

TUBE

- seed delivery, 35 inch, No. 4, 8 Row Narrow

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 5, 8 Row Narrow

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1337523C1

TUBE,17.45 - 28.5 mm OD, 1430 mm Length

- seed delivery, 56 inch, No. 6, 8 Row Narrow

1шт.

Order 58238C2 tube, flared end, 1473 mm, 58 in., long, and cut to length

1шт.

1

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 7, 8 Row Narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.

1337534C1

TUBE,17.45 - 28.5 mm OD, 3010 mm Length

- seed delivery, 118 inch, No. 8, 8 Row Narrow

1шт.

Order 130979A2 tube, flared end, 4950 mm, 195 in., long, and cut to length

1шт.
