Запчасти Case IH 900 (9-116) - SEED MODULE DISCHARGE MANIFOLD, CYCLO AIR PLANTERS (09) - CHASSIS/ATTACHMENTS

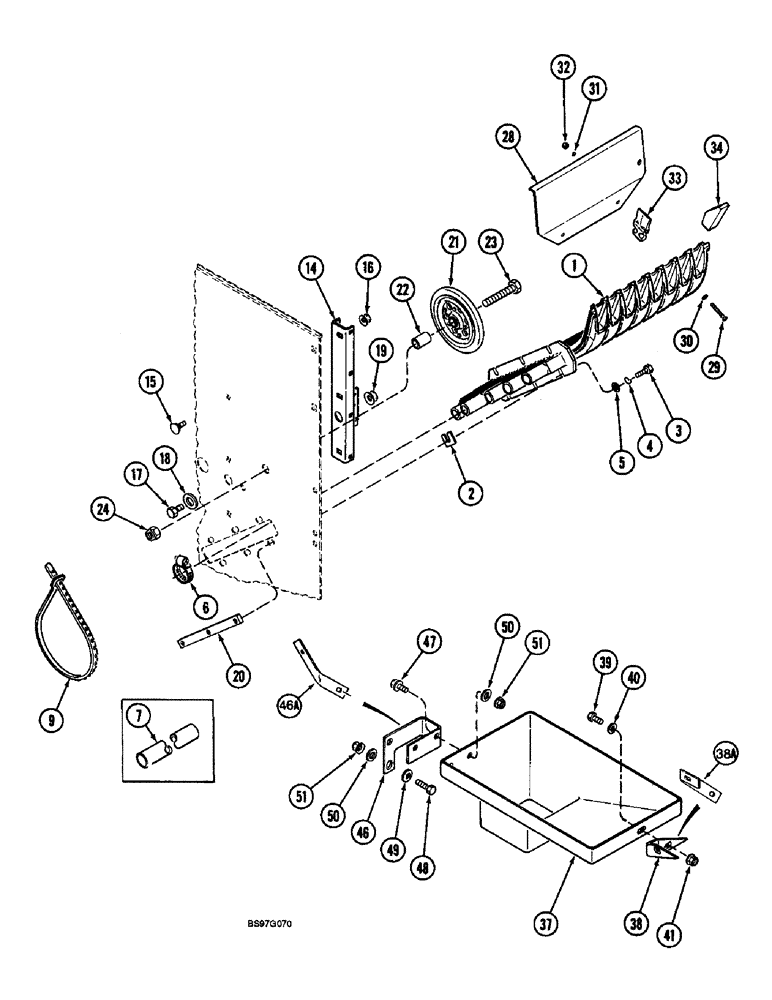

Схема запчастей Case IH 900 - (9-116) - SEED MODULE DISCHARGE MANIFOLD, CYCLO AIR PLANTERS (09) - CHASSIS/ATTACHMENTS
18
7
19
22
23
21
50
40
20
1
32
39
3
29
49
6
46
14
38
46a
28
34
48
31
16
38a
15
30
47
41
2
50
5
17
33
9
4
51
24
51
37

Артикул

Название

Примечание

Количество

1

141113C3

MANIFOLD

- discharge

1шт.

2

151670C1

SHIM

SHIM - .036 inch

1шт.

2

935915R1

SHIM,33.02mm OD x 0.38mm Thk

- .015 inch thick

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

6шт.

6

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

1шт.

7

REF

INSTRUCTION

TUBE - seed delivery (See Page 9-119 through 9-129)

1шт.

9

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

14

144838C2

BRACKET

- mounting

1шт.

15

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

3шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

18

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

2шт.

19

231-5146

FLANGE NUT,3/8"-16

1шт.

20

147284C1

STRIP

BRACKET - manifold mounting

2шт.

21

548821R3

WHEEL,104.78mm Idler Dia x 133.35mm OD x 20.64mm W

- drum support

1шт.

22

145115C2

SPACER

- support wheel

1шт.

23

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

24

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

28

1279051C2

EXTENSION

PLATE - manifold extension

1шт.

29

440-10628

SCREW,Cross Pan Hd, #6-32 x 1 3/4"

- machine, pan Phillips, No. 6 NC x 1-3/4 inch

2шт.

30

95-81108

WASHER,#6

- flat, 5/32 x 3/8 x 1/32 inch

2шт.

31

492-11006

LOCK WASHER,#6

Washer, Lock, #6

2шт.

32

225-14106

NUT,#6-32

2шт.

33

1279050C1

SPACER

- manifold extension

2шт.

34

144839C1

STRIP

PLUG - manifold

1шт.

37

141265C1

CHUTE ASSY.

CHUTE - seed funnel, if used, (Trailing only)

1шт.

37

188287A1

FUNNEL

CHUTE - seed funnel, if used, (Trailing only)

1шт.

38

141268C1

SUPPORT

- seed funnel, if used, (Trailing only)

1шт.

38a

1547160C1

BRACKET

SUPPORT - seed funnel, if used

1шт.

39

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

40

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

41

231-5146

FLANGE NUT,3/8"-16

2шт.

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

1шт.

498-81005

SQ HOLE WASHER,13.49mm ID x 25.4mm OD x 1.52mm Thk

- square hole, 17/32 x 1 x 1/16 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

46

145183C2

SUPPORT

- chute, if used, (Trailing only)

1шт.

46a

1547161C2

BRACKET

SUPPORT - seed funnel, if used

1шт.

47

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

48

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

49

498-81005

SQ HOLE WASHER,13.49mm ID x 25.4mm OD x 1.52mm Thk

- square hole, 17/32 x 1 x 1/16 inch

2шт.

50

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

51

231-5146

FLANGE NUT,3/8"-16

4шт.

Выбрано товаров: 45
