Запчасти Case IH 900 (9-112) - SEED MODULE CUTOFF WHEEL, CYCLO AIR PLANTERS (09) - CHASSIS/ATTACHMENTS

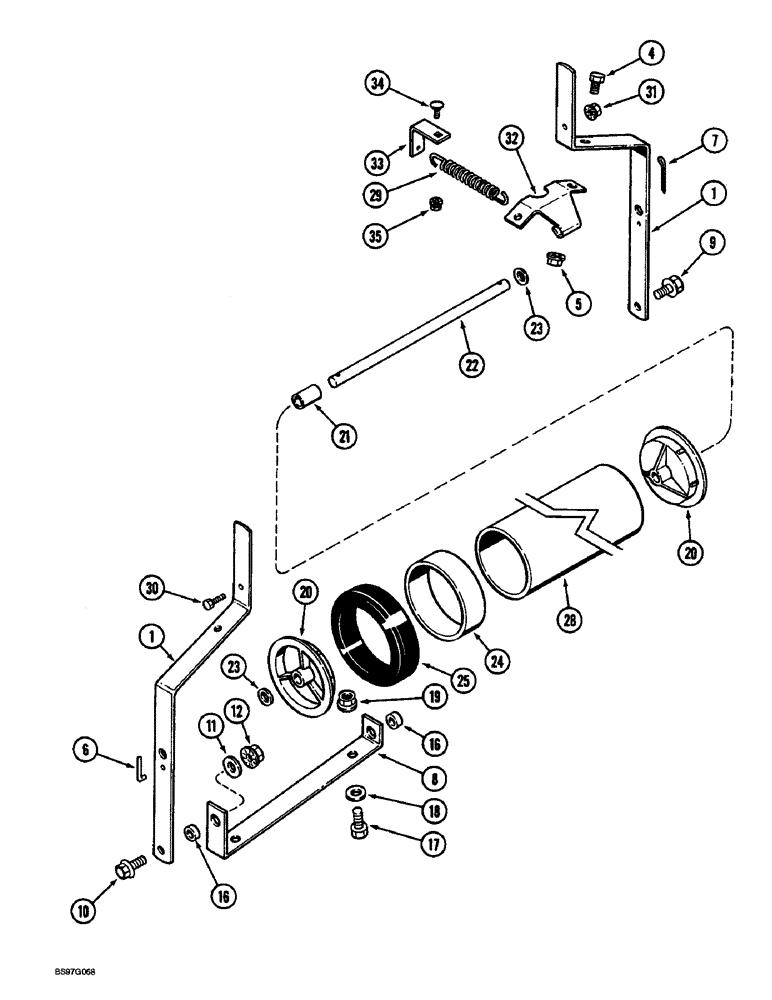

Схема запчастей Case IH 900 - (9-112) - SEED MODULE CUTOFF WHEEL, CYCLO AIR PLANTERS (09) - CHASSIS/ATTACHMENTS
33
35
21
34
18
22
8
23
19
28
7
20
4
9
29
16
5
32
31
6
25
1
12
1
17
23
16
24
11
30
20
10

Артикул

Название

Примечание

Количество

1

141210C1

SUPPORT

ARM - wheel support

2шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

6

548365R2

PIN

- retaining

1шт.

7

432-1216

COTTER PIN,3/16" x 1"

1шт.

8

141167C2

SUPPORT

- cutoff wheel

1шт.

9

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

1шт.

10

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

11

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch

2шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

16

149352C1

BUSHING

- pivot

2шт.

17

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, grade 8

2шт.

18

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

2шт.

19

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

20

539670R1

RIM

- cutoff wheel

2шт.

21

1980757C1

BUSHING

SPACER - cutoff wheel

1шт.

22

548810R1

AXLE

- cutoff wheel

1шт.

23

495-81177

WASHER,21/32" x 1" x .030"

- flat, 21/32 x 1 x 1/32 inch

1шт.

24

1261565C2

SPACER

- cutoff wheel

2шт.

25

141019C5

TYRE/TIRE

TIRE - cutoff wheel

1шт.

28

546338R1

SLEEVE

- cutoff wheel, 4 row

1шт.

28

546337R1

SLEEVE

- cutoff wheel, 6 and 12 row

1шт.

28

548809R2

SLEEVE

- cutoff wheel, 302 mm (11-7/8 inch) long, 8 row and Corn/Soybean Special

1шт.

29

650949C1

VALVE SPRING

SPRING - idler

1шт.

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

31

231-5146

FLANGE NUT,3/8"-16

1шт.

32

141209C1

CLIP

- spring anchor

1шт.

33

141212C1

SUPPORT

- spring bracket

1шт.

34

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

35

231-5146

FLANGE NUT,3/8"-16

1шт.

Выбрано товаров: 30
