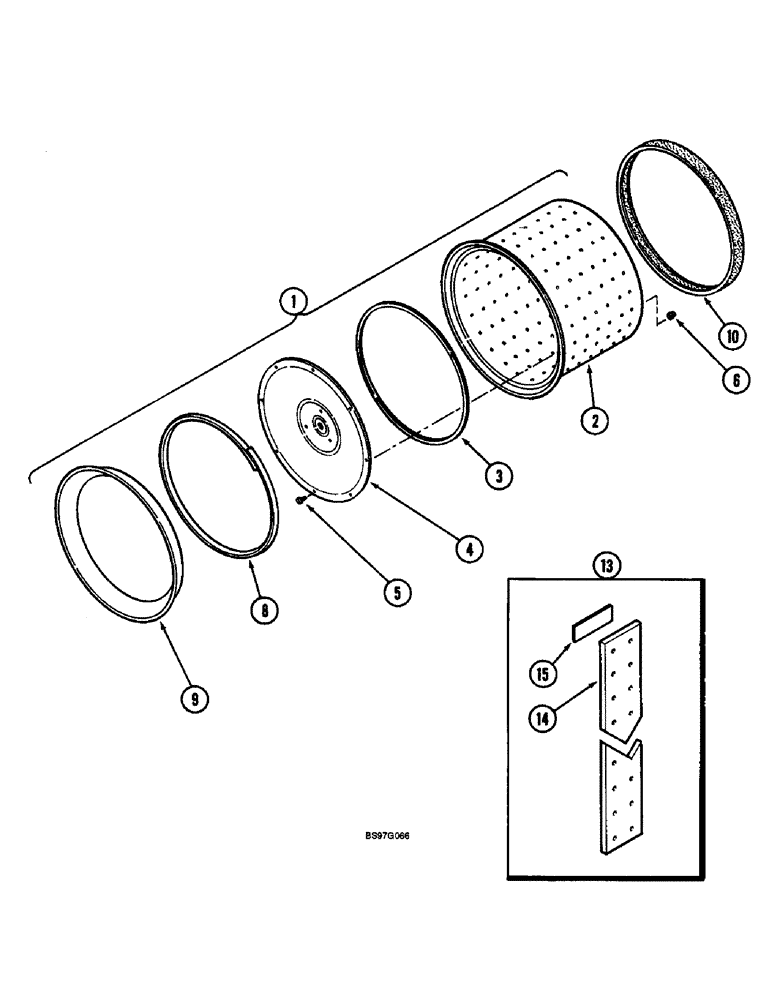

Запчасти Case IH 900 (9-108) - SEED DRUM, CYCLO AIR PLANTERS (09) - CHASSIS/ATTACHMENTS

1

548777R95

DRUM

ASSEMBLY - seed, corn, A-24 hole

1шт.

1

549966R95

DRUM

ASSEMBLY - seed, popcorn, sunflower, B-24 hole

1шт.

1

1546934C1

DRUM

ASSEMBLY - seed, corn, E-24 hole

1шт.

1

149354C92

DRUM

ASSEMBLY - seed, sunflower, J-24 hole

1шт.

1

60270C93

DRUM

ASSEMBLY - seed, corn, A-36 hole

1шт.

1

549964R93

DRUM

ASSEMBLY - seed, beet, C-36 hole

1шт.

1

1546935C1

DRUM

ASSEMBLY - seed, corn, E-36 hole

1шт.

1

58434C93

DRUM

ASSEMBLY - seed, raw beet, G-36 hole

1шт.

1

61144C95

DRUM

ASSEMBLY - seed, popcorn, sunflower, B-36 hole

1шт.

1

63814C93

DRUM

ASSEMBLY - seed, beet, G-72 hole

1шт.

1

548778R93

DRUM

ASSEMBLY - seed, milo, sorghum, C-72 hole

1шт.

1

549968R93

DRUM

ASSEMBLY - seed, beans, D-72 hole

1шт.

1

1546937C1

DRUM

ASSEMBLY - seed, edible bean, D-96 hole

1шт.

1

549970R93

DRUM

ASSEMBLY - seed, cotton, E-96 hole

1шт.

1

548779R93

DRUM

ASSEMBLY - seed, soybean, H-144 hole

1шт.

1

60649C93

DRUM

ASSEMBLY - seed, cotton, soybean, F-144 hole

1шт.

1

1546936C1

DRUM

ASSEMBLY - seed, small seed, G-144 hole

1шт.

1

58436C93

DRUM

ASSEMBLY - seed, sorghum, C-144 hole

1шт.

1

76810C92

DRUM

ASSEMBLY - seed, soybean, H-240 hole

1шт.

2

NSS

NOT SOLD SEPARAT

DRUM - seed (Order drum assembly)

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - drum, 63-1/2 inch long (Order 57554C1 and, Serial Range: cut-length)

1шт.

4

145113C1

CAP

COVER - end, drum

1шт.

5

473-11010

SCREW,Slotted Flat Hd, #10-24 x 5/8"

- machine, flat head slotted, No. 10 NC x 5/8 inch

8шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

8

60303C5

RING, SNAP

RING - seal retaining

1шт.

9

100589C3

SEAL

- drum

1шт.

10

57669C4

BELT,38.10 mm W x 1133.00 mm L

Seed drum 38.10 mm W x 1133.00 mm L

1шт.

13

63280C1

PACKAGE

KIT - cushion belt

1шт.

Kit includes belt for two rows on 36 hole drum. Used when planting long slender corn or butterfly tip corn.

1шт.

14

NSS

NOT SOLD SEPARAT

BELT - cushioning, drum

1шт.

15

NSS

NOT SOLD SEPARAT

FASTENER - belt

1шт.
