Запчасти Case IH 900 (9-104) - SEED DRUM DRIVE, CYCLO AIR SEMI-MOUNTED, CORN/SOYBEAN SPECIAL (09) - CHASSIS/ATTACHMENTS

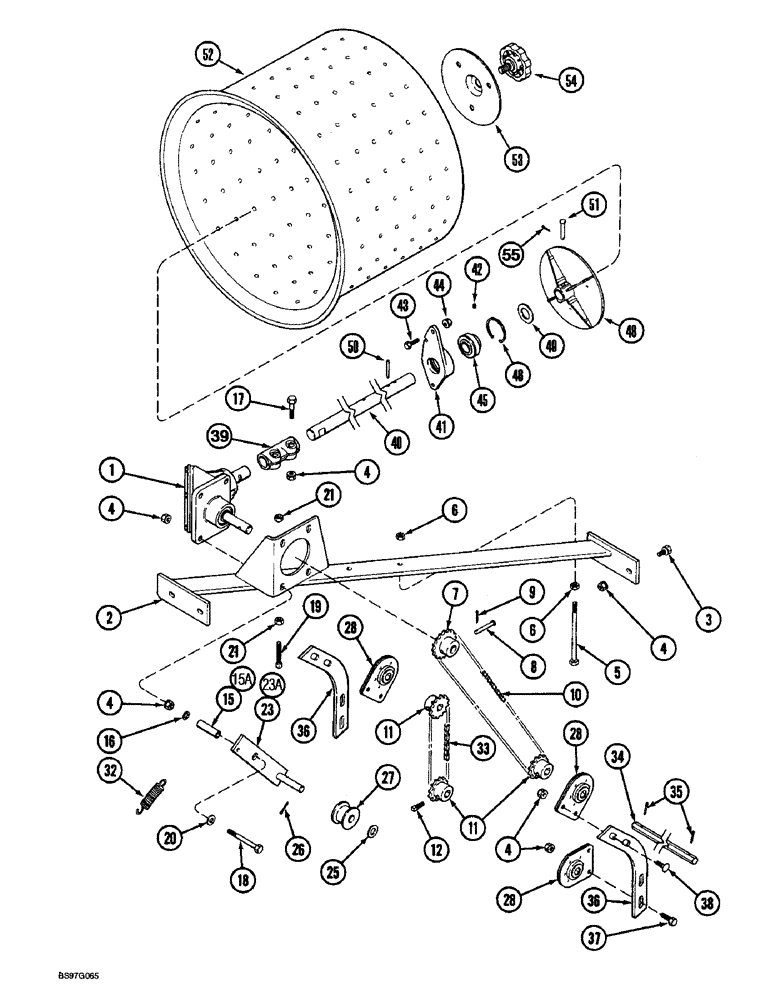

Схема запчастей Case IH 900 - (9-104) - SEED DRUM DRIVE, CYCLO AIR SEMI-MOUNTED, CORN/SOYBEAN SPECIAL (09) - CHASSIS/ATTACHMENTS
25
39
54
18
4
46
20
17
50
42
28
15a
35
15
27
21
32
21
38
7
4
36
33
4
16
49
11
10
48
9
8
44
6
43
3
55
28
37
12
40
23
11
52
1
6
41
36
4
19
51
46
26
2
5
53
34
4
23a
28

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

GEAR BOX - seed drum (See Page 9-111)

1шт.

2

140938C5

SUPPORT

- gear box mounting

1шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

4шт.

4

231-5146

FLANGE NUT,3/8"-16

1шт.

5

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

- hex, 3/8 NC x 6 inch

2шт.

6

425-106

NUT,3/8"-16, Cl 5

2шт.

7

1254360C1

SPROCKET ASSY.

SPROCKET - 16 tooth

1шт.

8

439-1430

HEADED PIN,1/4" x 1 7/8", G2

PIN - headed, 1/4 x 1-7/8 inch, grade 2

1шт.

9

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

10

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drum drive (Use 67 links from bulk chain 475879R91, plus 1 connecting link 241-2314 and 2 offset links 241-2714)

1шт.

11

1254359C1

SPROCKET ASSY.

SPROCKET - drive, 12 tooth

3шт.

12

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch, cup point

3шт.

15

127030A1

TUBE,10.34 mm ID, 15.88 mm OD

SPACER - pivot, used with item 23, 1954800C1 arm, no longer available, order item 15A, 240433A1 spacer and item 23A, 240440A1 arm

1шт.

15a

240433A1

SPACER

- pivot, used with item 23A, 240440A1 arm

1шт.

16

151670C1

SHIM

SHIM - .036 inch

1шт.

16

935915R1

SHIM,33.02mm OD x 0.38mm Thk

- .015 inch thick

1шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

18

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

19

485-13836

SET SCREW,Sq Hd, 3/8"-16 x 2 1/4"

SCREW - set, square head, 3/8 NC x 2-1/4 inch, cup point

1шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

21

329-106

NUT,3/8"-16, G8

2шт.

23

1954800C1

BAR

ARM - tightener, if used

1шт.

23a

240440A1

FRONT IDLER

ARM - tightener, if used

1шт.

25

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

2шт.

26

432-1216

COTTER PIN,3/16" x 1"

1шт.

27

1277726C1

ROLLER,48mm OD x 34mm L

- idler, tightener

1шт.

28

141242C91

BEARING,16mm ID

- ball

3шт.

32

650949C1

VALVE SPRING

SPRING - idler, (Replaces 140962C1)

1шт.

33

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drum drive (Use 41 links from bulk chain 475879R91 plus 1 connecting link 214-2314)

1шт.

475879R91

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-2714

LINK,12.7mm Pitch

LINK - offset, single pitch, No. 41, 1/2 inch pitch

2шт.

241-2314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

34

1254313C1

BAR

SHAFT - drum drive

1шт.

35

432-1216

COTTER PIN,3/16" x 1"

2шт.

36

1254314C1

SUPPORT

PLATE - bearing support

2шт.

37

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

38

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (right side)

2шт.

38

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, (Left side) Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

39

1250703C2

CLAMP

- drum shaft

1шт.

40

137132C3

SHAFT

- drum

1шт.

41

147365C1

BEARING HOUSING,36 mm ID x 66 mm OD x 24.5 mm

- bearing

1шт.

42

178-1118

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - set, hex socket headless, 1/2 NF x 1/4 inch, cone point

1шт.

43

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

45

149306C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - ball

1шт.

46

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

1шт.

48

137129C1

HOUSING

- drum drive

1шт.

49

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

4шт.

50

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

51

439-1428

HEADED PIN,1/4" OD x 1-3/4" OAL, Gr 2

PIN - headed, 1/4 x 1-3/4 inch, grade 2

1шт.

52

REF

INSTRUCTION

DRUM - seed (See Page 9-109)

1шт.

53

141509C1

CAP

PLATE - drum end

1шт.

54

141681C2

HANDLE

KNOB - drum

1шт.

55

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.
