Запчасти Case IH 900 (9-102) - SEED DRUM DRIVE, CYCLO AIR PLANTERS, ALL EXCEPT CORN/SOYBEAN SPECIAL (09) - CHASSIS/ATTACHMENTS

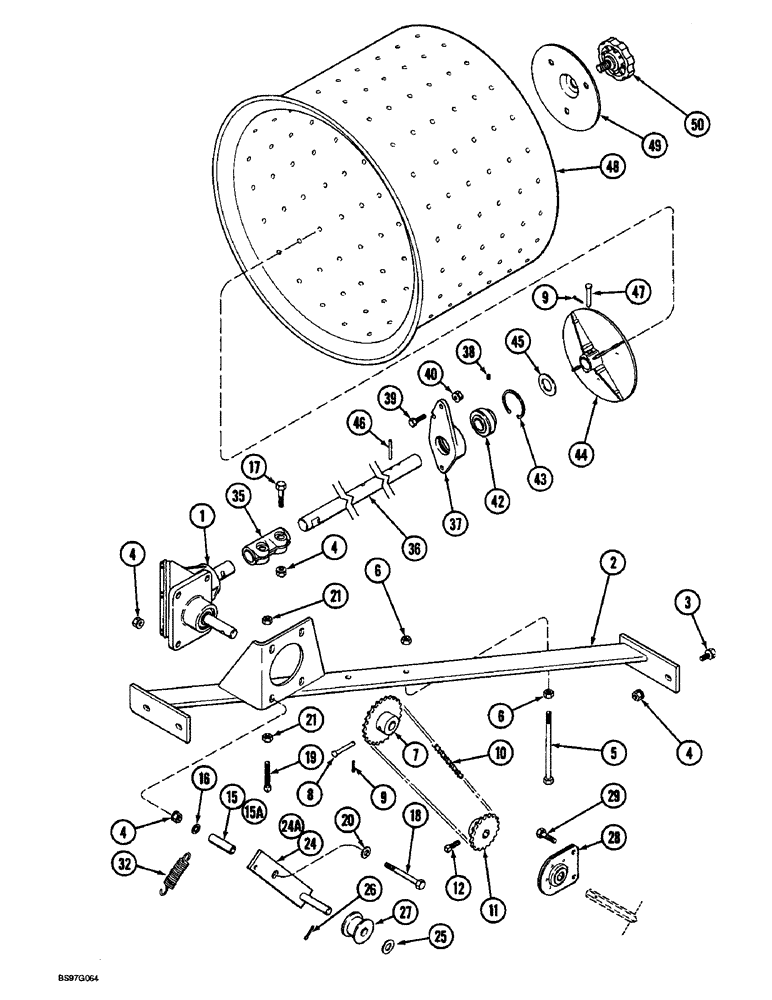

Схема запчастей Case IH 900 - (9-102) - SEED DRUM DRIVE, CYCLO AIR PLANTERS, ALL EXCEPT CORN/SOYBEAN SPECIAL (09) - CHASSIS/ATTACHMENTS
8
44
15
9
9
37
39
42
11
24
46
1
32
3
35
21
40
45
4
29
6
47
5
50
15a
19
48
27
7
6
25
21
49
36
43
4
12
38
4
2
28
17
18
20
26
10
24a
4
16

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

GEAR B0X - seed drum (See Page 9-111)

1шт.

2

140938C5

SUPPORT

- gear box mounting

1шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

4шт.

4

231-5146

FLANGE NUT,3/8"-16

1шт.

5

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

- hex, 3/8 NC x 6 inch

2шт.

6

425-106

NUT,3/8"-16, Cl 5

2шт.

7

127168A1

SPROCKET ASSY.

SPROCKET - 24 teeth

1шт.

8

439-1430

HEADED PIN,1/4" x 1 7/8", G2

PIN - headed, 1/4 x 1-7/8 inch, grade 2

1шт.

9

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

10

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drum drive (Use 101 links from bulk chain 1790D plus 1 connecting link 1301D)

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

11

90909C1

SPROCKET ASSY.

SPROCKET - drum drive, 18 teeth

1шт.

12

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch, cup point

1шт.

15

127030A1

TUBE,10.34 mm ID, 15.88 mm OD

SPACER - pivot, used with item 24, 1547684C2 arm, no longer available, order item 15A, 240433A1 spacer and item 24A, 240440A1 arm

1шт.

15a

240433A1

SPACER

- pivot, used with item 24A, 240440A1 arm

1шт.

16

151670C1

SHIM

SHIM - .036 inch

1шт.

16

935915R1

SHIM,33.02mm OD x 0.38mm Thk

- .015 inch thick

1шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

18

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

19

485-13836

SET SCREW,Sq Hd, 3/8"-16 x 2 1/4"

SCREW - set, square head, 3/8 NC x 2-1/4 inch, cup point

1шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

21

329-106

NUT,3/8"-16, G8

2шт.

24

1547684C2

BAR ASSY.

ARM - tightener, used with item 15, 127030A1 spacer, no longer available, order item 24A, 240440A1 arm and item 15A, 240433A1 spacer

1шт.

24a

240440A1

FRONT IDLER

ARM - tightener, used with item 15A, 240433A1 spacer

1шт.

25

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

1шт.

26

432-1216

COTTER PIN,3/16" x 1"

1шт.

27

1277726C1

ROLLER,48mm OD x 34mm L

- idler

1шт.

28

141242C91

BEARING,16mm ID

- ball

1шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

32

650949C1

VALVE SPRING

SPRING - idler(replaces 1277854C2)

1шт.

REF 32 S/B 650949C1.

1шт.

35

1250703C2

CLAMP

- drum shaft

1шт.

36

137132C3

SHAFT

- drum

1шт.

37

147365C1

BEARING HOUSING,36 mm ID x 66 mm OD x 24.5 mm

- bearing

1шт.

38

178-1118

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - set, hex socket headless, 1/2 NF x 1/4 inch, cone point

1шт.

39

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

40

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

42

149306C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - ball

1шт.

43

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

1шт.

44

137129C1

HOUSING

- drum drive

1шт.

45

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

4шт.

46

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

47

439-1428

HEADED PIN,1/4" OD x 1-3/4" OAL, Gr 2

PIN - headed, 1/4 x 1-3/4 inch, grade 2

1шт.

48

REF

INSTRUCTION

DRUM - seed (See Page 9-109)

1шт.

49

141509C1

CAP

PLATE - drum end

1шт.

50

141681C2

HANDLE

KNOB - drum

1шт.

Выбрано товаров: 47
