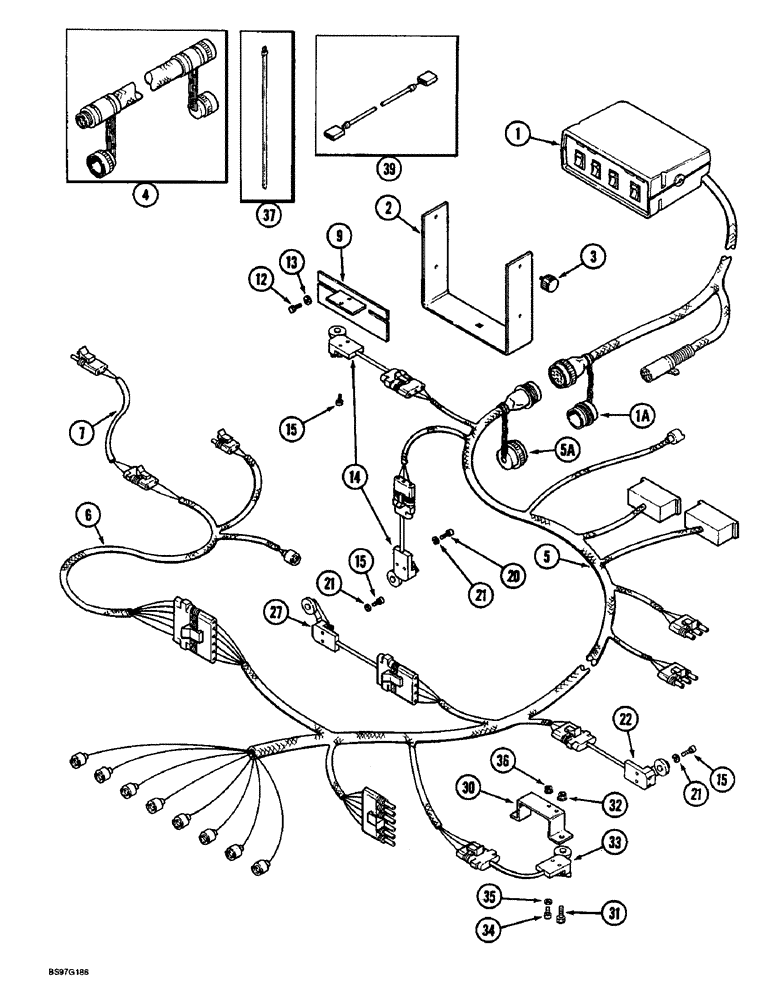

Запчасти Case IH 900 (4-10) - PLANTER CONTROL SYSTEM, ALL CYCLO AIR HORIZONTAL FOLDING (04) - ELECTRICAL SYSTEMS

1

91361C91

REMAN-ELECT MONITOR

CONTROL ASSEMBLY - planter (See Page 4-13)

1шт.

1a

245041C1

CAP

- electrical connector, type EC

1шт.

2

1267828C1

BRACKET

- mounting

1шт.

3

1336002C1

KNOB

KIT - knob, includes 2 knobs and 2 washers

2шт.

4

245730C1

ASSEMBLY

HARNESS - extension (Used with large 4 wheel drive tractor)

1шт.

5

107490C1

HARNESS

ASSEMBLY - main

1шт.

5a

245041C1

CAP

- electrical connector, type EC

1шт.

6

92111C1

HARNESS

ASSEMBLY - wing frame

2шт.

7

92112C1

HARNESS

- tail lamp (12 row narrow)

1шт.

7

92113C1

HARNESS

- tail lamp (12 row wide and 16 row narrow)

1шт.

9

1277650C3

PLATE

- switch

2шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

14

1265625C92

SWITCH

- latch and wing lock

4шт.

15

361-31012

HEX SOC SCREW,#10 - 24 x 3/4"

BOLT - hex socket, No. 10 NC x 3/4 inch

1шт.

20

28046R1

HEX SOC SCREW,#10 - 24 x 5/8"

SCREW - hex socket

4шт.

21

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

22

1265626C92

SWITCH

- 20 degree lift, right hand

1шт.

27

91877C91

SWITCH

- 90 degree lift, left-hand

1шт.

30

1268192C1

BRACKET

- switch control

1шт.

31

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

32

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

33

1265626C92

SWITCH

- hitch, right-hand

1шт.

34

361-31012

HEX SOC SCREW,#10 - 24 x 3/4"

BOLT - hex socket, No. 10 NC x 3/4 inch

2шт.

35

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

2шт.

36

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

37

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

39

245836C1

CABLE

- with connectors, switched power

1шт.
