Запчасти Case IH 900 (9-090) - SEED CHUTE, CYCLO AIR PLANTERS, ALL EXCEPT HORIZONTAL FOLDING PRIOR TO SERIAL NUMBER 9044 (09) - CHASSIS/ATTACHMENTS

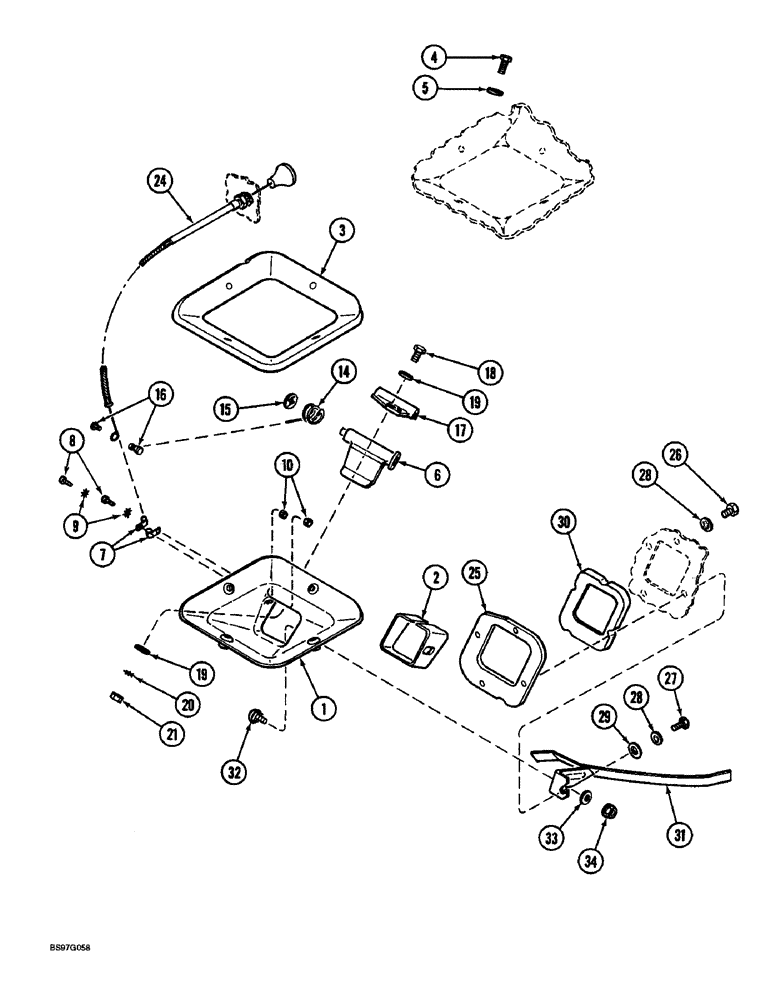

Схема запчастей Case IH 900 - (9-090) - SEED CHUTE, CYCLO AIR PLANTERS, ALL EXCEPT HORIZONTAL FOLDING PRIOR TO SERIAL NUMBER 9044 (09) - CHASSIS/ATTACHMENTS
8
5
18
1
2
32
24
17
19
3
26
16
6
28
7
21
29
28
9
4
31
25
19
15
27
30
10
33
20
14
34

Артикул

Название

Примечание

Количество

1

1250877C2

CHUTE (DOWNWARD)

CHUTE - seed

1шт.

2

141516C1

EXTENSION

- seed chute

1шт.

3

140873C4

SEAL

- chute, top

1шт.

4

276-14724

SELF-TAP SCREW,Hex Hd, 1/4" x 1 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1-1/2 inch

4шт.

5

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

6

141670C3

INSPECTION DOOR

GATE - shutoff

1шт.

7

144841C1

CLAMP

- mounting

2шт.

8

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- machine, pan head slotted, No. 8 x 5/8 inch

2шт.

9

493-11017

LOCK WASHER,Ext-Int Tooth, #8

WASHER - internal-external tooth lock, No.8

2шт.

10

225-14108

NUT,#8-32

- hex, No. 8 NC

4шт.

14

141671C1

SPRING

- shutoff gate

1шт.

15

141718C1

RETAINER

- spring

1шт.

16

144840C1

ELECTRICAL WIRE

STOP - cable

1шт.

17

144948C2

CAP

BRACKET - retaining

1шт.

18

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex head, No. 10 NC x 3/4 inch

2шт.

19

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

4шт.

20

178383

WASHER,Tooth, 0.20" ID x 0.68" OD, Steel, ZND

WASHER - internal/external lock, No. 10

2шт.

21

225-14110

NUT,#10-24

2шт.

24

1980775C1

CABLE

- seed chute gate control

1шт.

25

140872C1

SUPPORT

- mounting

1шт.

26

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

27

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

29

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

- flat, 17/64 x 3/4 x 1/16 inch

1шт.

30

140871C2

SEAL

- support

1шт.

31

145150C2

BAR

- seed leveling

1шт.

32

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

33

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

Выбрано товаров: 29
