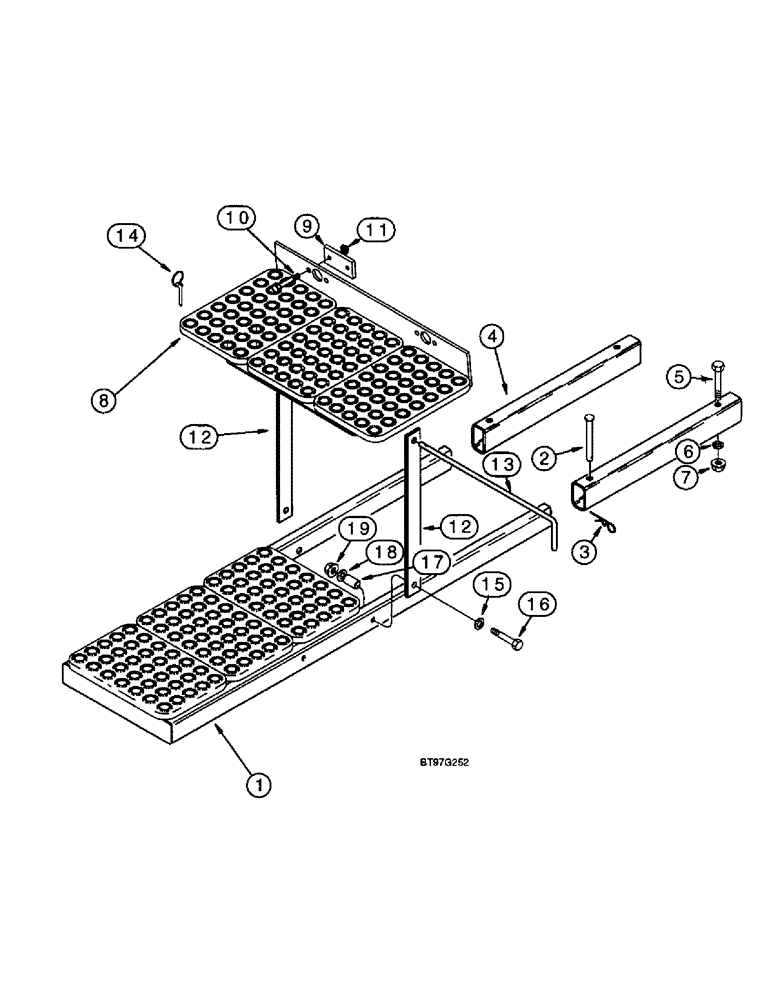

Запчасти Case IH 900 (9-087A) - PLATFORM AND STEPS, CYCLO AIR PLANTERS WITH ONE PIECE MOUNTING FRAME MODULE (09) - CHASSIS/ATTACHMENTS

1

1995912C1

STEP

- hopper

1шт.

2

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch, grade 2

2шт.

3

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

4

1995911C1

TUBE

- step socket

2шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

8

1547155C1

PLATFORM

- hopper

1шт.

9

1268311C1

SPACER

- bar, 32 (1-1/4) x 82 (3-7/32) inch

2шт.

10

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex, 3/8 NC x 3-3/4 inch

4шт.

11

231-5146

FLANGE NUT,3/8"-16

4шт.

12

1547153C2

BAR

- platform support

2шт.

13

1547688C1

PIN

- mounting

1шт.

14

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock

1шт.

15

113-82

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

16

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch

2шт.

17

141730C1

SPACER,10.34mm ID x 19.05mm OD x 7mm L

- step

4шт.

18

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

2шт.

19

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.
