Запчасти Case IH 900 (9-086) - SEED HOPPER STEPS, CYCLO AIR SEMI-MOUNTED, CORN/SOYBEAN SPECAIL (09) - CHASSIS/ATTACHMENTS

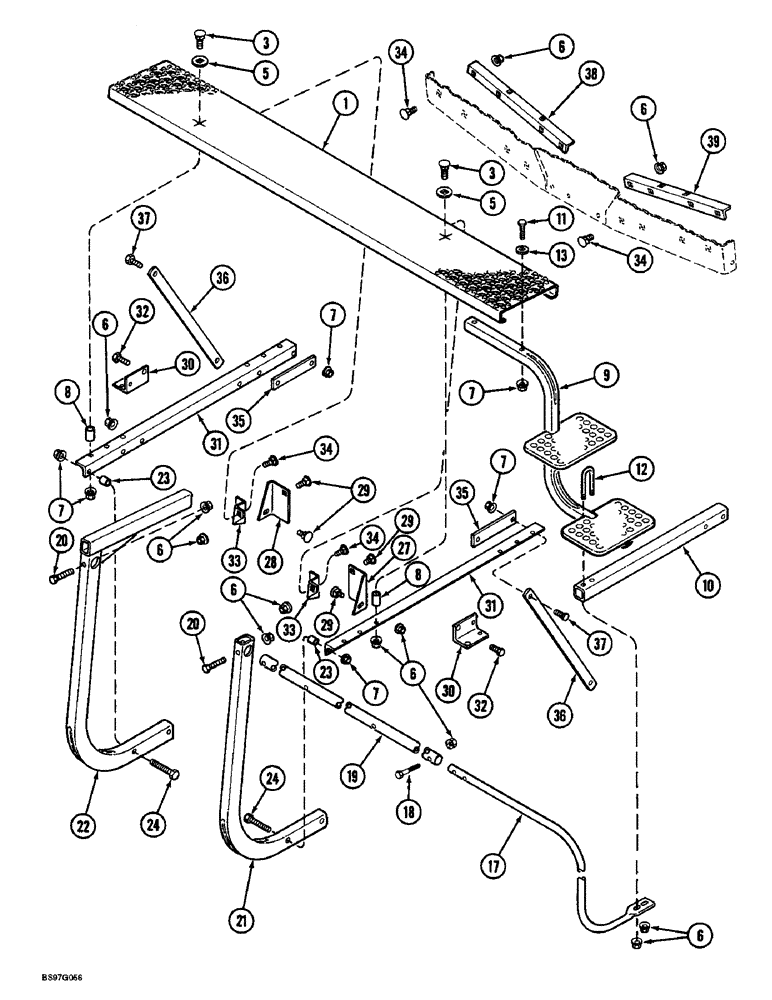

Схема запчастей Case IH 900 - (9-086) - SEED HOPPER STEPS, CYCLO AIR SEMI-MOUNTED, CORN/SOYBEAN SPECAIL (09) - CHASSIS/ATTACHMENTS
9
20
23
34
30
34
5
1
28
38
31
31
7
6
32
36
34
37
6
29
27
11
8
17
7
37
3
22
13
33
29
21
23
18
7
6
7
32
24
8
36
24
33
19
6
6
10
3
12
39
30
29
6
34
35
20
6
5
35
7

Артикул

Название

Примечание

Количество

1

1254131C2

PLATFORM

- hopper

1шт.

11-696

CARRIAGE BOLT,Short NK, 3/8"-16 x 6", G2

BOLT - carriage, 3/8 NC x 6 inch, grade 2

1шт.

3

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

BOLT - carriage, 1/2 NC x 2-3/4 inch

5шт.

22186R1

SQ HOLE WASHER,13/32" x 1 1/2" x .060", Sq Hole

- square hole, 13/32 inch

1шт.

5

498-81007

SQ HOLE WASHER,17/32" x 1 1/2" x .120", Sq Hole

- flat, square hole, 21/32 x 1-1/4 x 1/16 inch

6шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

8

195695R1

SPACER,3/4" X-Strng Pipe x 1 3/4"

- bracket

4шт.

9

1254132C1

PLATFORM

STEP - hopper

1шт.

10

1267962C1

TUBE,877 mm Length

SUPPORT - step

1шт.

11

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

2шт.

12

1268190C2

BOLT,3/8" - 16 x 40mm W x 110mm L

U-BOLT - step support

1шт.

13

495-81161

WASHER,17/32" x 1 1/2" x .060"

- flat, 17/32 x 1-1/2 x 3/64 inch

2шт.

17

1268213C3

ROD

HANDRAIL - step, left-hand

1шт.

17

1268214C3

ROD

HANDRAIL - step, right-hand (Shown)

1шт.

18

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

19

1268212C2

TUBE,34.9 mm ID, 44.4 mm OD

HANDRAIL - step, center

1шт.

20

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

2шт.

21

1268211C2

TUBE,63.5 mm OD, 962, 215 mm Length

SUPPORT - platform, outer

1шт.

22

1277840C1

SUPPORT TUBE

SUPPORT - platform, inner

1шт.

23

M22613

SPACER,1/2" X-Strng Pipe x 1"

- pipe, 1/2 ID x 1 inch

4шт.

24

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

27

1254116C2

SUPPORT

- rear hopper, right-hand

1шт.

28

1254115C2

SUPPORT

- rear hopper, left-hand

1шт.

29

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

4шт.

30

1279027C1

ANGLE

BRACKET - platform retaining

2шт.

31

1254130C2

FUNNEL

BRACKET - step retaining

2шт.

32

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

33

1254129C1

ANGLE

BRACKET - platform support

2шт.

34

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

4шт.

35

1261597C1

BAR

BRACE - platform

2шт.

36

1254119C2

BAR

BRACKET - support

2шт.

37

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

38

1254104C1

ANGLE

BRACKET - step support, left-hand

1шт.

39

1254105C1

ANGLE

BRACKET - step support, right-hand

1шт.

Выбрано товаров: 35
