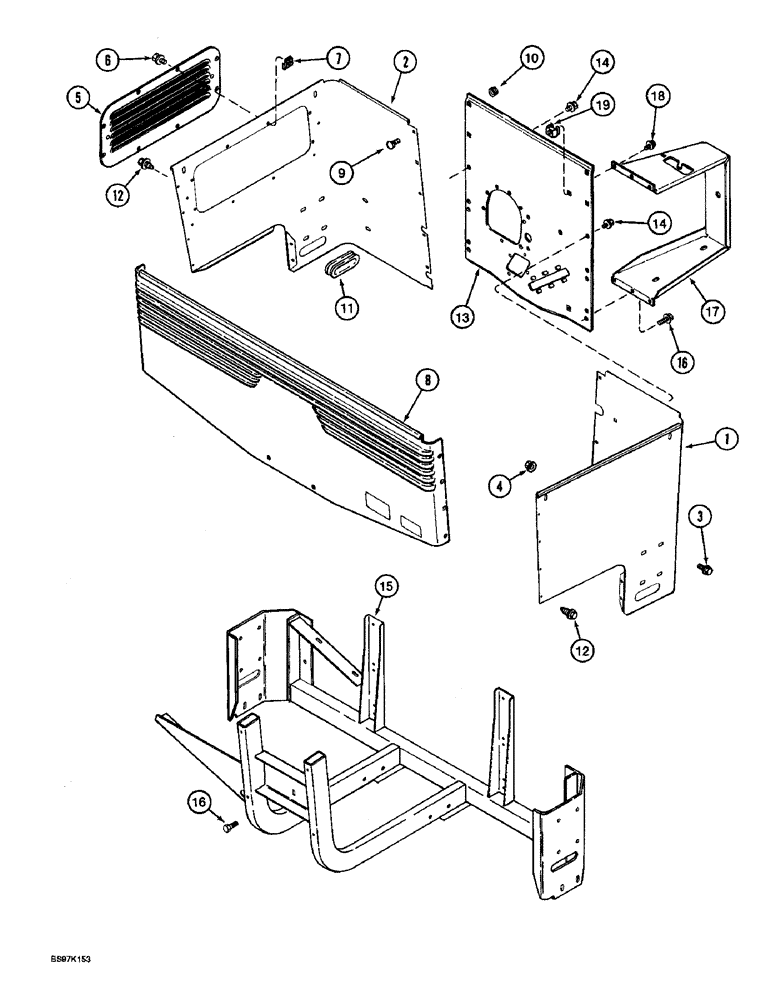

Запчасти Case IH 900 (9-085A) - SEED MODULE HOUSING, CYCLO AIR PLANTERS WITH ONE PIECE MOUNTING FRAME MODULE (09) - CHASSIS/ATTACHMENTS

1

1995900C2

SHEET

PANEL - module, right-hand

1шт.

2

1995901C2

SHEET

PANEL - module, left-hand

1шт.

3

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

12шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

12шт.

5

1263874C1

PANEL

- access

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

7

96183C1

NUT,J, Ret, 5/16"-18

- J-type, 5/16 inch NC

6шт.

8

1546999C3

SHEET

PANEL - module, includes decals, rear

1шт.

149366C4

WARNING DECAL

DECAL - Warning, avoid injury, install the wheel cylinder stops

1шт.

100169C1

CAUTION DECAL

DECAL - Caution, improper unloading can be hazardous

1шт.

321-4311

DECAL

- SMV emblem

1шт.

9

412-612

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 3/4", Gr 2

BOLT - carriage, 3/8 NC x 3/4 inch, grade 2

3шт.

10

231-5146

FLANGE NUT,3/8"-16

3шт.

11

145149C1

GROMMET

- protective

2шт.

12

1327767C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 16mm

- self-tapping, hex washer head, polyseal, 5/16 NC x 5/8 inch

8шт.

13

1986197C1

SHEET

SUPPORT - front panel

1шт.

14

283-24916

SELF-TAP SCREW,Hex Wash Hd, 3/8"-32 x 1"

SCREW - self-tapping, hex washer head, 3/8 NC x 1 inch

14шт.

15

246848A1

FRAME

- module, for service also order 226207A1 bracket below

1шт.

15a

226207A1

ANGLE

BRACKET - gearbox mounting, not shown

1шт.

16

283-24916

SELF-TAP SCREW,Hex Wash Hd, 3/8"-32 x 1"

SCREW - self-tapping, hex washer head, 3/8 NC x 1 inch

4шт.

17

141211C2

SUPPORT

- cutoff wheel

1шт.

18

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

5шт.

19

141217C1

NUT

- retainer, 3/8 inch NC

5шт.
