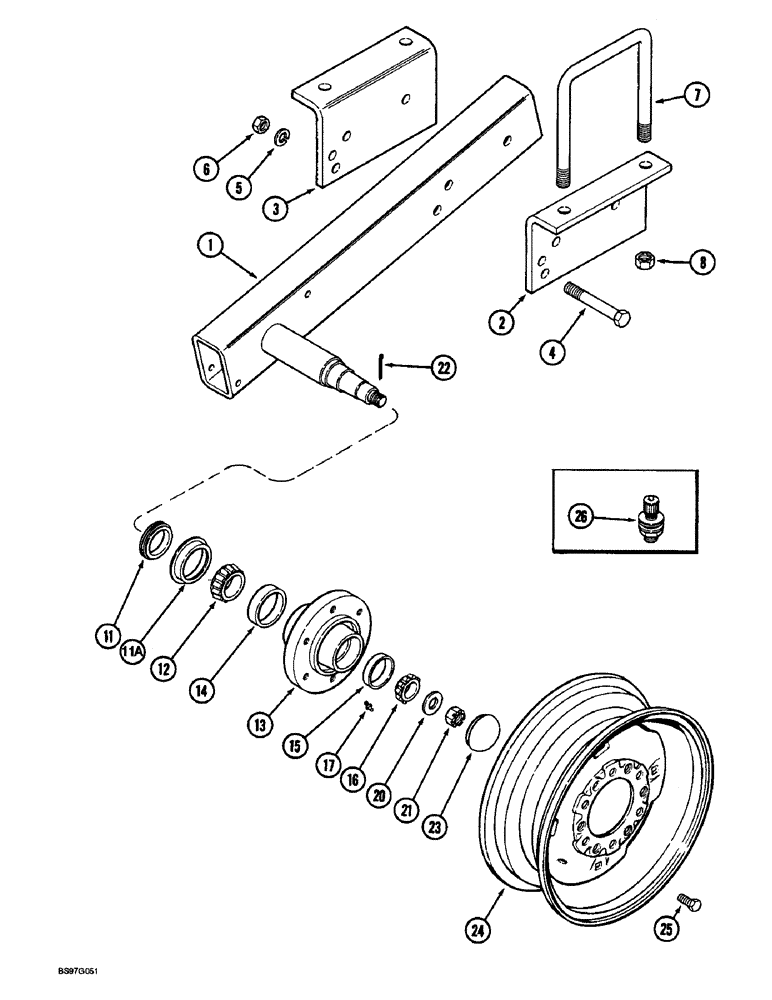

Запчасти Case IH 900 (9-076) - CARRYING WHEELS, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (09) - CHASSIS/ATTACHMENTS

1

97553C2

AXLE SHAFT

SPINDLE - inboard, right-hand (Shown)

1шт.

1

97552C2

AXLE SHAFT

SPINDLE - inboard, left-hand

1шт.

2

1279759C1

ANGLE

- axle mounting, right-hand

2шт.

3

1279696C1

ANGLE

- axle mounting, left-hand

2шт.

4

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

4шт.

5

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

6

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

7

493841R1

U-BOLT

- 7/8 inch NC

4шт.

8

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

8шт.

11

594702R91

SEAL

- oil

2шт.

11a

594703R1

SLEEVE

RING - wear, 1/2 inch wide

2шт.

12

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - tapered roller bearing, 1-5/8 inch ID, inner

2шт.

13

606468R21

HUB

ASSEMBLY - wheel, 6 bolt

2шт.

14

663558R1

BEARING CUP

CUP - tapered roller bearing, 2-57/64 inch OD, inner

2шт.

15

651817R1

BEARING CUP

CUP - tapered roller bearing, outer

2шт.

16

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing, outer

2шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

20

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

- flat, special, hardened

2шт.

21

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted, special, 7/8 inch NC

2шт.

23

663906R1

CAP

- wheel hub

2шт.

24

481344R91

WHEEL

- 356 (14) x 203 mm (8 inch) (For 9.5L x 14 high flotation tire)

2шт.

25

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

24шт.

26

810768C1

VALVE

- inflation

2шт.

22

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.
