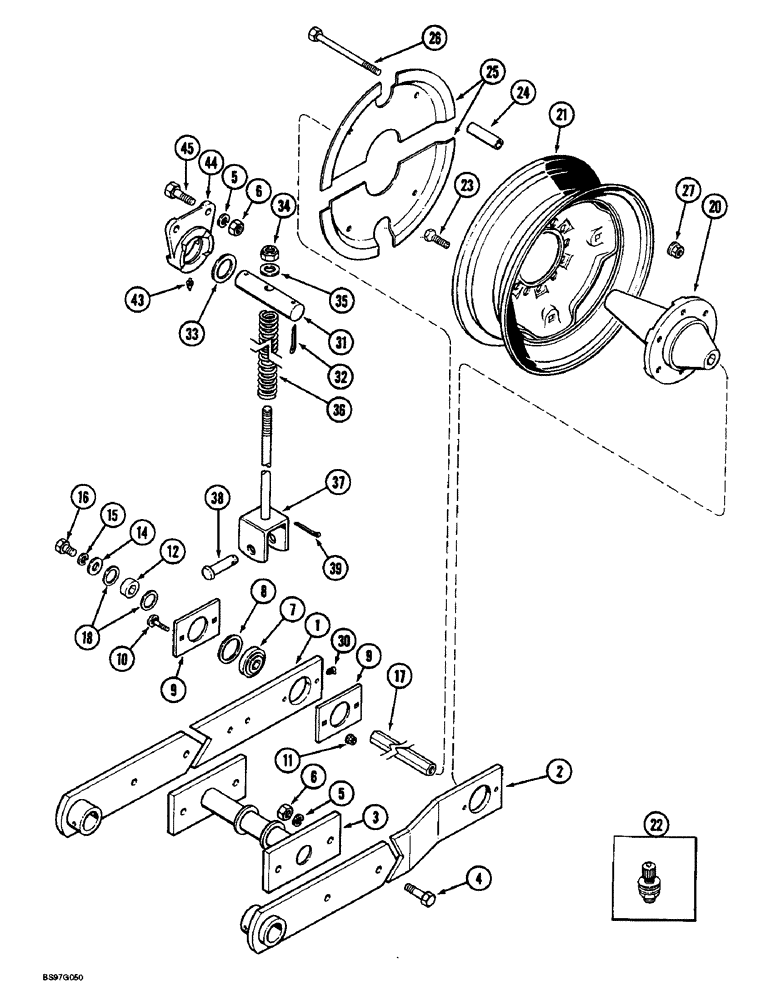

Запчасти Case IH 900 (9-074) - DRIVE WHEELS, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (09) - CHASSIS/ATTACHMENTS

1

91247C2

RAIL

- wheel, straight, outer

2шт.

2

91254C2

RAIL

- wheel, offset, inner

2шт.

3

91242C2

CABLE TIE

TIE - wheel rail

2шт.

4

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

8шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

6

425-1010

NUT,5/8"-11, G5

16шт.

7

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

BEARING - ball

4шт.

8

1279743C1

WASHER

WASHER - bearing spacer

4шт.

9

1250724C1

BAR

BRACKET - bearing

8шт.

10

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT - carriage, 3/8 NC x 1-3/4 inch

8шт.

11

231-5146

FLANGE NUT,3/8"-16

8шт.

12

90376C2

SPACER

- sprocket

2шт.

14

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

1345045C1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

BOLT - special

4шт.

17

90341C3

AXLE

BAR - axle wheel, 333 mm (13-1/8 inch) long

2шт.

18

495-81189

WASHER,1.16" ID x 1.75" OD x 0.03" Thk

- flat, 1-5/32 x 1-3/4 x 1/32 inch

1шт.

20

90343C1

HUB

- wheel

2шт.

21

481344R91

WHEEL

- 356 (14) x 203 mm (8 inch) (For 9.5L x 14 high flotation tire) (12 row wide)

2шт.

21

T53527

WHEEL

- 381 (15) x 127 mm (5 inch) (For 7.60 x 15, 6 ply tire) (12 and 16 row narrow)

2шт.

22

810768C1

VALVE

- inflation, 14 inch wheel

2шт.

22

810769C1

VALVE

- inflation, 15 inch wheel

2шт.

23

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

12шт.

24

1333828C2

SPACER

- 79 mm (3-1/8 inch) long

8шт.

24

1333829C1

SPACER

- 95 mm (3-3/4 inch) long

8шт.

24

1264481C1

SPACER,1/2" Pipe x 2.441"

- 62 mm (2-7/16 inch) long, cover, 15 inch wheel

16шт.

25

1333824C1

COVER

- 14 inch wheel

8шт.

25

1264480C1

COVER

- 15 inch wheel

8шт.

26

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

- hex, 1/2 NC x 8 inch

8шт.

26

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

- hex, 1/2 NC x 6 inch

8шт.

27

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

8шт.

27

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

30

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

2шт.

31

96105C2

ROD

- cylinder pivot

2шт.

32

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

33

L31792

WASHER

- metal

4шт.

34

231-14412

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC, prevailing torque

2шт.

35

495-11081

WASHER,3/4", SAE

2шт.

36

141673C2

SPRING

- drive wheel

2шт.

37

1268255C3

ARM ASSY.

ARM - spring

2шт.

38

439-51248

HEADED PIN,3/4" x 3", G5

PIN - headed, 3/4 x 3 inch

2шт.

39

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

43

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

44

90345C3

BRACKET

- pivot

4шт.

45

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.
