Запчасти Case IH 900 (9-062) - ASSIST WHEELS, CYCLO AIR SEMI-MOUNTED, CORN/SOYBEAN SPECIAL (09) - CHASSIS/ATTACHMENTS

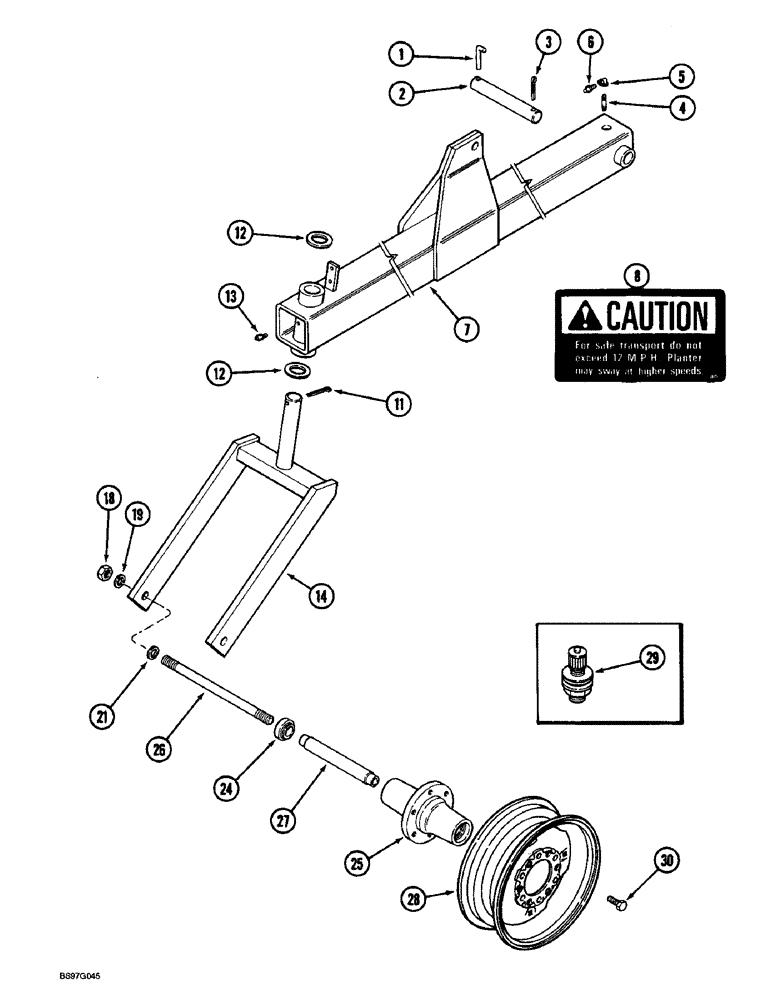

Схема запчастей Case IH 900 - (9-062) - ASSIST WHEELS, CYCLO AIR SEMI-MOUNTED, CORN/SOYBEAN SPECIAL (09) - CHASSIS/ATTACHMENTS
2
7
18
28
19
27
29
8
11
21
30
5
13
6
1
3
24
12
25
14
12
4
26

Артикул

Название

Примечание

Количество

1

491601R3

PIN

- pivot lock

2шт.

2

100054C2

PIN,38.1mm OD x 251mm L

- mounting

2шт.

3

32-3232

COTTER PIN,1/2" x 2"

PIN - cotter, 1/2 x 2 inch

2шт.

4

221-1109

PIPE,Nipple, 1/8" NPT x 2"

NIPPLE - straight, 1/8 PT x 2 inch

2шт.

5

105412

ELBOW,90 Degree, 1/8" NPT

- pipe, 90 degree, 1/8 inch PT

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, short

2шт.

7

1277622C91

TUBE

- assist wheel

2шт.

8

REF

INSTRUCTION

DECAL - caution, safe transport speed (See Figure 9-336)

1шт.

11

432-2440

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

12

462997R2

WASHER

- wear

4шт.

13

219-406

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 15/32 inch

2шт.

14

125563C2

ARM ASSY.

PIVOT - assist wheel

2шт.

18

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

4шт.

19

492-11100

LOCK WASHER,1"

1"

4шт.

21

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

4шт.

24

1973497C1

BALL BEARING,30mm ID x 62mm OD x 24mm W

BEARING - ball

4шт.

25

541757R1

HUB

- wheel

2шт.

26

541759R3

ROD

- axle

2шт.

27

541758R1

TUBE

- spacer, axle rod

2шт.

28

481344R91

WHEEL

- 356 (14) x 203 mm (8 inch) (For 9.5L x 14 high flotation tire)

2шт.

29

810768C1

VALVE

- inflation, steel

2шт.

30

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

12шт.

Выбрано товаров: 22
