Запчасти Case IH 900 (9-060) - ASSIST WHEELS (09) - CHASSIS/ATTACHMENTS

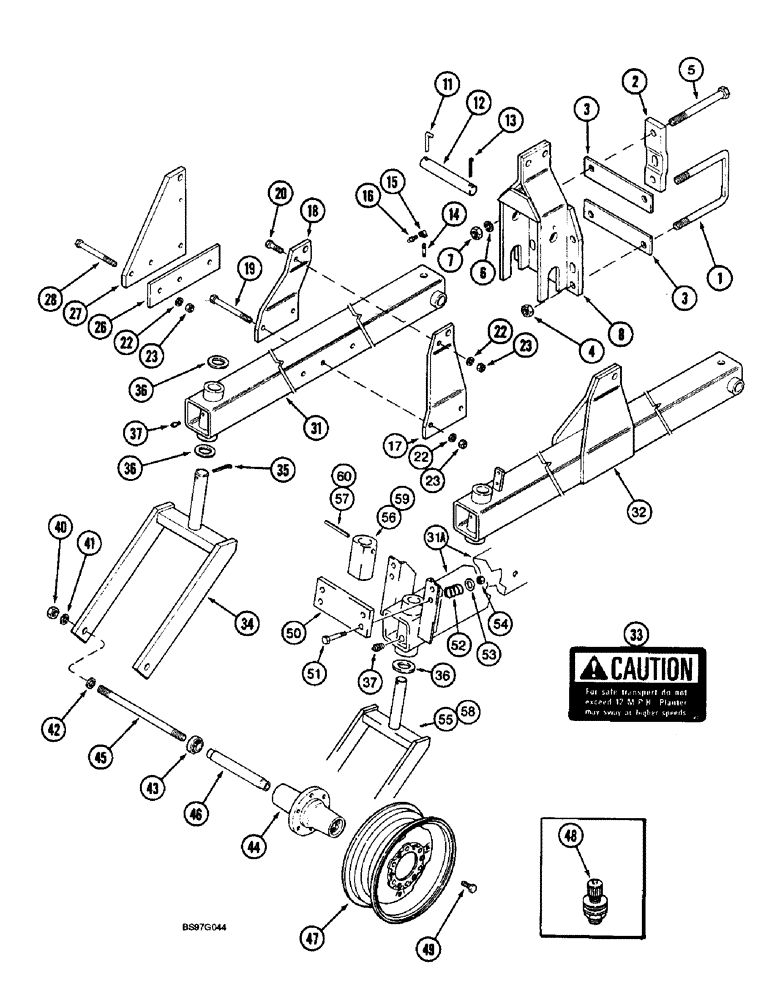

Схема запчастей Case IH 900 - (9-060) - ASSIST WHEELS (09) - CHASSIS/ATTACHMENTS
7
42
16
45
41
51
22
22
22
8
4
52
37
3
60
46
56
5
40
48
44
54
57
32
18
31
33
3
35
36
43
49
23
36
13
47
11
50
27
55
23
26
53
6
20
28
12
34
59
17
14
31a
58
1
36
23
37
19
2
15

Артикул

Название

Примечание

Количество

1

58152C2

U-BOLT,U, 1" - 8 x 231mm

- 1 inch NC

1шт.

All except Cyclo Air 6 and 12 row narrow.

1шт.

2

125515C1

SUPPORT

- tool bar

2шт.

Cyclo Air 8 row wide and Plate 12 row narrow.

1шт.

3

125706C1

BAR

- filler

4шт.

Cyclo Air 8 row wide and Plate 12 row narrow.

1шт.

4

329-1016

NUT,1"-8, G8

1шт.

5

413-16160

BOLT,Hex, 1" - 8 x 10", Gr 5

- hex, 1 NC x 10 inch

1шт.

Cyclo Air 8 row wide and Plate 12 row narrow.

1шт.

6

492-11100

LOCK WASHER,1"

1"

4шт.

Cyclo Air 8 row wide and Plate 12 row narrow.

1шт.

7

329-1016

NUT,1"-8, G8

4шт.

Cyclo Air 8 row wide and Plate 12 row narrow.

1шт.

8

149556C2

BRACKET

- assist wheel pivot

2шт.

All except Cyclo Air 6 and 12 row narrow.

1шт.

11

491601R3

PIN

- pivot lock

2шт.

12

100054C2

PIN,38.1mm OD x 251mm L

- mounting (All except Cyclo Air 12 row narrow)

2шт.

12

1250685C2

PIN,38.1mm OD x 264mm L

- pivot (Cyclo Air 12 row narrow)

2шт.

13

32-3232

COTTER PIN,1/2" x 2"

PIN - cotter, 1/2 x 2 inch

2шт.

14

221-1109

PIPE,Nipple, 1/8" NPT x 2"

NIPPLE - straight, 1/8 PT x 2 inch

2шт.

15

105412

ELBOW,90 Degree, 1/8" NPT

- pipe, 90 degree, 1/8 inch PT

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

17

149558C2

SUPPORT

- cylinder anchor, right-hand

2шт.

Cyclo Air 8 row wide and Plate 12 row narrow.

1шт.

18

149557C2

SUPPORT

- cylinder anchor, left-hand

2шт.

Cyclo Air 8 row wide and Plate 12 row narrow.

1шт.

19

326-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

4шт.

Cyclo Air 8 row wide and Plate 12 row narrow.

1шт.

20

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

2шт.

Cyclo Air 8 row wide and Plate 12 row narrow.

1шт.

22

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

Cyclo Air 8 row wide, and all 12 row narrow.

1шт.

23

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

6шт.

Cyclo Air 8 row wide, and all 12 row narrow.

1шт.

26

1264315C1

BAR

- tube support (Cyclo Air 12 row narrow)

2шт.

27

149564C2

SUPPORT

- cylinder anchor (Cyclo Air 12 row narrow)

2шт.

28

326-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

6шт.

31

1267964C92

TUBE ASSY.

TUBE - assist wheel (Includes item 33)

2шт.

Cyclo Air 8 row wide, and all 12 row narrow.

1шт.

31a

1267964C94

TUBE,134 mm Length

ARM - assist wheel, includes decal

2шт.

Cyclo Air 8 row wide, and all 12 row narrow.

1шт.

32

1277622C92

TUBE

ARM - assist wheel, includes decal (Cyclo Air 8 row narrow and 6 row)

2шт.

33

1264465C1

PRODUCT GRAPHIC

DECAL - Caution, for safe transport (See Figure 9-336)

1шт.

34

125563C2

ARM ASSY.

PIVOT - assist wheel, if used

2шт.

34

222679A1

YOKE

ARM - assist wheel pivot, if used

2шт.

35

432-2440

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

36

462997R2

WASHER

- wear

4шт.

37

219-406

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 15/32 inch

2шт.

40

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

4шт.

41

492-11100

LOCK WASHER,1"

1"

4шт.

42

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

4шт.

43

1973497C1

BALL BEARING,30mm ID x 62mm OD x 24mm W

BEARING - ball

4шт.

44

541757R1

HUB

- wheel

2шт.

45

541759R3

ROD

- axle

2шт.

46

541758R1

TUBE

- spacer, axle rod

2шт.

47

481344R91

WHEEL

- 356 (14) x 203 mm (8 inch) (For 9.5L x 14 high flotation tire)

2шт.

48

810768C1

VALVE

- inflation, steel

2шт.

49

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

12шт.

50

137881A1

BAR

- cam follower

2шт.

51

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

52

137969A1

SPRING

- assist wheel detent

8шт.

53

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

8шт.

54

231-41410

NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

8шт.

55

137873A1

ARM ASSY.

PIVOT - assist wheel, use with items 56 cam and 57 roll pin

2шт.

56

137880A1

CAM

- snubber, use with items 55 pivot and 57 roll pin

2шт.

57

438-32448

PIN,3/8" x 3", Coiled

use with items 55 pivot and 56 cam 3/8" x 3", Coiled

2шт.

58

222679A1

YOKE

ARM - assist wheel pivot, use with items 59 cam and 60 roll pin

2шт.

59

222677A1

CAM

- snubber, use with items 58 pivot and 60 roll pin

2шт.

60

438-34048

PIN,5/8" x 3", Coiled

use with items 58 pivot and 59 cam 5/8" x 3", Coiled

2шт.

Выбрано товаров: 69
