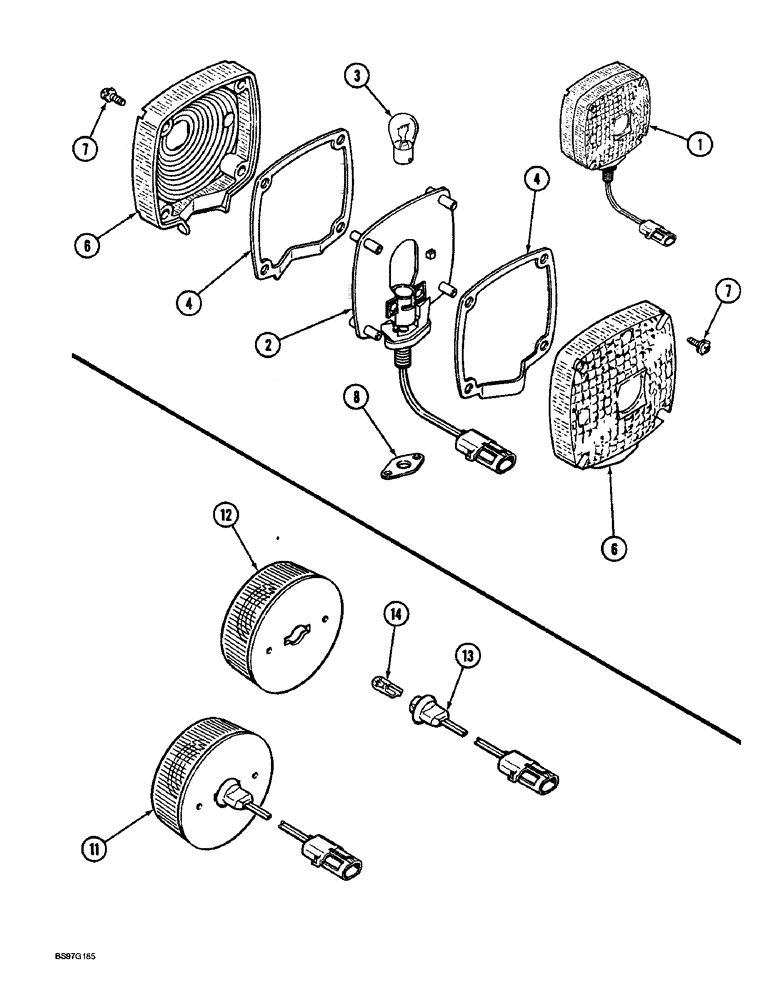

Запчасти Case IH 900 (4-08) - TURN SIGNAL LAMP CYCLO AIR & PLATE PLANTERS (04) - ELECTRICAL SYSTEMS

192052A1

REPAIR KIT

KIT - lamp, two wire, includes instructions, Includes: Ref. 1 - 9

2шт.

1

91913C91

LIGHT

LAMP ASSEMBLY - turn signal, order kit 192052A1, Includes: Ref. 2 - 8

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - lamp, order kit 192052A1

1шт.

3

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

4

A43731

GASKET

- sealing, lens

2шт.

A44202

KIT

- lens, Includes: Ref. 6 & 7

1шт.

6

NSS

NOT SOLD SEPARAT

LENS - lamp, amber

2шт.

7

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - self-tapping, round head Phillips, No. 8 NC x 5/8 inch

8шт.

8

F63435

GASKET

- lamp mounting

1шт.

9

377630C1

CONNECTOR, ELEC

CONNECTOR - lamp assembly, not shown

2шт.

11

91986C91

LIGHT

LAMP ASSEMBLY - tail, Includes: Ref. 12 - 14, cyclo air & plate planters

1шт.

12

NSS

NOT SOLD SEPARAT

BASE - lamp (Order 91986C91), tail cyclo air & plate planters

1шт.

13

91934C1

SOCKET

ASSEMBLY - bulb, Includes: Ref. 14, tail lamp cyclo air & plate planters

1шт.

14

D71346

TAIL LAMP,12V

BULB - lamp, No. 168, tail cyclo air & plate planters

1шт.
