Запчасти Case IH 900 (9-056) - ROW MARKER, CYCLO AIR HORIZONTAL FOLDING, 12 ROW WIDE & 16 ROW NARROW (09) - CHASSIS/ATTACHMENTS

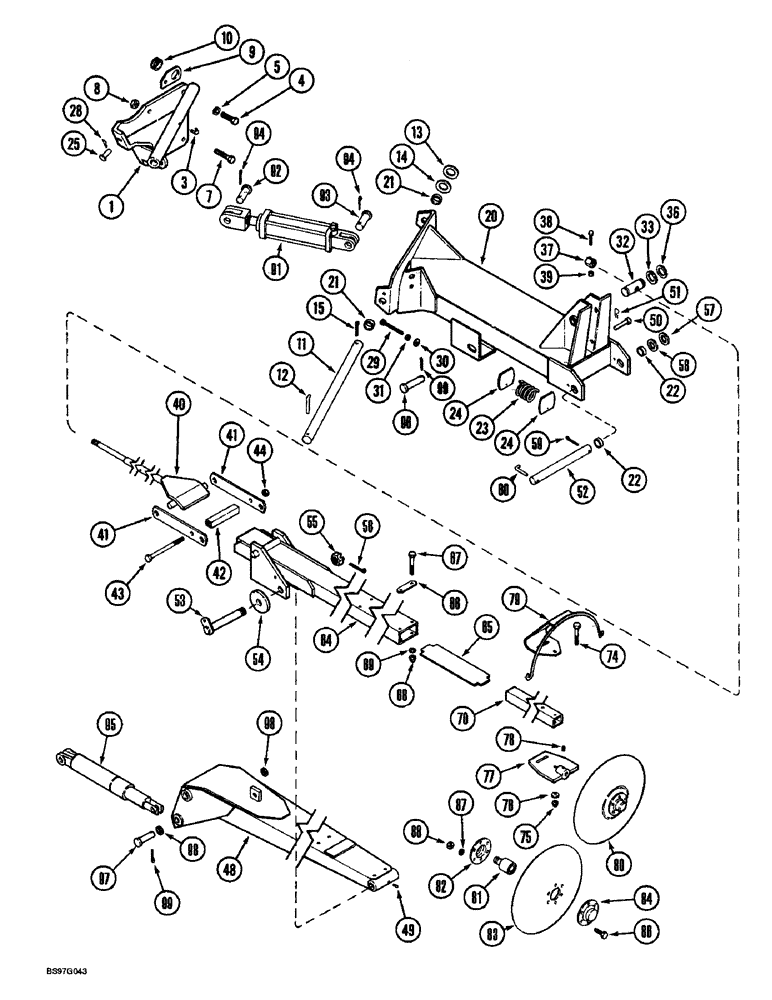

Схема запчастей Case IH 900 - (9-056) - ROW MARKER, CYCLO AIR HORIZONTAL FOLDING, 12 ROW WIDE & 16 ROW NARROW (09) - CHASSIS/ATTACHMENTS
82
95
11
70
41
81
42
96
31
37
4
50
22
97
74
24
65
23
15
57
52
1
80
48
99
89
84
41
22
21
29
21
93
94
80
25
36
99
9
92
83
86
87
98
39
30
68
98
58
75
8
79
91
64
14
20
77
12
78
49
88
88
54
33
43
94
32
38
87
13
24
59
3
53
55
56
7
44
51
78
28
40
10
5

Артикул

Название

Примечание

Количество

1

1268032C1

BRACKET

- mounting, left-hand

1шт.

1

1268033C1

BRACKET

- mounting, right-hand (Shown)

1шт.

3

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

2шт.

4

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

2шт.

5

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

7

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

6шт.

8

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

6шт.

9

1268238C1

BAR

STRAP - hose

2шт.

10

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber, 1-3/4 inch groove diameter

2шт.

11

1268126C1

ROD

PIN - pivot, 1-1/2 x 21-3/16 inch

2шт.

12

491601R3

PIN

- pivot lock

2шт.

13

495-21162

WASHER,1 1/2"

- flat, 1-5/8 x 3-1/2 x 3/16

2шт.

14

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

- flat, 1-17/32 x 2-1/2 x 3/64 inch

2шт.

15

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

2шт.

20

1279401C92

TUBE

ASSEMBLY - marker, inner, left-hand, with decal (Includes Ref. 21 and 22)

1шт.

20

1279402C92

TUBE ASSY.

TUBE ASSEMBLY - marker, inner, right-hand, with decal (Shown)

1шт.

REF

INSTRUCTION

DECAL - warning, marker (See Page 9-337)

1шт.

21

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

- 1-1/2 ID x 1-3/4 OD x 3/4 inch

2шт.

22

1268053C1

BUSHING,38.1mm ID x 44.45mm OD x 19.05mm L

- pivot

2шт.

23

NA62682

SPRING

- tension

2шт.

24

1268125C1

STOP

- spring

4шт.

25

439-11032

HEADED PIN,15.88mm OD x 50.8mm L

PIN - headed, 5/8 x 2 inch, grade 2

2шт.

28

1978738C1

HAIR PIN COTTER

3/16"

2шт.

29

485555R1

BOLT,Hex, 1/2" - 13 x 4 1/4"

- hex, full thread, 1/2 NC x 4-1/4 inch

2шт.

30

495-81254

WASHER,13.49mm ID x 25.4mm OD x 1.7mm Thk

- flat, 17/32 x 1 x 3/64 inch

2шт.

31

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

32

1268261C1

TRUNNION

- marker link

2шт.

33

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch

4шт.

36

100-16150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

4шт.

37

1279144C1

NUT

- marker link

2шт.

38

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

2шт.

39

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

40

1268064C2

LINK ASSY.

LINK - support

2шт.

41

1268063C1

BAR

- link, actuating

4шт.

42

1268323C1

TUBE,156 mm Length

- spacer

2шт.

43

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

2шт.

44

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

2шт.

48

1279404C93

ARM ASSY.

ARM - marker, with decal

2шт.

REF

INSTRUCTION

DECAL - warning, marker (See Page 9-337)

1шт.

49

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

50

496496R1

HEADED PIN,5/8" x 2 3/4"

PIN - clevis, 5/8 x 2-3/4 inch

2шт.

51

1978738C1

HAIR PIN COTTER

3/16"

2шт.

52

1268127C1

PIN,31.7mm OD x 325mm L

- pivot, 1-1/4 x 12-13/16 inch

2шт.

53

1268316C1

PIN

- lock

2шт.

54

1268322C1

WASHER

WASHER - spacer

4шт.

55

519250R1

SLOTTED NUT

- hex, slotted, 1-1/4 inch NF

2шт.

56

432-836

COTTER PIN,1/8" x 2 1/4"

1/8" x 2 1/4"

2шт.

57

495-21138

WASHER,1 1/4"

- flat, 1-3/8 x 3 x 5/32 inch

2шт.

58

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

2шт.

59

432-2432

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

2шт.

60

813175C2

LOCK PIN,9.5mm OD

PIN - special

2шт.

64

1279514C1

FUNNEL

FRAME - marker, lower

2шт.

65

1268321C1

BAR

SHIM - support

4шт.

66

1268067C1

BAR

- washer

8шт.

67

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

8шт.

68

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

69

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

8шт.

70

1268052C2

TUBE,1550 mm Length

ARM - adjusting, marker, 1550 mm (61 inch) long

2шт.

74

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

75

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

76

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

8шт.

77

1277644C1

PLATE

- adjusting

2шт.

78

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch, cup point

2шт.

79

1279232C1

BRACKET

- guard

2шт.

80

1279235C1

DISC

- marker

2шт.

81

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING - ball

1шт.

82

468009R1

RETAINER

HOUSING - bearing, inner

1шт.

83

468011R1

DISC

- marker, 16 inch

1шт.

84

487081R1

COVER

HOUSING - bearing, outer

1шт.

NSS

NOT SOLD SEPARAT

RIVET - 5/16 x 3/4 inch (Not shown)(Order Ref. 86 through 88)

6шт.

86

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

87

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

88

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

12шт.

91

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke, marker (See Page 8-71)

2шт.

92

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

2шт.

93

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

94

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

95

REF

INSTRUCTION

CYLINDER ASSEMBLY - marker, 51 (2) x 203 mm (8) inch (See Page 8-63)

2шт.

96

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

PIN - headed, 1 x 4-1/4 inch, grade 2

2шт.

97

439-11656

HEADED PIN,25.4mm OD x 88.9mm L

PIN - headed, 1 x 3-1/2 inch, grade 2

2шт.

98

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

- flat, 1-1/32 x 1-1/2 x 1/32 inch

4шт.

99

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.
