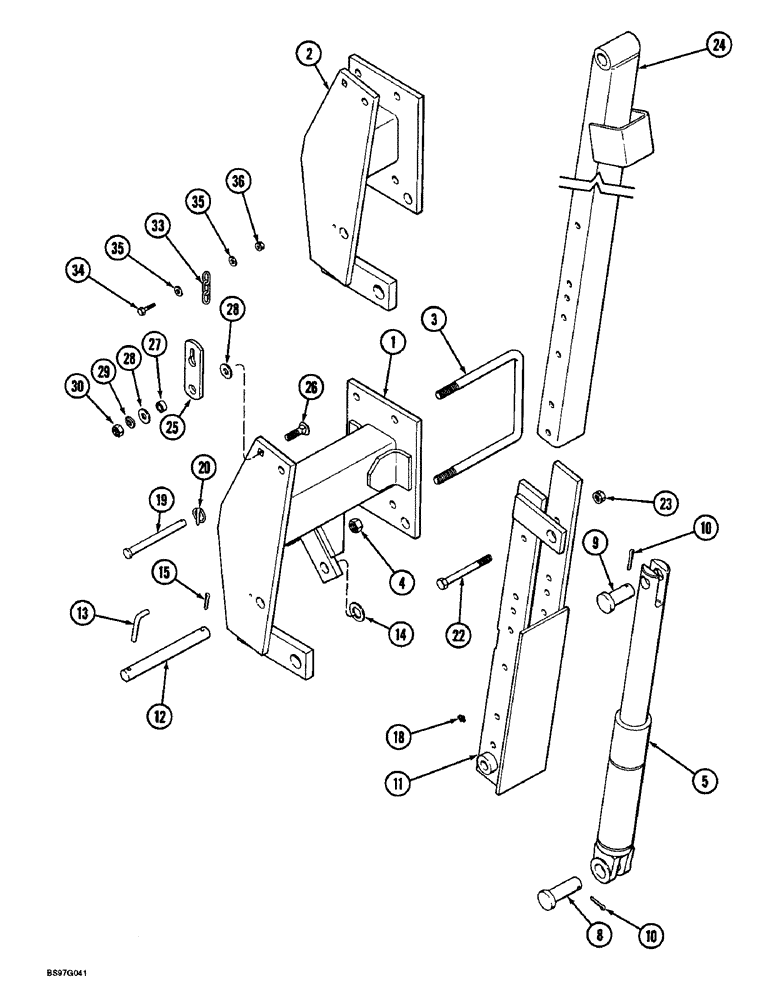

Запчасти Case IH 900 (9-050) - ROW MARKER INNER SECTION (09) - CHASSIS/ATTACHMENTS

1

144877C3

BRACKET

- pivot, marker, long, right-hand (Shown) (All except vertical folding)

1шт.

1

133979C3

BRACKET

- pivot, marker, short, left-hand (All except vertical folding and corn/soybean special)

1шт.

2

100235C3

BRACKET

- pivot, marker, short, right-hand (Shown)(Vertical folding)

1шт.

2

100234C3

BRACKET

- pivot, marker, long, left-hand (Vertical folding and corn/soybean special)

1шт.

3

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch (All except Plate mounted 6 row wide and 8 row narrow)

4шт.

3

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

- 5/8 inch NC, 5 x 7 inch

4шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, marker (See Page 8-63)

2шт.

8

439-51648

HEADED PIN,1" x 3"

PIN - headed, 1 x 3 inch

2шт.

9

439-11639

HEADED PIN,1" x 2 7/16"

PIN - headed, 1 x 2-7/16 inch, grade 2

2шт.

10

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

11

1277690C1

ARM

- pivot, right-hand (Shown)

1шт.

11

1277689C1

ARM

- pivot, left-hand

1шт.

12

100573C2

PIN,22.23mm OD x 210.8mm L

- 7/8 x 8-5/16 inch, arm

2шт.

13

813175C2

LOCK PIN,9.5mm OD

PIN - special

2шт.

14

495-81056

WASHER,29/32" x 1 1/2" x 3/64

- flat, 29/32 x 1-1/2 x 3/64 inch

2шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

18

219-406

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 15/32 inch

2шт.

19

439-5892

HEADED PIN,1/2" x 5 3/4", G5

PIN - headed, 1/2 x 5-3/4 inch

2шт.

20

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock

2шт.

22

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

6шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

24

140795C93

TUBE

ARM - marker, end, includes decal (12 row narrow)

1шт.

140795c93 oal 100.5"

1шт.

24

140796C93

TUBE,592 mm Length

ARM - marker, end, includes decal (6 row wide, 8 row narrow, and corn/soybean special)

1шт.

140796c93 oal 63.89"

1шт.

24

140797C93

TUBE,592 mm Length

ARM - marker, end, includes decal (8 row wide)

1шт.

140797c93 oal 79.92"

1шт.

REF

INSTRUCTION

DECAL - warning, marker (See Page 9-337)

1шт.

25

125789C1

BAR

- chain pivot

2шт.

26

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

2шт.

27

546587R2

BUSHING

- 17/32 ID x 11/32 inch long, link

2шт.

28

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

30

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

33

493952R1

CHAIN (AG)

CHAIN - marker (6 row wide and 8 row narrow)

2шт.

33

489767R92

CHAIN (AG)

CHAIN - marker (Corn/soybean special, 8 row wide, and 12 row narrow)

2шт.

35

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

36

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

34

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
