Запчасти Case IH 900 (9-046) - ROW MARKER, CYCLO AIR AND PLATE PLANTERS, 6 ROW NARROW AND 4 ROW (09) - CHASSIS/ATTACHMENTS

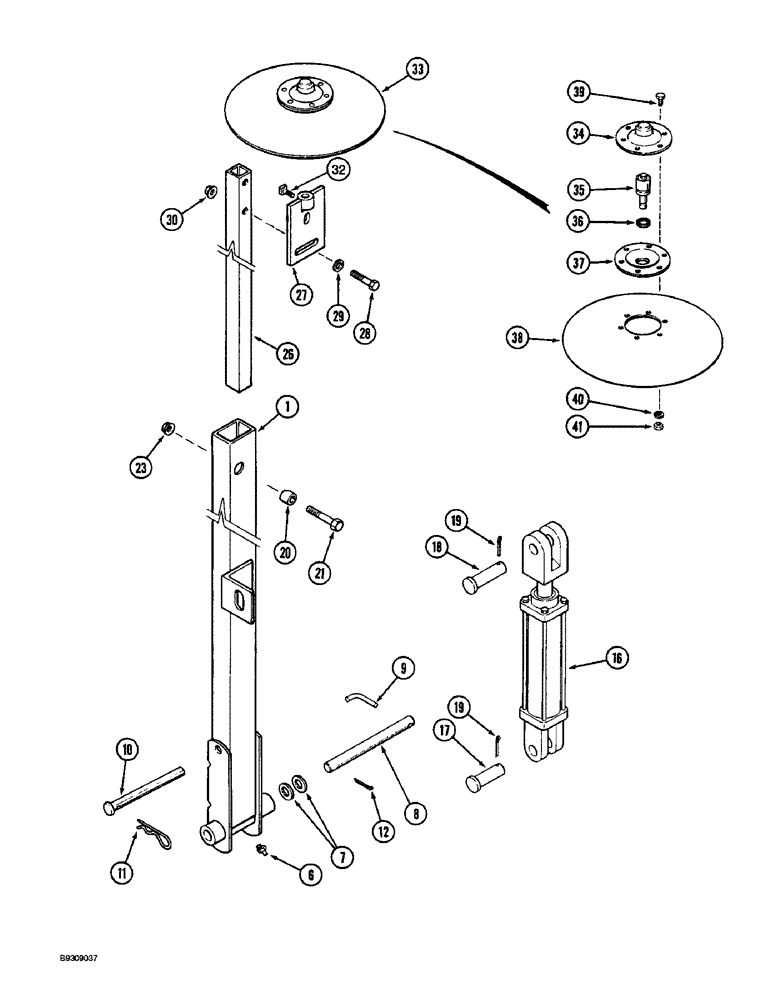

Схема запчастей Case IH 900 - (9-046) - ROW MARKER, CYCLO AIR AND PLATE PLANTERS, 6 ROW NARROW AND 4 ROW (09) - CHASSIS/ATTACHMENTS
19
39
17
7
16
28
33
9
1
39
32
6
35
37
19
10
8
30
1
16
27
38
11
12
23
8

Артикул

Название

Примечание

Количество

1

95839C2

TUBE

ARM - marker, inner, includes decal, long, (Shown)(4 row wide and 6 row narrow)

2шт.

1

95838C1

TUBE

ARM - marker, inner, includes decal (4 row narrow and 4 row adjustable)

2шт.

REF

INSTRUCTION

DECAL - warning, marker (See Page 9-337)

1шт.

6

219-406

LUBE NIPPLE,3/16" NPTF

2шт.

7

495-81056

WASHER,29/32" x 1 1/2" x 3/64

1шт.

8

1263878C1

PIVOT PIN

PIN - pivot

2шт.

9

813175C2

LOCK PIN,9.5mm OD

special

2шт.

10

1263946C1

HEADED PIN

retaining

2шт.

11

1978738C1

HAIR PIN COTTER

3/16"

2шт.

12

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, marker (See Page 8-61)

2шт.

17

439-51648

HEADED PIN,1" x 3"

2шт.

18

39-51652

HEADED PIN,1" x 3 1/4"

(4 row)

2шт.

19

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

20

89200C1

TUBE,13.5 mm ID x 31.7 mm OD x 20 mm L

CLAMP - adjusting, marker tube

2шт.

21

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

26

1263858C1

TUBE,565 mm Length

ARM - marker, outer

2шт.

26

1263882C1

TUBE,1060 mm Length

ARM - marker, outer (4 row wide and 6 row narrow)

2шт.

26

96259C1

TUBE

- outer (4 row adjustable)

2шт.

27

1279601C1

LARGE PLATE

disc adjusting

2шт.

28

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

4шт.

29

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

30

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

32

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

cup point

2шт.

33

1264358C1

DISC,13"

ASSEMBLY - marker

2шт.

34

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

outer

1шт.

35

478034R91

BEARING ASSY,30mm OD x 82.53mm L

ball

1шт.

36

480679R1

WASHER

- felt

1шт.

37

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

inner

1шт.

38

469372R1

DISC,13"

- marker

1шт.

NSS

NOT SOLD SEPARAT

RIVET - 5/16 x 3/4 inch (Not shown) (Order Ref. 39 through 41)

6шт.

39

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

40

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

41

425-105

NUT,5/16"-18, G5

12шт.

Выбрано товаров: 35
