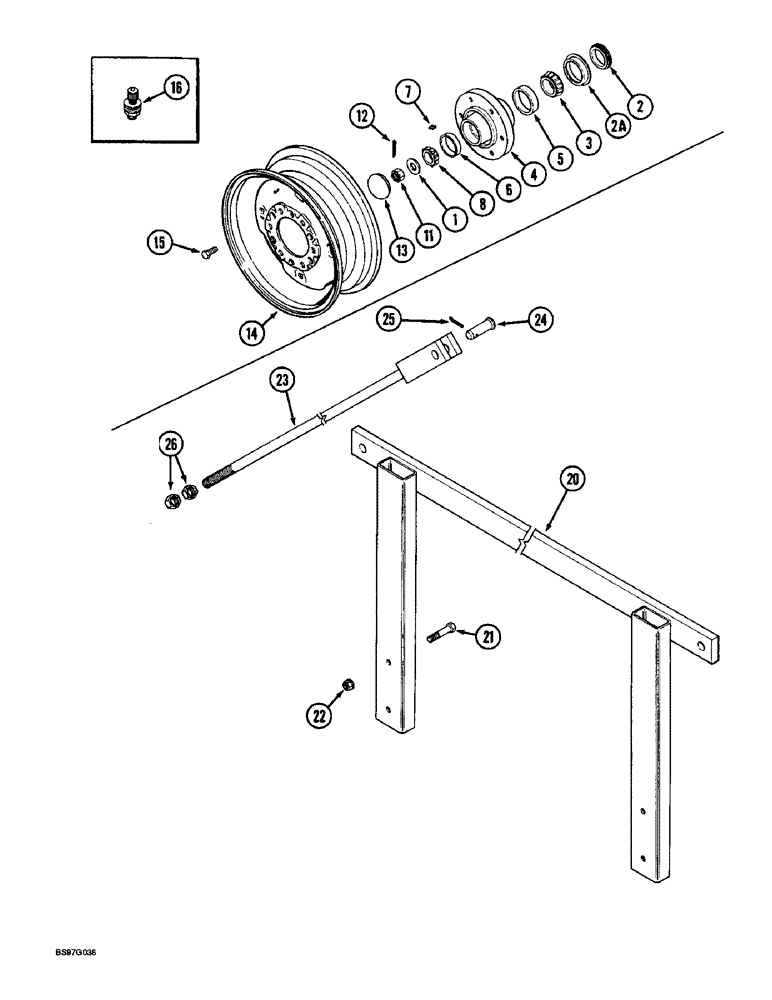

Запчасти Case IH 900 (9-038) - ENDWISE TRANSPORT HUB AND WHEEL, CYCLO AIR TRAILING, 12 ROW & 8 ROW PLATE TRAILING, 8 ROW NARROW (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
469873R1
WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk
- flat, special, hardened
1шт.
2
594702R91
SEAL
- oil
1шт.
2a
594703R1
SLEEVE
RING - wear, 1/2 inch wide
1шт.
3
663557R91
BEARING ASSY,1.625" ID x 2.892" OD x 0.77"
CONE - tapered roller bearing, 1-5/8 inch ID, inner
1шт.
4
606468R21
HUB
ASSEMBLY - wheel, 6 bolt
1шт.
5
663558R1
BEARING CUP
CUP - tapered roller bearing, 2-57/64 inch OD, inner
1шт.
7
219-87
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap
1шт.
11
70120D
SLOTTED NUT,7/8"-14
NUT - hex, slotted, special, 7/8 inch NC
1шт.
12
432-828
COTTER PIN,1/8" x 1 3/4"
PIN, SPLIT (COTTER), 1/8" x 1 3/4"
1шт.
13
663906R1
CAP
- wheel hub
1шт.
14
481344R91
WHEEL
- 356 (14) x 203 mm (8 inch)
1шт.
15
549962R1
BOLT,1 1/2" - 20 x 1 1/2", Class 3
- hex conical, 1/2 NF x 1-5/32 inch
6шт.
16
810768C1
VALVE
- inflation
1шт.
20
149395C1
SUPPORT
FRAME - support, endwise transport
1шт.
Ref. 20 thru 26 are for CYCLO AIR Trailing, 12 row narrow models.
1шт.
21
413-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
- hex, 5/8 NC x 2-3/4 inch
4шт.
Ref. 20 thru 26 are for CYCLO AIR Trailing, 12 row narrow models.
1шт.
22
232-51310
FLANGE NUT,Flg, USR, 5/8"-12
- hex serrated flange, 5/8 inch NC, grade 8
4шт.
Ref. 20 thru 26 are for CYCLO AIR Trailing, 12 row narrow models.
1шт.
23
149399C2
ARM ASSY.
ROD - support frame
2шт.
Ref. 20 thru 26 are for CYCLO AIR Trailing, 12 row narrow models.
1шт.
24
439-51648
HEADED PIN,1" x 3"
PIN - headed, 1 x 3 inch
2шт.
Ref. 20 thru 26 are for CYCLO AIR Trailing, 12 row narrow models.
1шт.
25
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1-1/2"
2шт.
Ref. 20 thru 26 are for CYCLO AIR Trailing, 12 row narrow models.
1шт.
26
425-1016
NUT,1"-8, G5
- hex, 1 inch NC
4шт.
Ref. 20 thru 26 are for CYCLO AIR Trailing, 12 row narrow models.
1шт.
Выбрано товаров: 29
