Запчасти Case IH 900 (9-036) - ENDWISE TRANSPORT AXLE, CYCLO AIR TRAILING, 12 ROW NARROW & 8 ROW PLATE TRAILING, 8 ROW NARROW (09) - CHASSIS/ATTACHMENTS

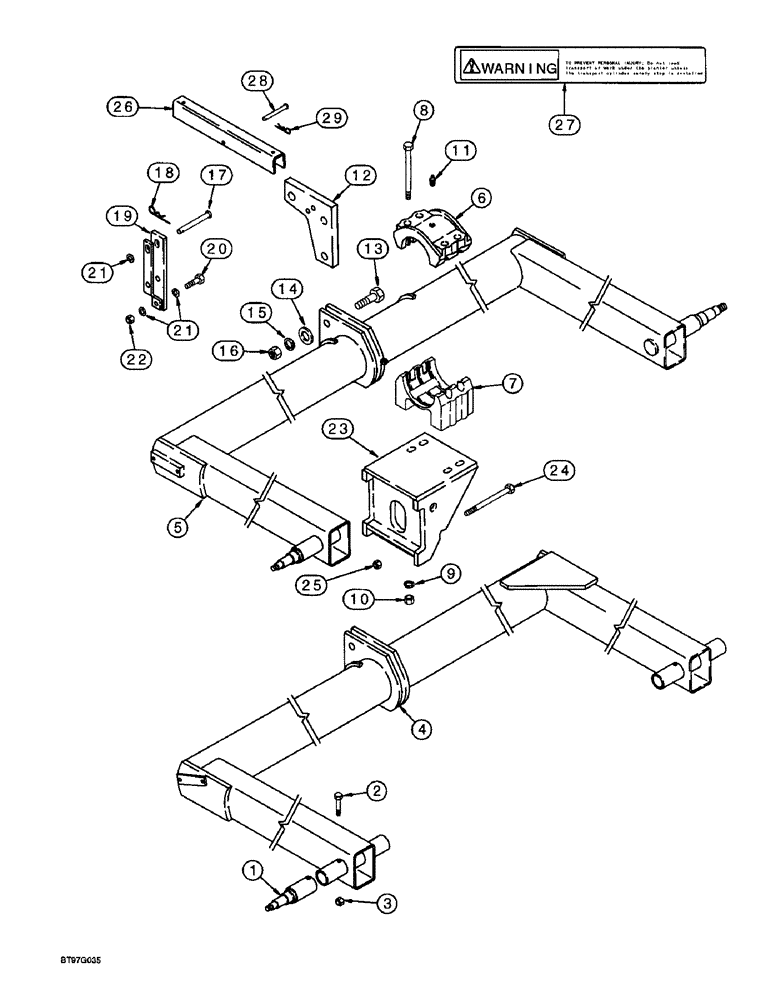

Схема запчастей Case IH 900 - (9-036) - ENDWISE TRANSPORT AXLE, CYCLO AIR TRAILING, 12 ROW NARROW & 8 ROW PLATE TRAILING, 8 ROW NARROW (09) - CHASSIS/ATTACHMENTS
3
12
10
16
26
5
28
14
21
8
11
7
25
27
17
29
13
2
24
22
21
9
1
23
6
19
18
4
20
15

Артикул

Название

Примечание

Количество

1

96227C1

SPINDLE

- wheel, transport axle (12 row narrow)

4шт.

2

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch (12 row narrow)

4шт.

3

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC (12 row narrow)

4шт.

4

147476C4

FRAME

AXLE - transport (12 row narrow)

1шт.

5

91358C1

FRAME ASSY

AXLE - transport (8 row)

1шт.

1261284C1

BLOCK

ASSEMBLY - transport tube bearing

2шт.

6

NSS

NOT SOLD SEPARAT

BLOCK - axle bearing, upper

2шт.

7

NSS

NOT SOLD SEPARAT

BLOCK - axle bearing, lower

2шт.

8

26-14160

BOLT,Hex, 7/8" - 9 x 10", Gr 8

- hex, 7/8 NC x 10 inch, grade 8

8шт.

9

492-11088

LOCK WASHER,7/8"

7/8"

8шт.

10

329-1014

NUT,7/8"-9, G8

8шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

12

95735C1

ANCHOR

PLATE - cylinder anchor (8 row)

1шт.

12

147372C2

PLATE

- cylinder anchor (12 row narrow)

1шт.

13

326-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 8

(8 row) Hex, 1"-8 x 3 1/4", G8

2шт.

13

326-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

(12 row narrow) Hex, 1"-8 x 4 1/2", G8

2шт.

14

495-21106

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 5/32 inch (12 row narrow)

2шт.

15

492-11100

LOCK WASHER,1"

1"

2шт.

16

329-1016

NUT,1"-8, G8

2шт.

17

147404C1

PIN,12.7mm OD x 83mm L

- clevis, 1/2 x 3-1/4 inch

1шт.

18

1978738C1

HAIR PIN COTTER

3/16"

1шт.

19

97776C1

LOCK ASSY

LOCK - transport (8 row)

1шт.

19

1264414C1

LOCK

- transport (12 row narrow)

1шт.

20

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

1шт.

21

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

3шт.

22

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

23

91279C1

BRACKET

- transport (8 row)

2шт.

24

25924R1

BOLT,Hex, 3/4" - 10 x 9 1/2", Gr 8

- hex, 3/4 NC x 9-1/2 inch, grade 8 (8 row)

4шт.

25

232-41112

NUT,3/4"-10, GC

NUT, LOCK, (8 row) 3/4"-10, GC

4шт.

26

1254284C91

STOP

- cylinder, includes decal (8 row)

1шт.

26

1254285C91

STOP

- cylinder, includes decal (12 row narrow)

1шт.

27

1254230C1

DECAL,Warning To Prevent Personal Injury Cylinder Safety Stops

- Warning, to prevent personal injury (not shown)(See Page 9-337)

1шт.

28

22775R1

PIN

- headed, 3/8 x 2-1/2 inch (8 row)

1шт.

28

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch, grade 2 (12 row narrow)

1шт.

29

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

Выбрано товаров: 35
