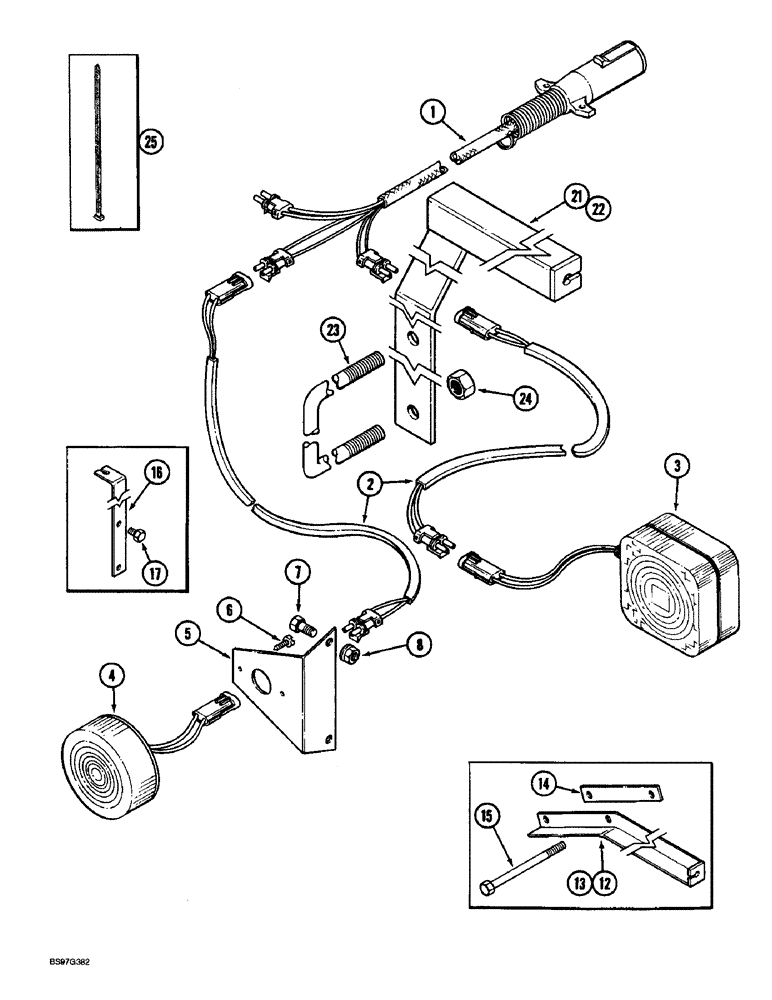

Запчасти Case IH 900 (4-06) - LIGHTING SYS, ALL PLATE MOUNTED EXCEPT 4 ROW ADJUSTABLE & 6 ROW NARROW, ALL PLATE VERTICAL FOLDING (04) - ELECTRICAL SYSTEMS

1

92091C2

HARNESS

- main (6 row wide, 8 row narrow and all vertical - 8 row narrow with endwise transport)

1шт.

1

92093C2

HARNESS

- main (6 row wide with endwise transport)

1шт.

2

92094C1

HARNESS

- (Identification label marked "A") (6 row wide and 8 row narrow)

1шт.

2

92095C1

HARNESS

- lamp (Identification label marked "B") (6 row wide and 8 row narrow with endwise transport)

1шт.

2

92096C1

CABLE ASSY.

HARNESS - lamp (Identification label marked “C”) (8 row narrow with endwise transport and all vertical folding)

1шт.

2

92097C1

HARNESS

- lamp (Identification label marked “D”) (6 row wide and 8 row narrow - 8 row wide with endwise transport)

1шт.

2

92098C1

HARNESS

- lamp (Identification label marked "E") (6 and 8 row wide with endwise transport)

2шт.

3

REF

INSTRUCTION

LAMP ASSEMBLY - warning/turn signal (See Page 4-9)

2шт.

4

REF

INSTRUCTION

LAMP ASSEMBLY - tail (See Page 4-9)

1шт.

5

1333942C1

BRACKET

- tail lamp mounting

1шт.

6

280-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - self-tapping, hex washer head, No. 10-16 x 5/8 inch

2шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

231-5146

FLANGE NUT,3/8"-16

2шт.

12

1333936C2

ANGLE

BRACKET - lamp support, left-hand (6 row wide and 8 row narrow)

1шт.

13

1333937C2

ANGLE

BRACKET - lamp support, right-hand (6 row wide and 8 row narrow)

1шт.

14

1333940C1

BAR

SUPPORT - backup (6 row wide and 8 row narrow)

2шт.

15

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 NC x 8-1/2 inch

4шт.

16

1333941C2

BAR

BRACKET - lamp support (Planters with endwise transport)

2шт.

17

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

4шт.

21

1333944C3

BRACKET

- lamp support, left-hand (Vertical folding)

1шт.

22

1333945C3

BRACKET

- lamp support, right-hand (Vertical folding)

1шт.

23

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

2шт.

24

425-1010

NUT,5/8"-11, G5

4шт.

25

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

6шт.
