Запчасти Case IH 900 (9-032) - HITCH, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (09) - CHASSIS/ATTACHMENTS

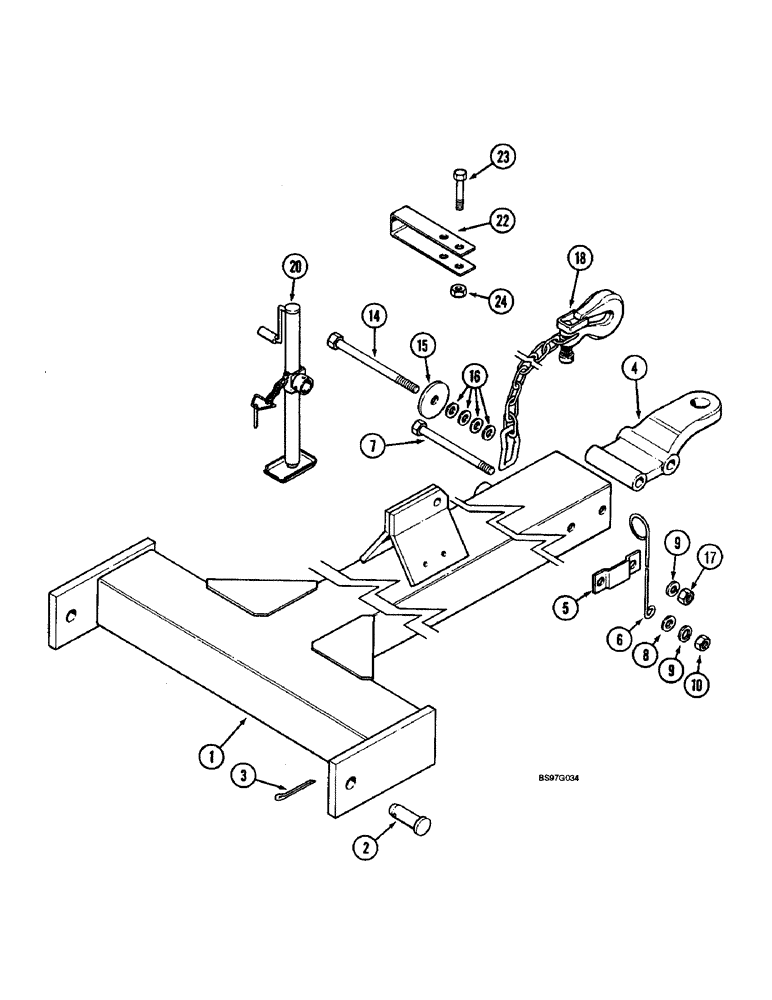

Схема запчастей Case IH 900 - (9-032) - HITCH, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (09) - CHASSIS/ATTACHMENTS
9
14
23
10
3
7
8
6
16
20
5
1
9
24
18
2
4
22
15
17

Артикул

Название

Примечание

Количество

1

1279396C91

HITCH ASSY, TRAILER

HITCH - frame, horizontal folding, includes decals

1шт.

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual, not shown, (See Page 9-337)

1шт.

220447A1

WARNING DECAL

DECAL - Warning, avoid injury, not shown, (See Page 9-337)

1шт.

2

427-20375

CLEVIS PIN,31.75mm OD x 95.25mm L

PIN - clevis, 1-1/4 x 3-3/4 inch, hardened

2шт.

3

32-2032

COTTER PIN,5/16" x 2"

PIN, SPLIT (COTTER), 5/16" x 2"

2шт.

4

1277987C2

TOW BAR

TONGUE - hitch

1шт.

5

137098C1

SUPPORT

BRACKET - pump mounting

1шт.

6

1279237C1

SUPPORT

- hose

1шт.

7

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- hex, 3/4 NC x 9 inch

1шт.

8

495-11081

WASHER,3/4", SAE

1шт.

9

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

10

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

14

426-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 8

- hex, 3/4 x 10 inch, grade 8

1шт.

15

1969255C1

WASHER

- flat, 13/16 x 3-1/2 x 3/8 inch

1шт.

16

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

- flat, 13/16 x 1-3/4 x 7/32 inch hardened

4шт.

17

329-1012

NUT,3/4"-10, G8

1шт.

18

63506C3

CHAIN (AG)

CHAIN - hitch, 3/8 link x 59-7/64 inch

1шт.

20

119354C1

JACK

- side crank

1шт.

22

1279163C1

CLEVIS COUPLING

CLEVIS - chain

1шт.

23

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

24

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

Выбрано товаров: 21
