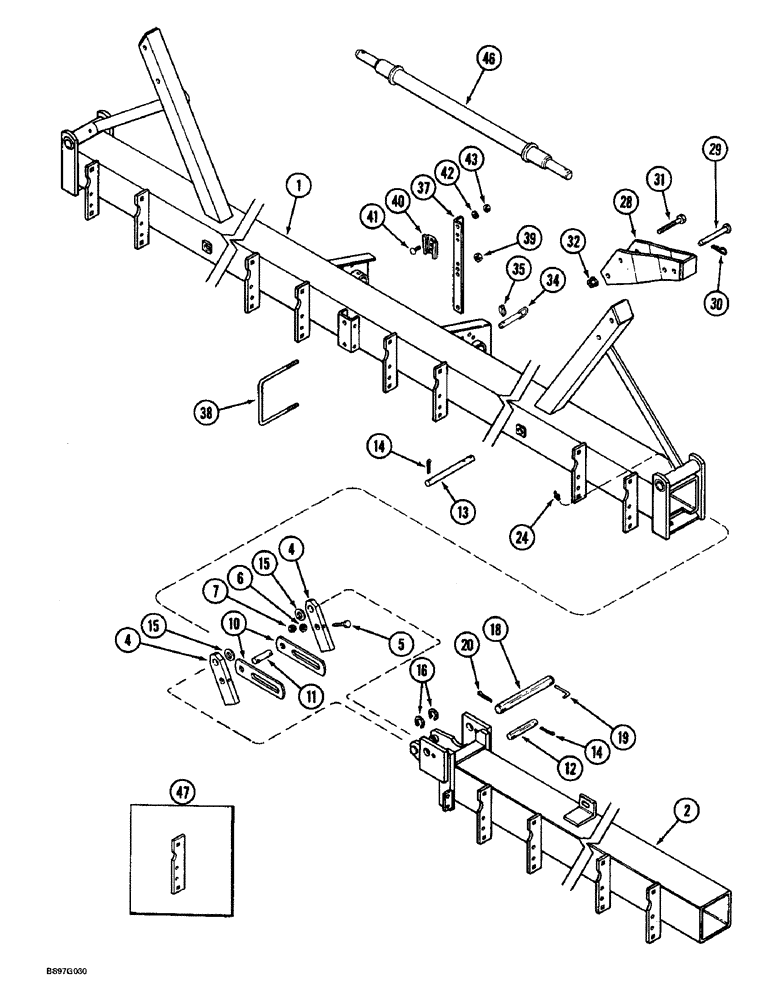

Запчасти Case IH 900 (9-024) - MAIN FRAME AND WING FRAMES, PLATE VERTICAL FOLDING, 12 ROW (09) - CHASSIS/ATTACHMENTS

1

1268097C92

FRAME

- main, includes decal

1шт.

1a

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual (See Page 9-337)

1шт.

2

1279712C1

ASSEMBLY

FRAME - wing, right-hand

1шт.

2

1279711C1

ASSEMBLY

FRAME - wing, left-hand (not shown)

1шт.

4

113473C2

SUPPORT

LATCH - hinge

4шт.

5

326-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 8

- hex, 1/4 NC x 2-3/4 inch, grade 8

4шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

10

113307C1

LINK

- attaching, cylinder

4шт.

11

100324C3

PIN

- 1 x 3-1/2 inch long

2шт.

12

100323C2

PIN

- 1 x 5-7/8 inch long

2шт.

13

125516C1

PIN

- 1 x 10-3/16 inch long

2шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

15

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

4шт.

16

100-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

18

100326C2

PIN

- 1-1/2 x 11-7/8 inch

2шт.

19

491601R3

PIN

- pivot lock

2шт.

20

432-3232

COTTER PIN,1/2" x 2"

Pin, Split (Cotter), 1/2" x 2"

2шт.

24

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 9/16 inch

2шт.

28

145145C1

STOP

- wing

2шт.

29

149571C2

PIN

- headed, 5/8 inch diameter

2шт.

30

1978738C1

HAIR PIN COTTER

3/16"

2шт.

31

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

4шт.

32

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

4шт.

34

113225C1

PIN

- retaining, hitch plate

2шт.

35

A30338

PIN

- lock

2шт.

37

58316C2

SUPPORT

- lamp and SMV emblem

1шт.

38

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

1шт.

39

425-1010

NUT,5/8"-11, G5

2шт.

40

A59457

BRACKET

- mounting, SMV emblem

1шт.

41

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

42

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

43

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

46

137084C1

SPINDLE

- hitch, Category II, spreader (See Page 9-27)

1шт.

46

137083C1

SPINDLE

- hitch, Category III, spreader (See Page 9-27)

1шт.

1345352C1

PACKAGE

KIT - service, attaching plate, includes instructions, no longer available, order item 47

1шт.

47

1250680C1

PLATE

- planter unit attaching

2шт.
