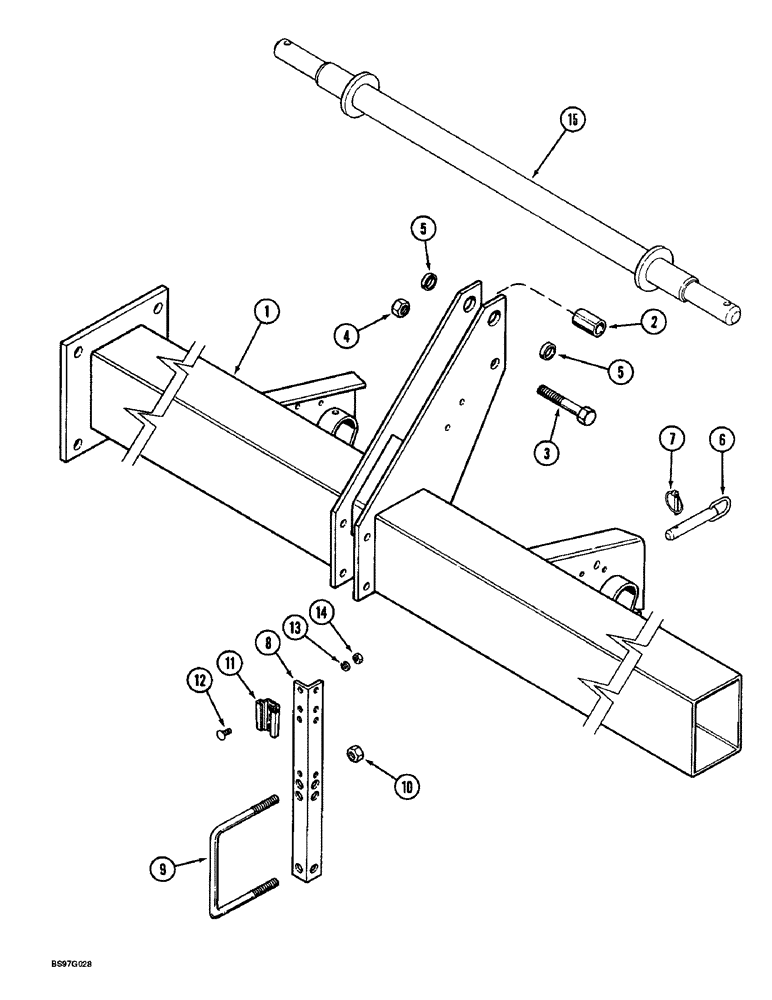

Запчасти Case IH 900 (9-020) - MAIN FRAME, PLATE MOUNTED, ALL ROW SIZES (09) - CHASSIS/ATTACHMENTS

1

96235C1

FRAME

- main, includes decal (4 row adjustable)

1шт.

1

96232C2

FRAME ASSY

FRAME - main, includes decal (6 row narrow)

1шт.

1

1333989C2

FRAME ASSY

FRAME - main, includes decal (6 row wide and 8 row narrow)

1шт.

1

1333991C2

FRAME ASSY

FRAME - main, includes decal (8 row wide)

1шт.

1a

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual (not shown)(See Page 9-337)

1шт.

2

462425R2

SPACER

- mast

1шт.

3

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

4

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

5

97772C1

BUSHING

- mast

2шт.

6

113225C1

PIN

- retaining, hitch plate

2шт.

7

A30338

PIN

- lock

2шт.

8

58316C2

SUPPORT

- lamp and SMV emblem

1шт.

9

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

1шт.

10

425-1010

NUT,5/8"-11, G5

2шт.

11

A59457

BRACKET

- mounting, SMV emblem

1шт.

12

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

15

137084C1

SPINDLE

- hitch, Category II, spreader (4 row adjustable and 6 row narrow)(See Page 9-27)

1шт.

15

137083C1

SPINDLE

- hitch, Category III, spreader (4 row adjustable and 6 row narrow)(See Page 9-27)

1шт.

15

483572R92

SPINDLE

- spreader, Category II, endwise transport (8 row narrow, 6 and 8 row wide)(See Page 9-27)

1шт.

15

57233C1

SPINDLE

- spreader, Category III, endwise transport (8 row narrow, 6 and 8 row wide)(See Page 9-27)

1шт.
