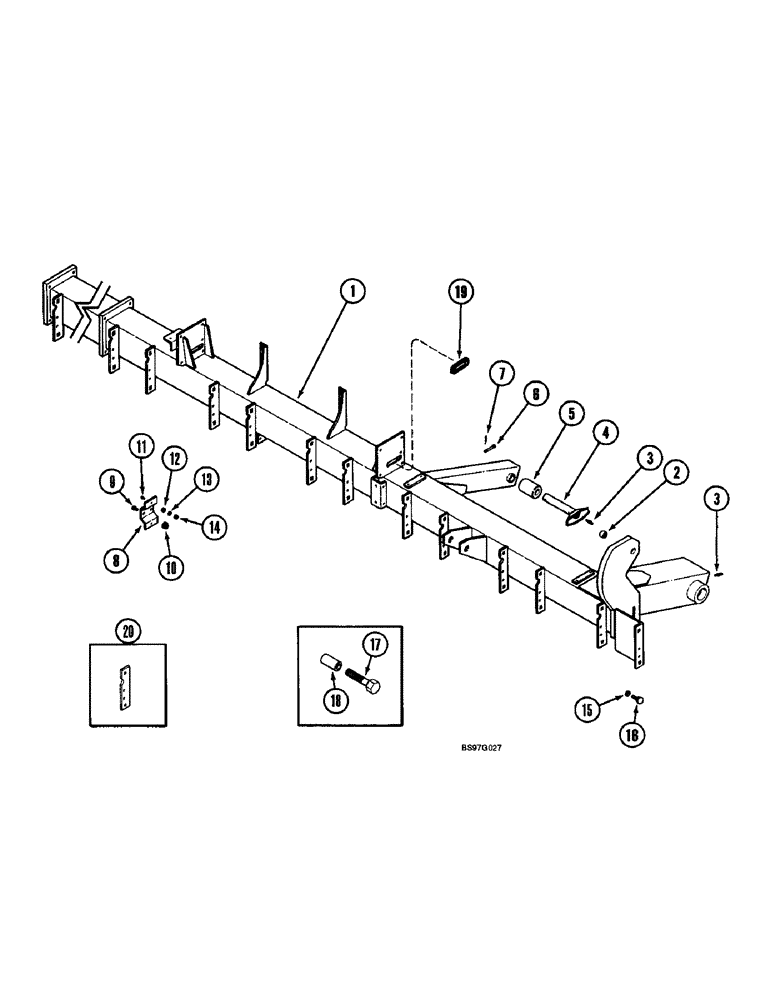

Запчасти Case IH 900 (9-018) - WING FRAMES, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (09) - CHASSIS/ATTACHMENTS

1

96238C1

FRAME

- wing, left-hand, includes decal (12 row narrow)

1шт.

1

96239C1

FRAME

- wing, right-hand, includes decal (12 row narrow)

1шт.

1

96242C1

FRAME

- wing, left-hand, includes decal (16 row narrow)

1шт.

1

96243C1

FRAME

- wing, right-hand, includes decal (16 row narrow)

1шт.

1

96240C1

FRAME

- wing, left-hand, includes decal (12 row wide)

1шт.

1

96241C1

FRAME

- wing, right-hand, includes decal (12 row wide)

1шт.

1a

149366C3

DECAL

- Warning, avoid injury, install the wheel cylinder stops (not shown) (See Page 9-337)

1шт.

2

112886C1

BUSHING

- tension, pivot

1шт.

3

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

4шт.

4

1268047C1

LOCK ASSY

LOCK - latch

2шт.

5

1277817C1

TUBE,38.5 mm ID, 76.2 mm OD

ROLLER - latch

2шт.

6

439-5840

HEADED PIN,1/2" x 2 1/2"

PIN - headed, 1/2 x 2-1/2 inch

2шт.

7

432-1216

COTTER PIN,3/16" x 1"

2шт.

8

1277551C1

BRACKET

- mounting, SMV

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch

2шт.

12

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

2шт.

13

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

225-14210

NUT,#10-32

2шт.

15

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch

8шт.

16

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

8шт.

17

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

18

364002R1

SPACER,3/8" Pipe x 1"

- bolt, 3/8 x 1 inch

4шт.

19

145149C1

GROMMET

- protective, wing frame

4шт.

1345352C1

PACKAGE

KIT - service, attaching plate, includes instructions

1шт.

20

NSS

NOT SOLD SEPARAT

PLATE - planter unit attaching

2шт.
