Запчасти Case IH 900 (4-04) - LIGHTING SYSTEM, ALL CYCLO AIR SEMI-MOUNTED EXCEPT 6 ROW NARROW, ALL CYCLO AIR VERTICAL FOLDING (04) - ELECTRICAL SYSTEMS

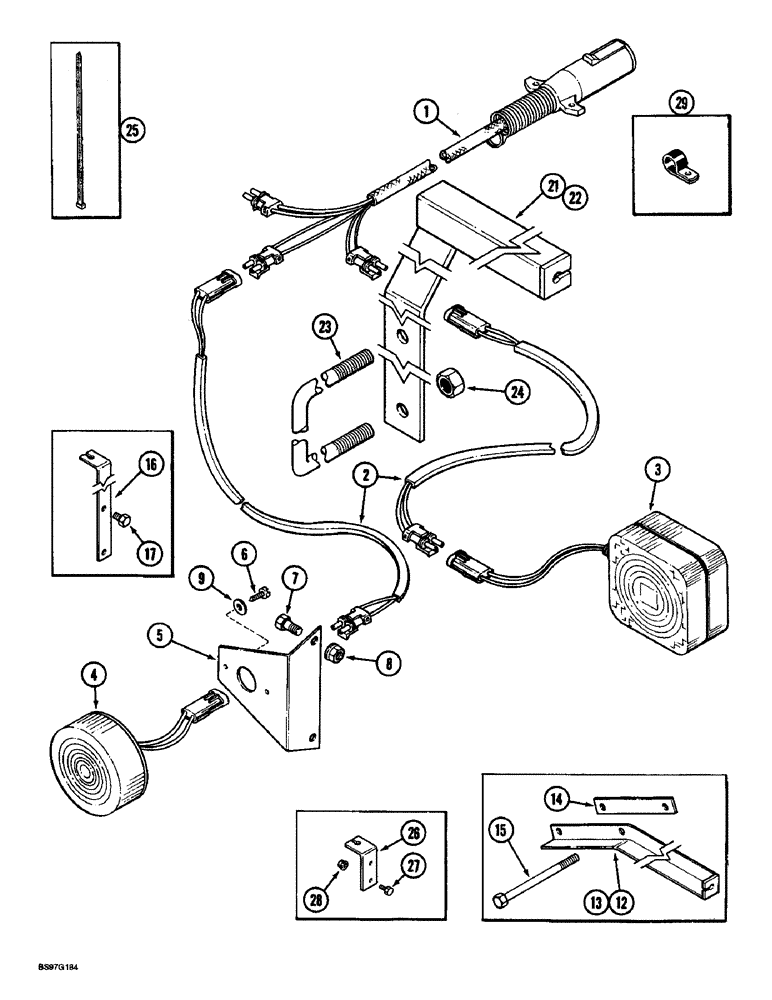

Схема запчастей Case IH 900 - (4-04) - LIGHTING SYSTEM, ALL CYCLO AIR SEMI-MOUNTED EXCEPT 6 ROW NARROW, ALL CYCLO AIR VERTICAL FOLDING (04) - ELECTRICAL SYSTEMS
15
1
16
3
2
25
9
17
22
27
8
29
14
4
6
7
23
13
12
28
24
26
21
5

Артикул

Название

Примечание

Количество

1

92091C2

HARNESS

- main (Planters without endwise transport)

1шт.

1

92093C2

HARNESS

- main (Planters with endwise transport)

1шт.

2

92095C1

HARNESS

- lamp (Identification label marked “B”) (6 row wide and 8 row narrow - 6 row wide and corn/soybean special with endwise transport)

1шт.

2

92096C1

CABLE ASSY.

HARNESS - lamp (Identification label marked “C”) (Corn/soybean special and vertical folding - 6 row wide and 8 row narrow with endwise transport)

1шт.

2

92097C1

HARNESS

- lamp (Identification label marked "D") (6 row wide and 8 row narrow - corn/soybean special with or without endwise transport)

2шт.

2

92098C1

HARNESS

- lamp (Identification label marked "E") (8 row narrow with endwise transport)

1шт.

3

REF

INSTRUCTION

LAMP ASSEMBLY - warning/turn signal (See Page 4-9)

2шт.

4

REF

INSTRUCTION

LAMP ASSEMBLY - tail (See Page 4-9)

1шт.

5

1333942C1

BRACKET

- tail lamp mounting

1шт.

6

280-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - self-tapping, hex washer head, No. 10-16 x 5/8 inch

2шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

231-5146

FLANGE NUT,3/8"-16

2шт.

9

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

12

1333936C2

ANGLE

BRACKET - lamp support, left-hand (6 row wide, 8 row narrow and corn/soybean special)

1шт.

13

1333937C2

ANGLE

BRACKET - lamp support, right-hand (6 row wide, 8 row narrow and corn/soybean special)

1шт.

14

1333940C1

BAR

SUPPORT - backup (6 row wide, 8 row narrow and corn/soybean special)

1шт.

15

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

4шт.

16

1333941C2

BAR

BRACKET - lamp support (Planters with endwise transport)

2шт.

17

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

4шт.

21

1333944C3

BRACKET

- lamp support, left-hand (Vertical folding)

1шт.

22

1333945C3

BRACKET

- lamp support, right-hand (Vertical folding)

1шт.

23

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

2шт.

24

425-1010

NUT,5/8"-11, G5

4шт.

25

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

6шт.

26

1333943C2

BAR

BRACKET - lamp support (Planters with endwise transport)

1шт.

27

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

29

384557R1

CLIP

CLAMP - P-type

2шт.

Выбрано товаров: 28
