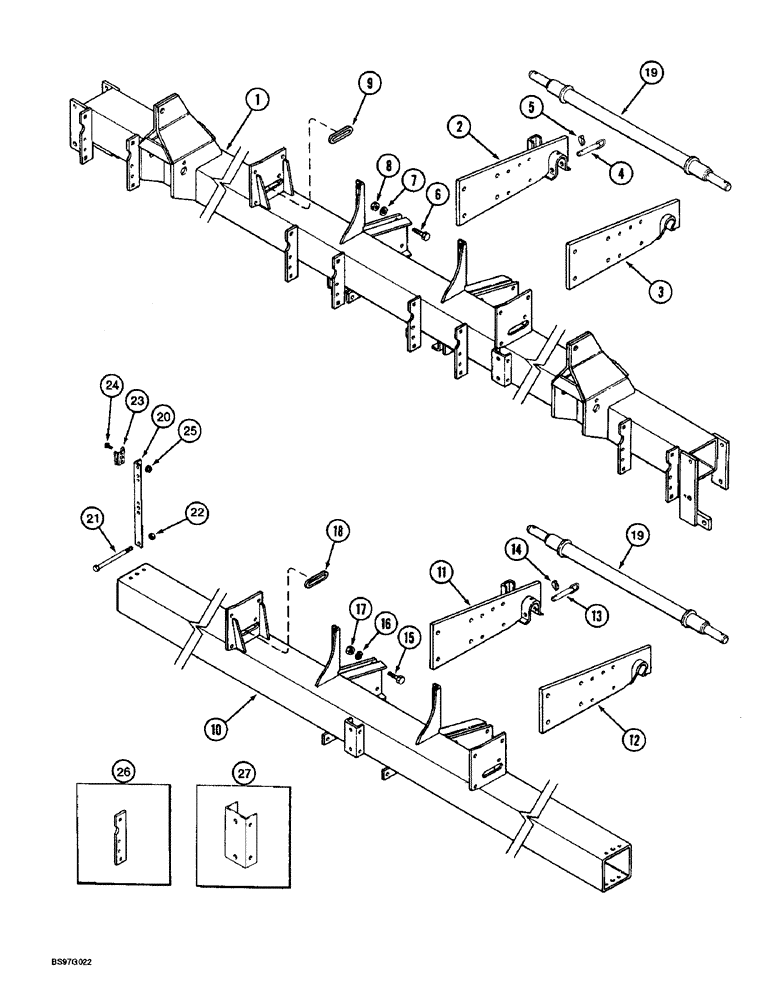

Запчасти Case IH 900 (9-006) - MAIN FRAME, CYCLO AIR SEMI-MOUNTED, 8 ROW NARROW AND 6 ROW (09) - CHASSIS/ATTACHMENTS

1

96229C1

FRAME

- main (6 row narrow)

1шт.

1a

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual (not shown)(See Page 9-337)

1шт.

1b

100735A1

FRAME

- main, special (6 row narrow) not shown

1шт.

2

1264336C1

PLATE

- hitch, left-hand

1шт.

3

1264337C1

PLATE

- hitch, right-hand

1шт.

4

113225C1

PIN

- retaining, hitch plate

2шт.

5

A30338

PIN

- lock

2шт.

6

326-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

8шт.

7

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

8

329-1012

NUT,3/4"-10, G8

6шт.

9

145149C1

GROMMET

- protective, main frame

2шт.

10

1268144C91

FRAME

- main (6 row wide)

1шт.

10

1268145C92

FRAME

- main (8 row narrow)

1шт.

10a

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual (not shown) (See Page 9-337)

1шт.

11

1264336C1

PLATE

- hitch, left-hand

1шт.

12

1264337C1

PLATE

- hitch, right-hand

1шт.

13

113225C1

PIN

- retaining, hitch plate

2шт.

14

A30338

PIN

- lock

2шт.

15

326-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

6шт.

16

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

17

329-1012

NUT,3/4"-10, G8

8шт.

18

145149C1

GROMMET

- protective, main frame

2шт.

19

137084C1

SPINDLE

- hitch, Category II, spreader (6 row narrow)(See Page 9-27)

1шт.

19

137083C1

SPINDLE

- hitch, Category III, spreader (6 row narrow)(See Page 9-27)

1шт.

19

483572R92

SPINDLE

- spreader, Category II (8 row narrow and 6 row wide)(See Page 9-27)

1шт.

19

57233C1

SPINDLE

- spreader, Category III, endwise transport (8 row narrow and 6 row wide)(See Page 9-27)

1шт.

20

58316C2

SUPPORT

- lamp and SMV emblem

1шт.

Ref. 20 thru 25 are used on 8 row narrow and 6 row wide planter equipped with endwise transport attachment.

1шт.

21

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 NC x 8-1/2 inch

2шт.

Ref. 20 thru 25 are used on 8 row narrow and 6 row wide planter equipped with endwise transport attachment.

1шт.

22

425-1010

NUT,5/8"-11, G5

2шт.

Ref. 20 thru 25 are used on 8 row narrow and 6 row wide planter equipped with endwise transport attachment.

1шт.

23

A59457

BRACKET

- mounting

1шт.

Ref. 20 thru 25 are used on 8 row narrow and 6 row wide planter equipped with endwise transport attachment.

1шт.

24

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

Ref. 20 thru 25 are used on 8 row narrow and 6 row wide planter equipped with endwise transport attachment.

1шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

Ref. 20 thru 25 are used on 8 row narrow and 6 row wide planter equipped with endwise transport attachment.

1шт.

1345352C1

PACKAGE

KIT - service, attaching plate, includes instructions, no longer available, order item 26

1шт.

26

1250680C1

PLATE

- planter unit attaching

2шт.

27

137220C1

SUPPORT

- bracket

1шт.
