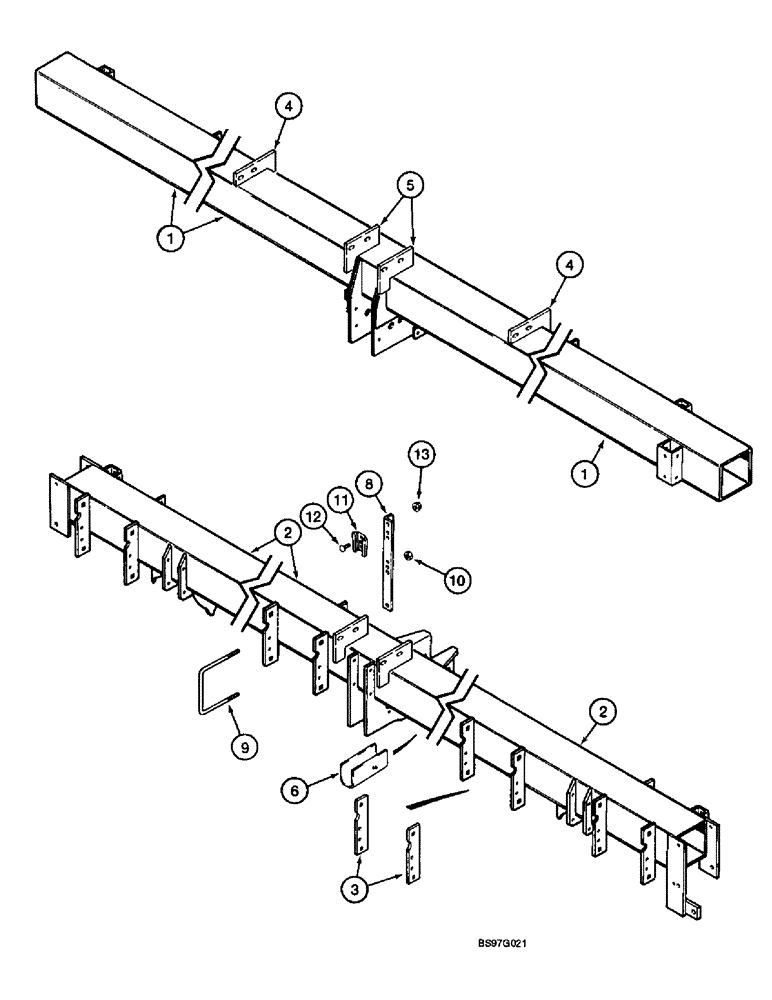

Запчасти Case IH 900 (9-005A) - MAIN FRAME, CYCLO AIR TRAILING, 4, 6, 8 ROW, & 12 ROW NARROW (09) - CHASSIS/ATTACHMENTS

1

1547000C1

FRAME

- main, 4 row narrow

1шт.

1

1547002C1

FRAME

- main, 6 row narrow (Shown)

1шт.

1

1547004C1

FRAME

- main, 8 row narrow

1шт.

1

1547006C1

FRAME

- main, 12 row narrow

1шт.

2

1547001C1

FRAME

- main, 4 row wide

1шт.

2

1547003C1

FRAME

- main, 6 row wide (Shown)

1шт.

2

1547005C1

FRAME

- main, 8 row wide

1шт.

1345352C1

PACKAGE

KIT - service, attaching plate, includes instructions, no longer available, order item 3

1шт.

3

1250680C1

PLATE

- unit attaching, weld on

2шт.

4

102730A1

BRACKET

- module mounting

2шт.

5

102731A1

BRACKET

- module mounting, center

2шт.

6

1995909C1

CHANNEL

BRACKET - step arm

2шт.

8

58316C2

SUPPORT

- lamp and SMV emblem, lamp (See Note)

1шт.

9

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

1шт.

10

425-1010

NUT,5/8"-11, G5

2шт.

11

A59457

BRACKET

- mounting

1шт.

12

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, grade 2

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.
