Запчасти Case IH 900 (9-004) - MAIN FRAME, CYCLO AIR TRAILING, ALL ROW SIZES (09) - CHASSIS/ATTACHMENTS

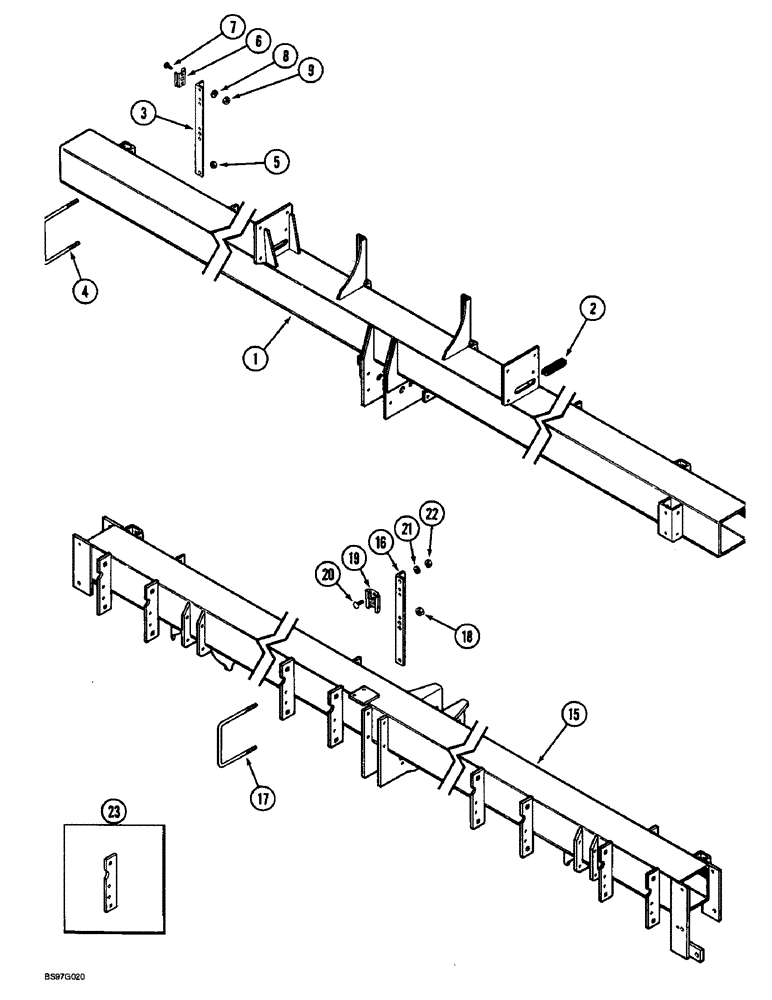

Схема запчастей Case IH 900 - (9-004) - MAIN FRAME, CYCLO AIR TRAILING, ALL ROW SIZES (09) - CHASSIS/ATTACHMENTS
15
17
6
5
3
18
4
16
9
22
8
7
23
1
20
2
19
21

Артикул

Название

Примечание

Количество

1

90800C2

FUNNEL

FRAME - main (4 row narrow)

1шт.

1

90315C2

FUNNEL

FRAME - main (4 row wide)

1шт.

1

90317C2

FUNNEL

FRAME - main (6 row narrow)

1шт.

1

90804C4

FUNNEL

FRAME - main (6 row wide) (Shown)

1шт.

1

90805C4

FUNNEL

FRAME - main (8 row narrow)

1шт.

1

90807C3

FUNNEL

FRAME - main (8 row wide)

1шт.

1

90799C2

FUNNEL

FRAME - main (12 row narrow)

1шт.

2

145149C1

GROMMET

- protective (4 required for 12 row narrow)

2-4шт.

3

58316C2

SUPPORT

- lamp and SMV emblem

1шт.

Ref. 3 thru 9 are used on all Cyclo Air trailing planters equipped with endwise transport attachment.

1шт.

4

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

1шт.

Ref. 3 thru 9 are used on all Cyclo Air trailing planters equipped with endwise transport attachment.

1шт.

5

425-1010

NUT,5/8"-11, G5

2шт.

Ref. 3 thru 9 are used on all Cyclo Air trailing planters equipped with endwise transport attachment.

1шт.

6

A59457

BRACKET

- mounting

1шт.

Ref. 3 thru 9 are used on all Cyclo Air trailing planters equipped with endwise transport attachment.

1шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

Ref. 3 thru 9 are used on all Cyclo Air trailing planters equipped with endwise transport attachment.

1шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Ref. 3 thru 9 are used on all Cyclo Air trailing planters equipped with endwise transport attachment.

1шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

Ref. 3 thru 9 are used on all Cyclo Air trailing planters equipped with endwise transport attachment.

1шт.

15

90801C2

FUNNEL

FRAME - main (4 row narrow), plate trailing - all row sizes

1шт.

15

90802C2

FUNNEL

FRAME - main (4 row wide), plate trailing - all row sizes

1шт.

15

90803C2

FUNNEL

FRAME - main (6 row narrow) (Shown), plate trailing - all row sizes

1шт.

15

90806C4

FUNNEL

FRAME - main (8 row narrow), plate trailing - all row sizes

1шт.

16

58316C2

SUPPORT

- lamp and SMV emblem, plate trailing - all row sizes

1шт.

17

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch, plate trailing - all row sizes

1шт.

18

425-1010

NUT,5/8"-11, G5

Plate trailing - all row sizes 5/8"-11, G5

2шт.

19

A59457

BRACKET

- mounting, plate trailing - all row sizes

1шт.

20

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch, Plate trailing - all row sizes

2шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Plate trailing - all row sizes 5/16"

2шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Plate trailing - all row sizes

2шт.

1345352C1

PACKAGE

KIT - service, attaching plate, includes instructions, no longer available, order item 23, trailing - all row sizes

1шт.

23

1250680C1

PLATE

- planter unit attaching, trailing - all row sizes

2шт.

Выбрано товаров: 35
