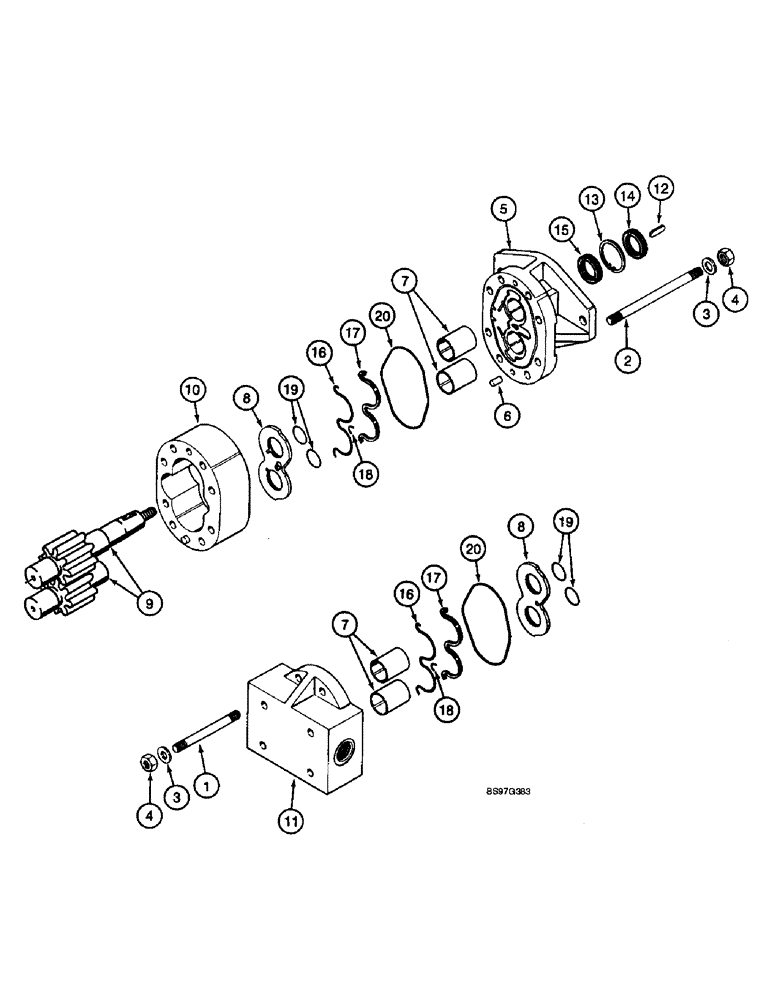

Запчасти Case IH 900 (8-145A) - HYDRAULIC PUMP, 1343578C1, 1000 RPM PTO, 12 ROW NARROW, VERTICAL FOLD 12 & 16 ROW NARROW-FRONTFOLD (08) - HYDRAULICS

1343578C1

PUMP

ASSEMBLY - hydraulic

1шт.

1343578C1R

REMAN-HYD PUMP

900 (1/87-)

1шт.

1343578C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - tie, pump cover and body, short

4шт.

2

NSS

NOT SOLD SEPARAT

BOLT - tie, pump cover and body, long

4шт.

3

NSS

NOT SOLD SEPARAT

WASHER - flat, tie bolt

16шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex, tie bolt

16шт.

5

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

6

NSS

NOT SOLD SEPARAT

PIN - dowell, cover

2шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - pump

4шт.

8

NSS

NOT SOLD SEPARAT

PLATE - wear, pump

2шт.

9

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT - drive and driven, matched set

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

11

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

12

177192C1

KEY

- shaft

1шт.

1543178C1

SEAL KIT

KIT - seal

1шт.

13

NSS

NOT SOLD SEPARAT

RING - retaining, seal

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - shaft, outer

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - shaft, inner

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - pressure, large

2шт.

17

NSS

NOT SOLD SEPARAT

SPACER - seal

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - pressure, small

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING - wear plate

4шт.

20

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: covers-body

2шт.
