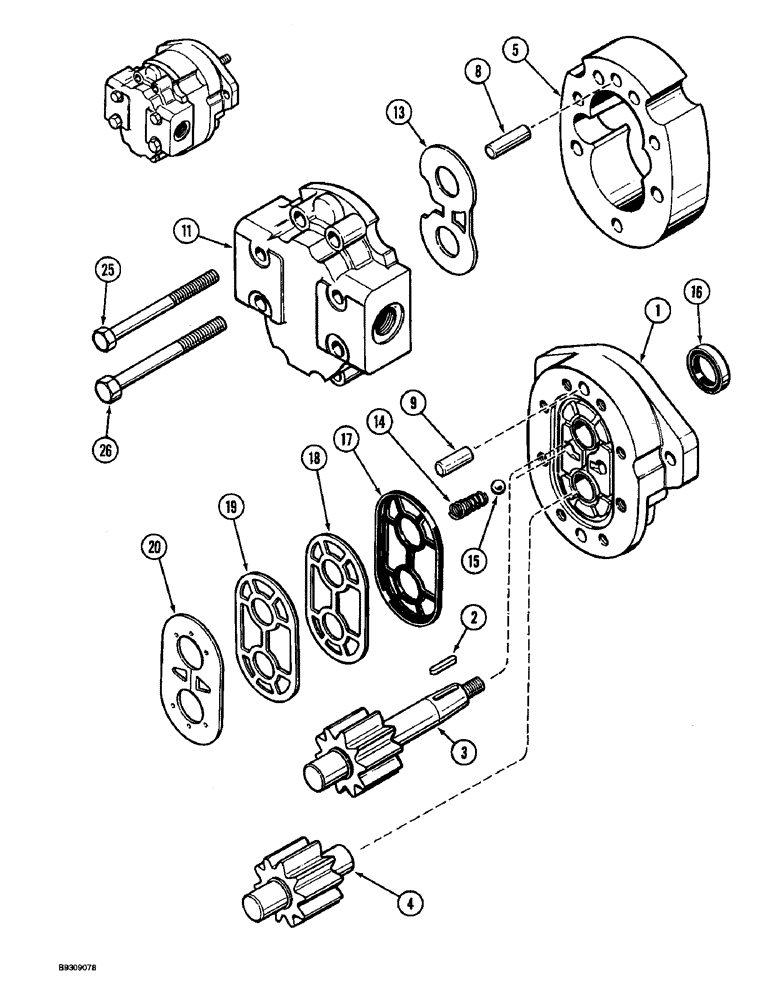

Запчасти Case IH 900 (8-144) - BLOWER HYDRAULIC PUMP, 142482C91, 1OOO RPM PTO (08) - HYDRAULICS

1949282C1

REMAN-HYD PUMP

PUMP ASSEMBLY - hydraulic, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly

1шт.

1949283C1

CORE-HYDRAULIC PUMP

RETURN NUMBER - pump assembly, use this part number to return pump core for credit when using a remanufactured assembly

1шт.

142482C91

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, new, no longer available, order 1343578C1 Pump Assembly, See page 8-145B

1шт.

re it 142482c91 - this is a cessna pump. for sundstand see 1343578C1. ph-cam

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - front

1шт.

2

177192C1

KEY

- shaft, 1/4 x 1-7/32 inch

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT - drive

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - dowel, 1/2 x 1-1/4 inch

2шт.

9

NSS

NOT SOLD SEPARAT

PIN - dowel, 1/2 x 1-1/2 inch

2шт.

11

NSS

NOT SOLD SEPARAT

PLATE - back

1шт.

55295C91

SEAL KIT

KIT - pump, repair

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - thrust

1шт.

14

D31403

SPRING

- check ball

1шт.

15

211-1013

BALL,10.31mm OD, Gr 24

- chrome alloy steel, 13/32 inch, grade 24

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

17

NSS

NOT SOLD SEPARAT

DIAPHRAGM - pump

1шт.

18

NSS

NOT SOLD SEPARAT

GASKET - protector

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - backup

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - diaphragm

1шт.

25

NSS

NOT SOLD SEPARAT

BOLT - hex, 7/16 NC x 4-1/4 inch

4шт.

25

NSS

NOT SOLD SEPARAT

BOLT - hex, 7/16 NC x 5 inch

2шт.

26

NSS

NOT SOLD SEPARAT

BOLT - hex, 1/2 NC x 5 inch

2шт.
