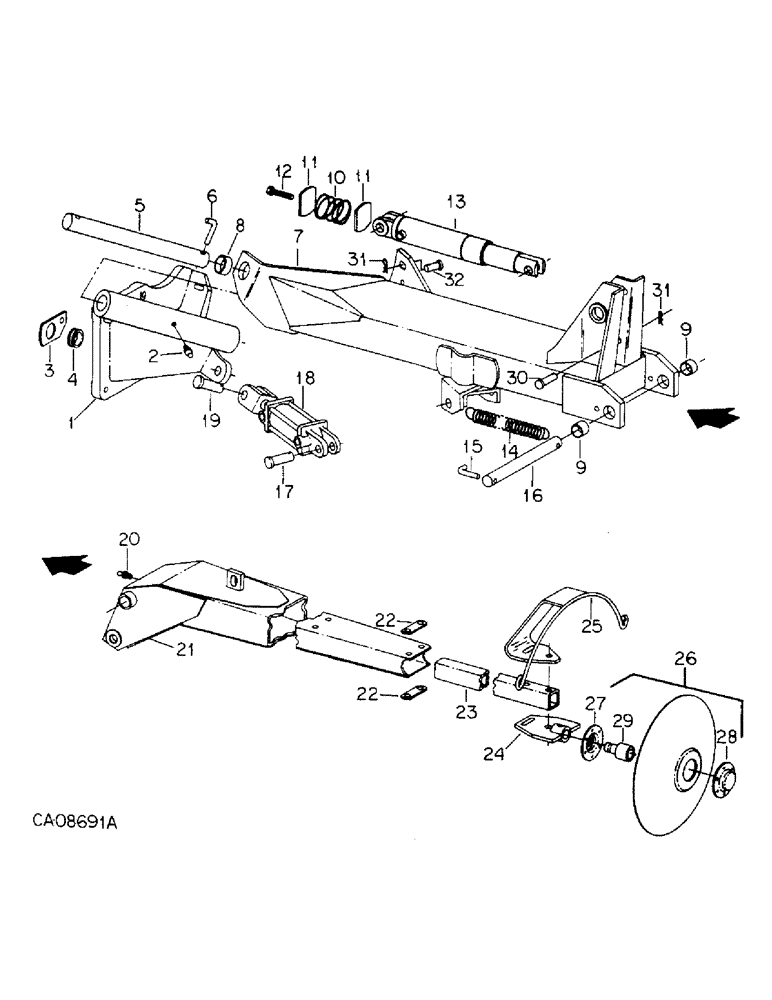

Запчасти Case IH 800 (09-06) - MARKERS, HYDRAULIC MARKER ATTACHMENT, UNIT W, BASIC PARTS (08) - HYDRAULICS

1

1268032C1

BRACKET

mounting LH

1шт.

1

1268033C1

BRACKET

mounting RH

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 x 2-3/4 type 5

6шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 two way hex lock

6шт.

2

16964R91

FITTING

1/4 90D lub

2шт.

3

1268238C1

BAR

hose, strap

2шт.

4

317623R1

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

2шт.

5

1268126C1

ROD

pivot, pin

2шт.

21718R1

WASHER

1.531 x 2.250 x .105

2шт.

23047R1

WASHER

1.531 x 2.500 x .054

2шт.

22947R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

2шт.

6

491601R2

PIN

lock

2шт.

7

1279401C92

TUBE

W/TWO BUSHINGS, 1268053C1, two bushings, 1268054C1 and product graphic, 1254154C1, LH marker

1шт.

7

1279402C92

TUBE ASSY.

TUBE W/TWO BUSHINGS, 1268053C1, two bushings, 1268054C1 and product graphic, 1254154C1, RH marker

1шт.

1254154C1

DECAL,Warning Keep Away Markers Actuate

PRODUCT GRAPHIC, caution

1шт.

8

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

main

4шт.

9

1268053C1

BUSHING,38.1mm ID x 44.45mm OD x 19.05mm L

marker

4шт.

10

NA62682

SPRING

2шт.

11

1268125C1

STOP

spring

4шт.

12

485555R1

BOLT,Hex, 1/2" - 13 x 4 1/4"

1/2-13 x 4-1/4 special

2шт.

27342R1

WASHER

WASHER, .531 x 1.000 x .054

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

13

145622C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 204.7mm Stroke

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, for components see list of parts under details of hyd cylinder

2шт.

23290R1

HEADED PIN,1" x 3 1/2"

PIN, 1 x 3.500 hd type 1

2шт.

24003R1

HEADED PIN

PIN, 1 x 4.250 hd type 1

2шт.

21742R1

WASHER

1.031 x 1.500 x .027

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

14

1277583C1

COIL SPRING

SPRING, marker assist

2шт.

23290R1

HEADED PIN,1" x 3 1/2"

PIN, 1 x 3.500 hd type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

15

471323R1

LINCH PIN

PIN, lock

2шт.

16

1268127C1

PIN,31.7mm OD x 325mm L

outer arm pivot

2шт.

21226R1

WASHER

1.281 x 2.000 x .105

2шт.

608700R1

WASHER

1.281 x 2.000 x .054

2шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), 3/8" x 1 7/8"

2шт.

17

64560C1

HEADED PIN

PIN, headed

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

18

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSY, 2-1/2 x 8 in. double acting hydraulic, for componets see list of parts under details of hydr cylinder

2шт.

19

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN, 1 x 3-1/4 znp clevis, replaces 61571C1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 lub

2шт.

21

1279403C92

ARM ASSY.

ARM W/PRODUCT GRAPHIC, 1254154C1, marker upper

2шт.

1254154C1

DECAL,Warning Keep Away Markers Actuate

PRODUCT GRAPHIC, caution

1шт.

22

1268067C1

BAR

washer

8шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1/2 x 3-3/4 type 5

8шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

8шт.

607895R1

WASHER

.531 x 1.000 x .105

8шт.

23

1268052C2

TUBE,1550 mm Length

marker adjusting

2шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

4шт.

120390

WASHER,1/2"

.562 x 1.375 x .086

8шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

4шт.

24

1277644C1

PLATE

ASSY, adjusting

2шт.

102593

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

SCREW, 3/8 x 1/2 pln c/pt hdl/hs set

2шт.

25

1279232C1

BRACKET

ASSY, guard

2шт.

26

1279235C1

DISC

DISK ASSY, 16 in.

2шт.

27

468009R1

RETAINER

HOUSING, open bearing

2шт.

28

487081R1

COVER

HOUSING, closed bearing

2шт.

104097

RIVET,But Hd, 5/16" x 3/4"

5/16 x 3/4 pln but/hd sol

12шт.

29

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING, ball

2шт.

30

22092R1

PIN

5/8 x 2.750 hd type 1

2шт.

31

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

4шт.

32

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2. hd type 1

2шт.
