(09-03) - MARKERS, MARKER HELPER SPRING ATTACHMENT, UNITS A, B, F, G, Z, AA AND AB

Запчасти Case IH 800 (09-03) - MARKERS, MARKER HELPER SPRING ATTACHMENT, UNITS A, B, F, G, Z, AA AND AB (08) - HYDRAULICS

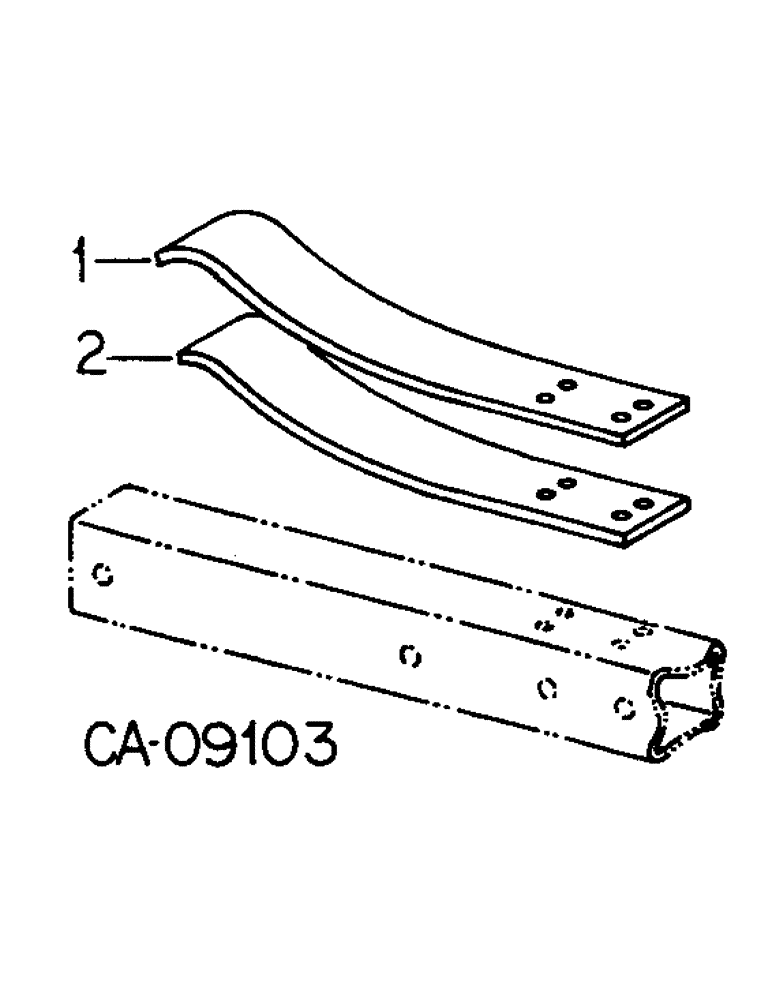

Схема запчастей Case IH 800 - (09-03) - MARKERS, MARKER HELPER SPRING ATTACHMENT, UNITS A, B, F, G, Z, AA AND AB (08) - HYDRAULICS
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1279512C1

SPRING

marker helper, outer

2шт.

2

1279513C1

PLATE

SPRING, marker helper, inner

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.
