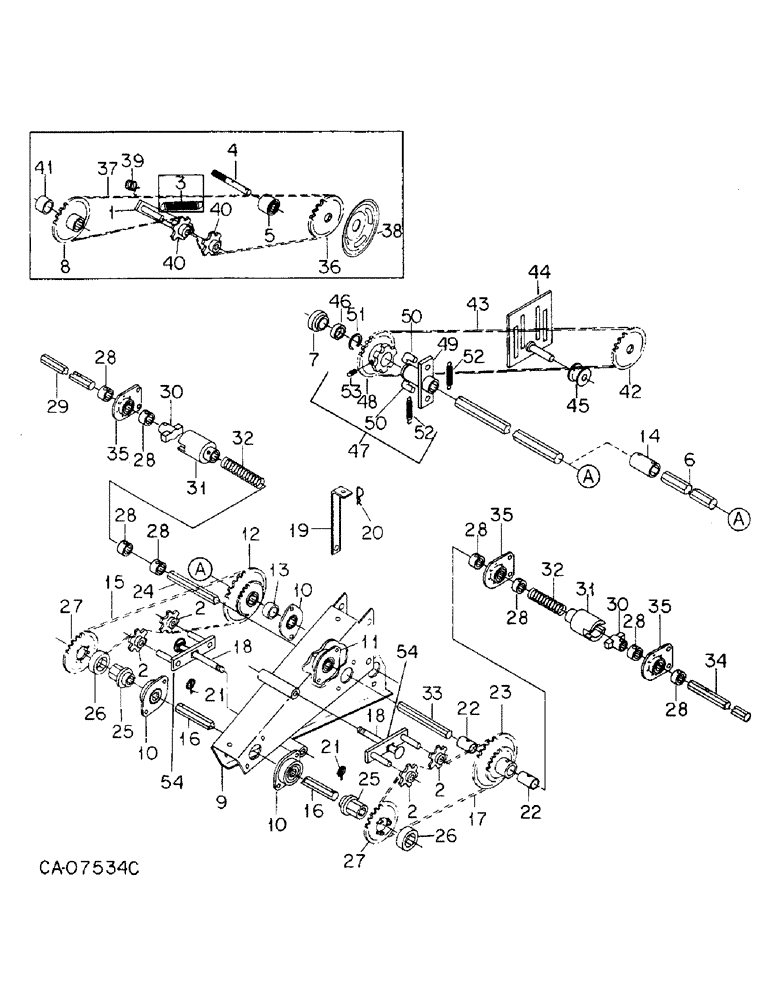

Запчасти Case IH 800 (06-09) - DRIVE, SEED DRIVE, UNITS H, J, K, L, N, P, Q, R, U, V, Z, AA AND AB (06) - POWER TRAIN

1

134313C1

ARM

BAR ASSY, wheel idler, note A, replaces 134144C1

2шт.

Q3500

WASHER

.656 x 1.125 x .067 pln

2шт.

2

472344R3

SPROCKET

idler

6шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

6шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

6шт.

3

351210R1

SPRING

used only w/bar assy, 134144C1

2шт.

4

144811C1

STUD

rod roller, note A

2шт.

120396

WASHER

.531 x 1.062 x .074

4шт.

5

57796C1

ROLLER

note A

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

6

134153C1

BAR

primary drive, units H, P and U

1шт.

6

134152C1

BAR

primary drive, units J, L, Q and V

1шт.

6

1254215C1

BAR

primary drive, unit K

1шт.

6

1254282C1

BAR

primary drive, 2 for unit N

1шт.

6

1250923C3

BAR

primary drive, unit R

1шт.

6

1254282C1

BAR

primary drive, units Z, AA & AB

1шт.

7

134181C91

BALL BEARING,1.218" ID x 2.125" OD x 1"

primary shaft ball

2шт.

8

134130C2

SPROCKET ASSY.

SPROCKET ASSY, drive wheel 27T

2шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

4шт.

9

137203C2

SUPPORT

ASSY, speed change

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

1/2 x 4-1/4 type 5, 2 for units H, J, K, L, N, R, U, V, Z, AA and AB

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5, 2 for units P and Q

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock, 2 for units H, J, K, L, N, R, U, V, Z, AA and AB

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock, 2 for units P and Q

1шт.

10

134158C91

FLANGED BEARING

7/8 hex. bore, 6 for unit R, 3 for units H, J, K, L, N, P, Q, U, V, Z, AA and AB

1шт.

11

134157C91

BALL BEARING,15.88mm ID

2 bolt economount

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12

134147C2

SPROCKET ASSY.

SPROCKET ASSY, primary input

1шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

2шт.

13

144812C1

SPACER

double sprocket

1шт.

14

1254283C1

COUPLING

COUPLER, shaft 7/8 hex, unit N

1шт.

22211R1

SCREW

3/8 x 1/2 znp c/pt sq/hd set

1шт.

15

CHAIN, input speed change, furnish 53 links from bulk roll marked 569088R91 and 1 connecting link 1277927C91 and 1 offset link 457114R91

1шт.

1277927C91

LINK

connecting

1шт.

457114R91

CHAIN LINK

LINK, #2040 double pitch offset

1шт.

16

134142C1

BAR

secondary short

1шт.

17

CHAIN, output speed change, use 43 links from bulk roll marked 569088R91 and 1 connecting link 1277927C91

1шт.

1277927C91

LINK

connecting

1шт.

18

28657R1

CARRIAGE BOLT,Spcl, Sq Nk, 1/2" - 13 x 5 1/2", Gr 5, LH Thd

BOLT, 1/2-13 x 5-1/2 LH thread square neck carriage zinc plated type 5

2шт.

18277R1

SPECIAL NUT,1/2"-13, G5, LH

1/2 pln lht type 5

2шт.

19

141781C1

BRACKET

storage, following hardware is for unit J only

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20

591107R1

COTTER PIN

3/16 quick attachable cot.

1шт.

21

373025R91

PIN ASSY.

PIN, quick attachable snap

2шт.

22

137204C2

SPACER

BUSHING, shear pin

2шт.

23

134148C1

SPROCKET ASSY.

SPROCKET ASSY, final output

1шт.

24

140934C2

BAR

center output LH, units H and P

1шт.

24

141504C2

BAR

center LH, units J and Q

1шт.

24

137213C1

BAR

output LH, units L and Z

1шт.

24

137212C1

BAR

output LH, units K and U

1шт.

24

137215C1

BAR

output LH, unit N

1шт.

24

1250924C2

BAR

output LH, 5/8 hex. x 248-13/16 in. long, unit R

1шт.

24

1279455C1

SHAFT

BAR, 5/8 hex x 144.29 in. output LH, unit V

1шт.

24

134151C1

BAR

5/8 hex x 69.49 in. output LH, unit AA

1шт.

24

1279459C1

BAR

5/8 hex x 84.06 in. output LH, unit AB

1шт.

25

140931C1

HUB

sprocket

2шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

26

140932C1

SPACER

sprocket

2шт.

614451R1

WASHER

1.031 x 1.750 x .105

2шт.

27

134235C1

SPROCKET ASSY.

SPROCKET, hex. bore 20T

1шт.

27

134236C1

SPROCKET ASSY.

SPROCKET, hex. bore 22T

1шт.

27

134237C1

SPROCKET ASSY.

SPROCKET, hex. bore 24T

1шт.

27

134238C1

SPROCKET ASSY.

SPROCKET, hex. bore 28T

1шт.

27

134239C1

SPROCKET ASSY.

SPROCKET, hex. bore 30T

1шт.

27

134240C1

SPROCKET ASSY.

SPROCKET, hex. bore 32T

1шт.

27

134241C1

SPROCKET ASSY.

SPROCKET, hex. bore 34T

1шт.

27

134242C1

SPROCKET ASSY.

SPROCKET, hex. bore 36T

1шт.

28

147338C1

SPACER

collar locking, 2 for units K, L, N, R, U, V, Z, AA and AB, 8 for units H, J, P and Q

1шт.

22211R1

SCREW

3/8 x 1/2 zpt c/pt sq/hd set

1шт.

29

140936C2

BAR

wing LH, units H and P

1шт.

29

141502C2

BAR

wing LH, units J and Q

1шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

1шт.

30

137241C4

BLOCK DRIVER

DRIVER, wing connecting, 2 for units H, J, P and Q

1шт.

Item 30- This driver subs to C5 version. The C5 driver does not have the rollpin hole to attach to the hex shaft like the C4 version.

1шт.

31

137240C3

SOCKET

HUB, socket drive connecting, 2 for units H, J, P and Q

1шт.

271432

LUBE NIPPLE,1/4" x .47 lg, Drive

FITTING, 1/4 hole less ball check lub

4шт.

32

141863C1

SPRING

4 for units H, J, P and Q

1шт.

495-21081

WASHER,3/4"

.812 x 2.000 x .122

8шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

2шт.

21072R1

PIN,3/16" x 1", Coiled

2шт.

33

140935C2

BAR

center output RH, units H and P

1шт.

33

141505C3

BAR

center RH, units J and Q

1шт.

33

137211C1

BAR

output RH, unit L

1шт.

33

137210C1

BAR

output RH, units K and U

1шт.

33

137214C1

BAR

output RH, unit N

1шт.

33

134151C1

BAR

5/8 hex x 69.49 in. output RH, units V and AB

1шт.

33

141452C1

BAR

5/8 hex x 37.48 in. output RH, unit Z

1шт.

33

1279555C1

BAR

5/8 hex x 52.17 in. output RH, unit AA

1шт.

34

140937C2

BAR

wing RH, units H and P

1шт.

34

141502C2

BAR

wing RH, units J and Q

1шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

1шт.

35

141242C91

BEARING,16mm ID

hanger, 3 for units H, J, P, Q, U and V

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

6шт.

36

134131C2

SPROCKET ASSY.

SPROCKET, drive wheel, 14T, note A

2шт.

37

CHAIN, primary wheel drive, 1 inch, note A, furnish 57 links from bulk roll marked 569088R91 and 1 connecting link 1277927C91

1шт.

1277927C91

LINK

connecting

1шт.

38

1264306C1

FLANGE

sprocket, note A

2шт.

39

137164C1

SPRING

wheel idler RH, note A

1шт.

39

1264310C1

SPRING

wheel idler LH, note A

1шт.

40

472344R3

SPROCKET

idler, note A

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

41

144812C1

SPACER

double sprocket, note A

2шт.

22192R1

WASHER

1.031 x 1.375 x .054

2шт.

42

1277736C1

SPROCKET

drive wheel, 12 tooth, notes B and C

2шт.

43

CHAIN, primary wheel drive, 1-1/4 inch, notes B and C, furnish 45 links from bulk roll marked, 569089C91 and one connecting link, 1277928C91

2шт.

1277928C91

LINK

connecting

1шт.

44

1279011C2

LARGE PLATE

PLATE ASSY, wheel drive idler, notes B and C

2шт.

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

BOLT, 1/2 x 2-3/4 crg type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

45

1277726C1

ROLLER,48mm OD x 34mm L

idler, notes B and C

2шт.

22198R1

WASHER

.656 x 1.125 x .042

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

46

1277812C1

SPACER

1.062 ID x .35 long, notes B and C

2шт.

47

1277925C91

RATCHET

ASSY, LH 23T, notes B and C

1шт.

47

1277926C91

PINION

RATCHET ASSY, RH 23T, notes B and C

1шт.

48

1277993C1

SPROCKET ASSY.

SPROCKET, 23T, notes B, C and D

2шт.

49

1279873C1

BAR ASSY.

COUPLER, ratchet, notes B, C and D, replaces 1277992C1

2шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

4шт.

50

1277994C1

PIN,11.11mm OD

L-PIN, Notes B, C and D

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

51

152450R1

SNAP RING,#125, Ext

RING, 1.156 ext ret, notes B, C and D

2шт.

52

1277995C1

SPRING

notes B, C and D

4шт.

53

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 hole hub, notes B, C and D

4шт.

54

90505C1

BAR

ASSY, speed change idler, replaces 140928C2 by also ordering bolt, 28657R1

2шт.

1277991C91

PACKAGE

seed drive conversion, note A, consists of ref nos 42 through 53 and attaching hardware

1шт.

The C5 version is the 900 series design which does not have the rolpin hole. Refer to S-4394 to update 800 planter to 900 series planter. CR TSG 4/01/99.

1шт.
