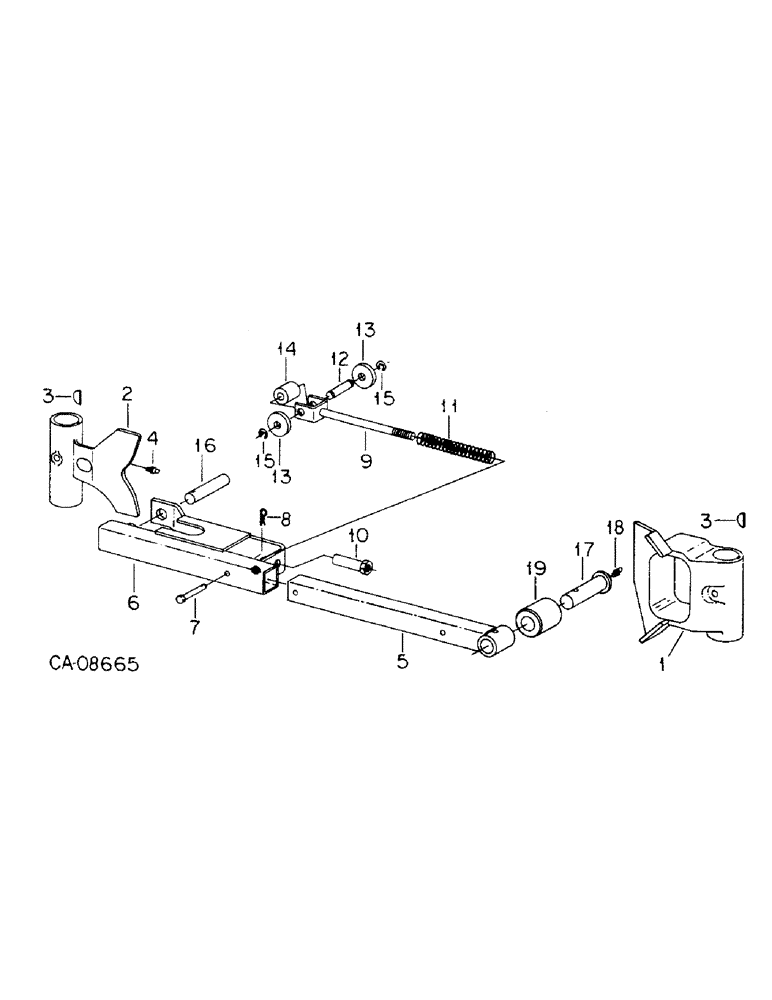

Запчасти Case IH 800 (05-62) - WHEELS, HOBBLE UNIT, FOR OUTBOARD WHEELS, UNITS W, X AND Y (06) - POWER TRAIN

1

1254549C3

LATCH

ramp

1шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 type 5

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock

1шт.

2

1254494C2

BRACKET

hobble

1шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 type 5

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock

1шт.

3

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

4

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4 45D lub

1шт.

5

1254503C2

TUBE,625 mm Length

ASSY, inner hobble

1шт.

21899R1

HEADED PIN

PIN, 1/2 x 2.500 type 5 hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

6

1277929C2

TUBE

ASSY, outer

1шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

1шт.

7

147404C1

PIN,12.7mm OD x 83mm L

pointed

1шт.

8

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

1шт.

9

1277934C1

BRACKET

ASSY, guide

1шт.

606546R1

JAM NUT

5/8 hex jam

1шт.

10

1279041C1

SLEEVE

guide

1шт.

11

1264168C1

SPRING

hobble

1шт.

12

1277937C1

SHAFT

roller

1шт.

13

1277938C1

SPACER

roller

2шт.

14

1277939C1

TUBE,19.5 mm ID, 44.45 mm OD

roller

1шт.

15

603570R1

SNAP RING,#75, .574" Dia, E-Type

Ring, Retaining, #75, .574" Dia, E-Type

2шт.

16

1277933C1

SHAFT

pivot

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

17

1268141C1

PIN ASSY.

PIN ASSY, guide roller

1шт.

18

16982R91

FITTING

1/4 lub

1шт.

19

141608C1

TUBE,38.5 mm ID, 3" OD, 76 mm Length

roller

1шт.
